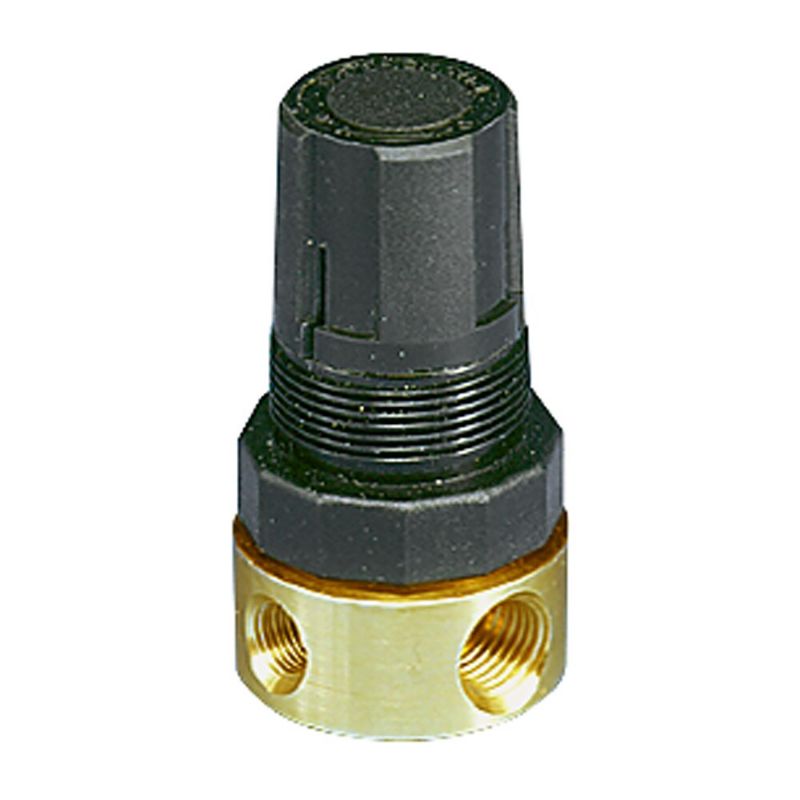

Parker 134-02AAP - Relief Valves - 134 Series

134 series is a diaphragm type relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 134-02AAP

$42.25

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Pneumatic Division
Body Material	Brass	Adjustment Mechanism	Polypropylene Push-Pull Locking Knob
Operating Temperature	+4° to +49° °C	Pressure Relief Setting	0 to 100 psig
Adjustment Screw Material	Zinc Plated Steel Adjusting Screw and Spring	Maximum Inlet Pressure Rating	20.7 barg
Port Size	Inlet Port 1/8" and 1/4", Outlet Port 1/4"	Port Type	3 Female Inlet Ports, and 1 outlet port<br>NPT │ BSPP
Available Accessories	With panel mount nut	Pressure Relief Setting (psig)	0-15
