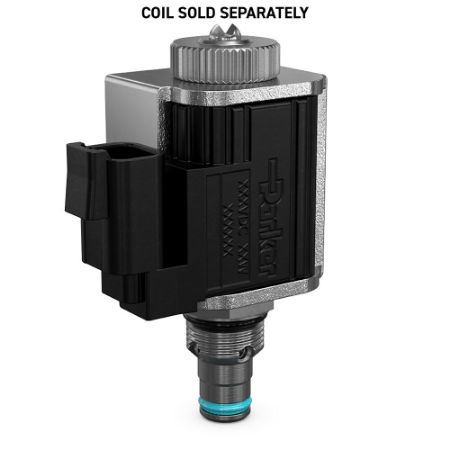

Pressure Relieving Proportional Valve
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker’s family of proportional pressure relieving valves provide the operator predictable performance for applications that require dynamic pressure limitation. These valves are capable of handling flows up to 95 lpm (25 gpm) and pressures as high as 350 bar (5000 psi). Parker’s proportional pressure relieving valves are ideal for piloting larger valves or can even functions as a stand-alone pressure control valve. Parker’s proportional pressure relieving valves can be paired with any Current Controlled Pulse Width Modulation (PWM) valve driver, and the simple and compact design enables these valves to be used on a variety of equipment within the mobile, industrial, or manufacturing markets.
Markets:
• Aerial
• Construction
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Direct acting poppet or spool type design
• Proportional to solenoid input current
• One piece cartridge housing
• Non-magnetic spool and housing assembly
Applications:
• Piloting larger valves
• Pressure controls
• Applications sensitive to over-pressurization
Additional Technical Insight:
Recommended to be used with a Current Controlled Pulse Width Modulation (PWM) valve driver.
Read More...Markets:
• Aerial
• Construction
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Direct acting poppet or spool type design
• Proportional to solenoid input current
• One piece cartridge housing
• Non-magnetic spool and housing assembly
Applications:
• Piloting larger valves
• Pressure controls
• Applications sensitive to over-pressurization
Additional Technical Insight:
Recommended to be used with a Current Controlled Pulse Width Modulation (PWM) valve driver.
| Action | Part No. | Availability | Partner Available | Price | UOM | Maximum Flow Rate | Minimum Operating Temperature | Division | Operation Type | Operating Temperature | Flow Rate | Installation Torque | Seal Material | Actuation Type | Coil Nut Tightening Torque | Power Consumption | Weight | Valve Material | Flow Direction | Maximum Operating Pressure | Filter Efficiency Rating | Maximum Kinematic Viscosity | Maximum Pressure Setting | Maximum Inlet Pressure Rating | Configuration | Frequency | Cracking Pressure | Function | Division | Pressure Control Range | Hysteresis | Cavity Size | For Fluid Type | Coil Type | Maximum Operating Temperature | Leak Rate | Body Material | Maximum Relief Pressure | Mounting Type | Flow Rate | Configuration | Seal Material | Maximum Relief Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AP02B2YP21C | 1 Limited Stock | Quote Required | $117.50/each | EA | 5.3 L/min | -35 °F | Hydraulic Systems Division | Solenoid Operated | -37 to 93 °C | 1.4 Gal/min | 30 Nm | D-Ring (Standard) | Electrical | 4.1 Nm | 19 W | 0.14 lb | Hardened Steel | Nose to Side (1-2) | 3000 psi | ISO 4406 18/16/13 | 45-2000 SSU (6 to 420 cSt) | n/a | 5000 psi | Increasing Pressure/Increasing Current | 100 to 400 Hz | 0.21 bar | Proportional Pressure Relief | Hydraulic Cartridge Systems Division | n/a | 5 % | C08-2 | Synthetic Hydraulic Fluids | 1/2" Super Coil High Watt (CCP) | 93 °C | 30 | n/a | 210 bar | Screw-in Cartridge | 0.8 GAL/MIN, 3 L/MIN | Increasing Pressure/Increasing Current | D-Ring (Standard) | 3000 PSI, 210 BAR | |
| AP02B2YP21CN | Quote Required | 1 Limited Stock | $159.58/each | EA | 5.3 L/min | -34 °C | Hydraulic Systems Division | Solenoid Operated | -34 to 121 °C | 1.4 Gal/min | 22 lb-ft | Nitrile | Electrical | 3 lb-ft | 19 W | 0.06 kg | Hardened Steel | Nose to Side (1-2) | 3000 psi | ISO 4406 18/16/13 | 45-2000 SSU (6 to 420 cSt) | n/a | 350 bar | Increasing Pressure/Increasing Current | 100 to 400 Hz | 0.21 bar | Proportional Pressure Relief | Hydraulic Cartridge Systems Division | n/a | 5 % | C08-2 | Mineral-based Hydraulic Fluids | 1/2" Super Coil High Watt (CCP) | 250 °F | 30 | n/a | 3000 psi | Screw-in Cartridge | 0.8 GAL/MIN, 3 L/MIN | Increasing Pressure/Increasing Current | Nitrile | 3000 PSI, 210 BAR | |
| AP02B2YP35C | Quote Required | $117.50/each | EA | 5.3 L/min | -37 °C | Hydraulic Systems Division | Solenoid Operated | -35 to 200 °F | 5.3 L/min | 30 Nm | D-Ring (Standard) | Electrical | 4.1 Nm | 19 W | 0.06 kg | Steel | Nose to Side (1-2) | 350 bar | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | n/a | 350 bar | Increasing Pressure/Increasing Current | 100 to 400 Hz | 0.35 bar | Proportional Pressure Relief | Hydraulic Cartridge Systems Division | n/a | 5 % | C08-2 | Synthetic Hydraulic Fluids | 1/2" Super Coil High Watt (CCP) | 93 °C | n/a | n/a | 350 bar | Screw-in Cartridge | 0.35 GAL/MIN, 1.3 L/MIN | Increasing Pressure/Increasing Current | D-Ring (Standard) | 5000 PSI, 350 BAR | ||
| AP04G2YP10CN | Quote Required | 55 In Stock | $279.49/each | EA | 95 L/min | -34 °C | Hydraulic Systems Division | Solenoid Operated | -30 to 250 °F | 95 L/min | 34 Nm | Nitrile | Electrical | 4.1 Nm | 19 W | 0.14 kg | Steel | Nose to Side (1-2) | 1500 psi | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | n/a | 5000 psi | Increasing Pressure/Increasing Current | 100 to 400 Hz | n/a | Proportional Pressure Relief | Hydraulic Cartridge Systems Division | n/a | < 7 % | C10-2 | Mineral-based Hydraulic Fluids | 1/2" Super Coil High Watt (CCP) | 121 °C | 5 | n/a | 103 bar | Screw-in Cartridge | 25 GAL/MIN, 95 L/MIN | Increasing Pressure/Increasing Current | Nitrile | 1000 PSI, 70 BAR | |
| AP04G2YP21CN | Quote Required | $218.00/each | EA | 95 L/min | -30 °F | Hydraulic Systems Division | Solenoid Operated | -30 to 250 °F | 95 L/min | 34 Nm | Nitrile | Electrical | 4.1 Nm | 19 W | 0.3 lb | Hardened Steel | Nose to Side (1-2) | 210 bar | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | n/a | 5000 psi | Increasing Pressure/Increasing Current | 100 to 400 Hz | n/a | Proportional Pressure Relief | Hydraulic Cartridge Systems Division | n/a | < 7 % | C10-2 | Mineral-based Hydraulic Fluids | 1/2" Super Coil High Watt (CCP) | 121 °C | 5 | n/a | 210 bar | Screw-in Cartridge | 25 GAL/MIN, 95 L/MIN | Increasing Pressure/Increasing Current | Nitrile | 3000 PSI, 210 BAR |
