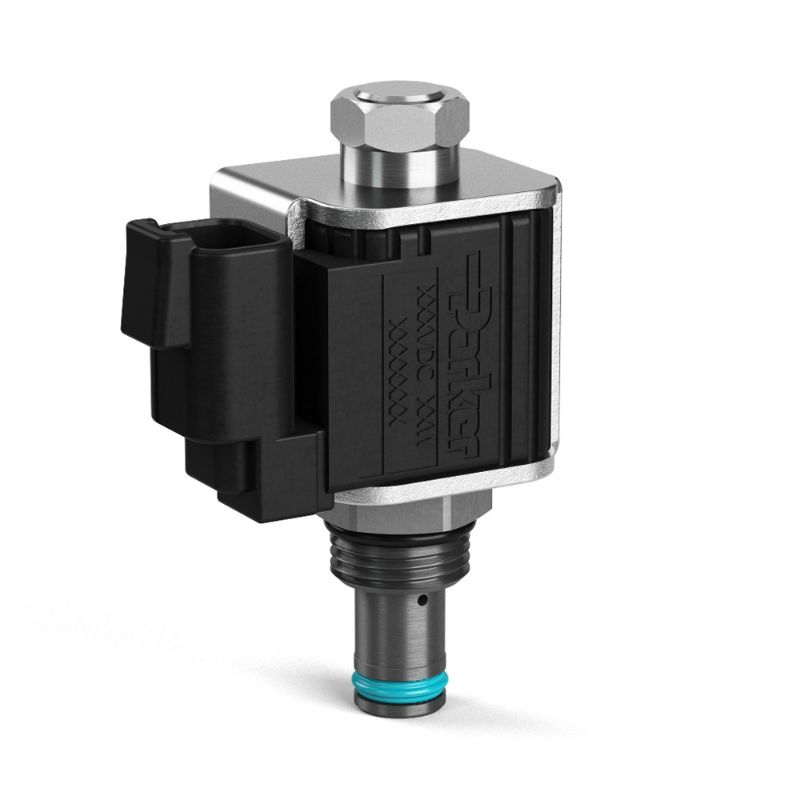

Parker AP02B2YP21C - Pressure Relieving Proportional Valve

Name: Parker AP02B2YP21C - Pressure Relieving Proportional Valve
SKU: AP02B2YP21C
Price: 117.50 USD
Availability: LimitedAvailability

Parker’s selection of proportional pressure relieving valves are for applications that require dynamic relieving and valves that are capable of flows up to 95 lpm (25 gpm) and pressures as high as 350 bar (5000 psi).

Availability:

1 Limited Stock

Greensboro, NC

Partner Available:

Quote Required

Brand Parker

Part No. AP02B2YP21C

$117.50

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Electrical
Maximum Operating Pressure	3000 psi	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Flow Direction	Nose to Side (1-2)	For Fluid Type	Synthetic Hydraulic Fluids
Valve Material	Hardened Steel	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-35 °F
Maximum Operating Temperature	93 °C	Maximum Pressure Setting	n/a
Mounting Type	Screw-in Cartridge	Cavity Size	C08-2
Maximum Inlet Pressure Rating	5000 psi	Weight	0.14 lb
Operating Temperature	-37 to 93 °C	Function	Proportional Pressure Relief
Coil Type	1/2" Super Coil High Watt (CCP)	Flow Rate	1.4 Gal/min
Frequency	100 to 400 Hz	Leak Rate	30
Hysteresis	5 %	Configuration	Increasing Pressure/Increasing Current
Seal Material	D-Ring (Standard)	Operation Type	Solenoid Operated
Cracking Pressure	0.21 bar	Maximum Flow Rate	5.3 L/min
Power Consumption	19 W	Installation Torque	30 Nm
Pressure Control Range	n/a	Maximum Relief Pressure	210 bar
Coil Nut Tightening Torque	4.1 Nm	Flow Rate	0.8 GAL/MIN, 3 L/MIN
Configuration	Increasing Pressure/Increasing Current	Seal Material	D-Ring (Standard)
Maximum Relief Pressure	3000 PSI, 210 BAR
