*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

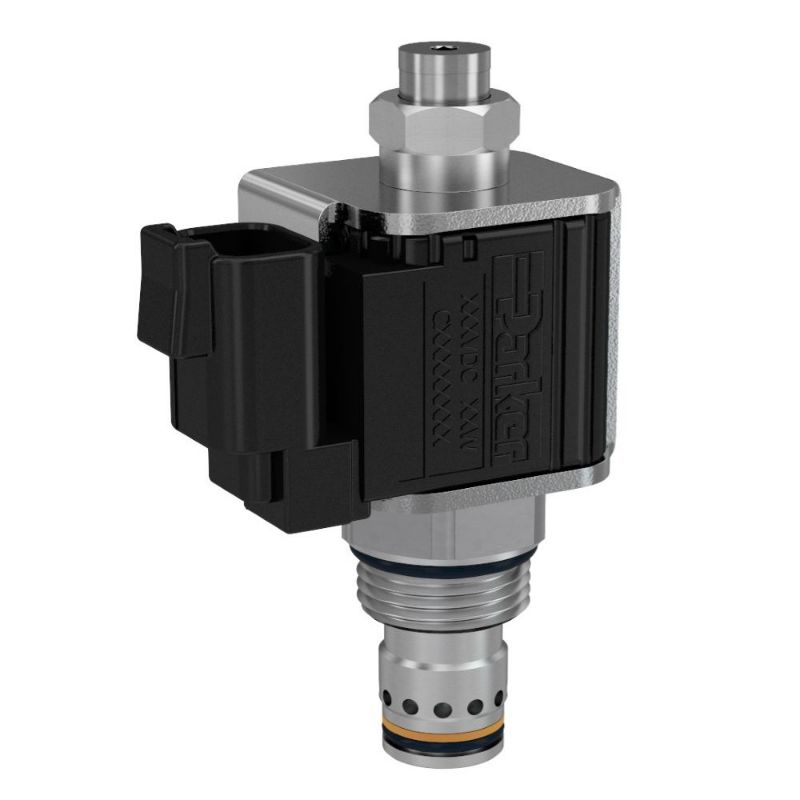

Parker AP04G2YP21CN - Pressure Relieving Proportional Valve

Parker’s selection of proportional pressure relieving valves are for applications that require dynamic relieving and valves that are capable of flows up to 95 lpm (25 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Quote Required
Partner Available:	3 In Stock

Brand Parker

Part No. AP04G2YP21CN

$218.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Electrical
Seal Material	Nitrile	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Weight	0.3 lb
Division	Hydraulic Systems Division	Leak Rate	5
Flow Direction	Nose to Side (1-2)	For Fluid Type	Mineral-based Hydraulic Fluids
Valve Material	Hardened Steel	Filter Efficiency Rating	SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Maximum Operating Temperature	121 °C	Maximum Operating Pressure	210 bar
Maximum Flow Rate	95 L/min	Flow Rate	95 L/min
Maximum Pressure Setting	n/a	Mounting Type	Screw-in Cartridge
Operating Temperature	-30 to 250 °F	Cavity Size	C10-2
Maximum Inlet Pressure Rating	5000 psi	Cracking Pressure	n/a
Function	Proportional Pressure Relief	Coil Type	1/2" Super Coil High Watt (CCP)
Frequency	100 to 400 Hz	Hysteresis	< 7 %
Configuration	Increasing Pressure/Increasing Current	Operation Type	Solenoid Operated
Power Consumption	19 W	Installation Torque	34 Nm
Pressure Control Range	n/a	Maximum Relief Pressure	210 bar
Coil Nut Tightening Torque	4.1 Nm	Seal Material	Nitrile
Flow Rate	25 GAL/MIN, 95 L/MIN	Configuration	Increasing Pressure/Increasing Current
Maximum Relief Pressure	3000 PSI, 210 BAR
