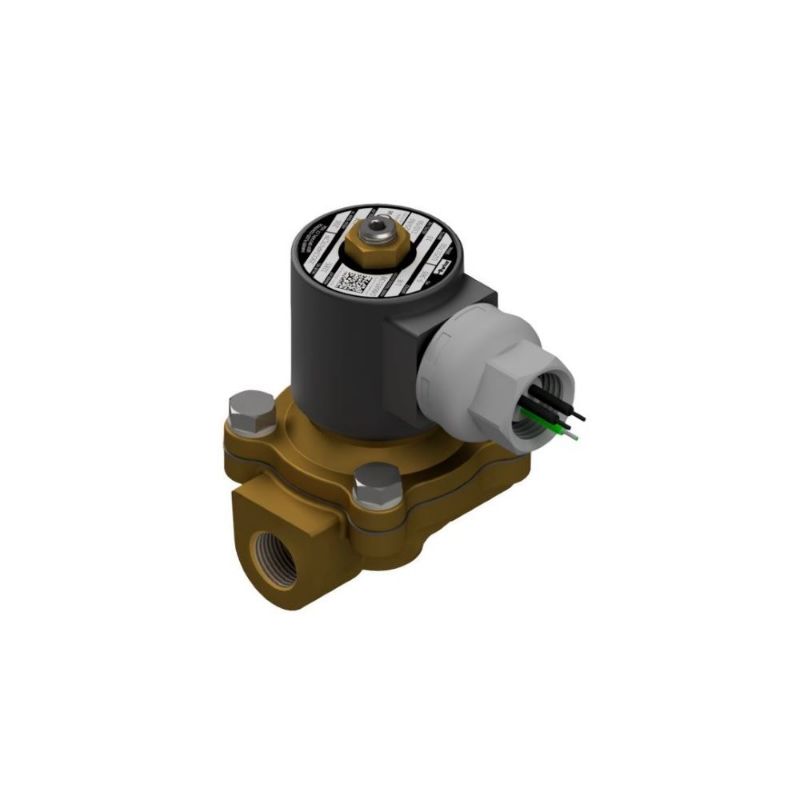

Parker 22LC08UN7C7B - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 22LC08UN7C7B

$201.03

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid Control Division
Input Voltage	24.0 VDC	Seal Material	NBR
Orifice Size	5/8 inch	Body Material	Lead-Free Brass
Actuation Type	Internal Pilot	Minimum Pressure Differential	5 psi
Configuration	All Ports in Body	Specifications Met	CULus Safety Shutoff
Maximum Ambient Temperature	125 °F	Function	2-Way
Power Consumption	10 W	Maximum Fluid Temperature	185 °F
Coil Specifications Met	IP69	Exhaust Flow Coefficient	n/a
Port Size	NPT 1/2 inch	Maximum Pressure Differential	150 psig
Installation	IOM7222	Main Flow Coefficient	4 Cv
Preventive Maintenance Kit	7R024	Seal Material	NBR
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Body Material	Lead-Free Brass
Configuration	Normally Closed	Voltage	24 VDC
Function	2-Way	Port Size (inch)	1/2 NPT
Orifice Size (inch)	5/8	Minimum Pressure Differential (psi)	5
Maximum Operating Pressure Differential (psig)	150
