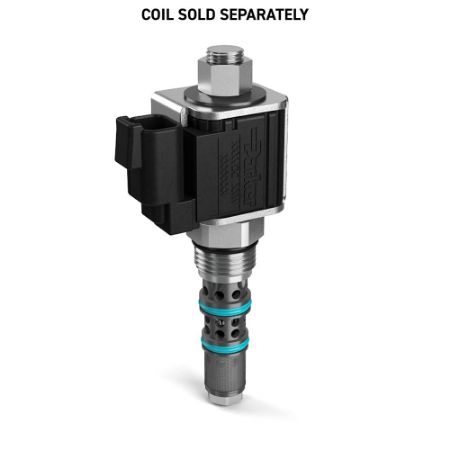

Pressure Reducing Proportional Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s family of proportional pressure reducing valves give the operator reliable performance for applications that require pressure limitation. These valves are capable of handling flows up to 37 lpm (10 gpm) and pressures as high as 210 bar (3000 psi). Parker’s proportional pressure reducing valves are ideal for pilot control or functions such as cylinders where there may be a risk of buckling due to over-pressurization, and can be paired with any Current Controlled Pulse Width Modulation (PWM) valve driver. The simple and compact design enables these valves to be used on a variety of equipment within the mobile, industrial, or manufacturing markets.
Markets:
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Low hysteresis
• One piece cartridge housing
• Non-magnetic spool and housing assembly
Applications:
• Pilot control
• Applications sensitive to over-pressurization
Additional Technical Insight:
Recommended to be used with a Current Controlled Pulse Width Modulation (PWM) valve driver.
Read More...Markets:
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Low hysteresis
• One piece cartridge housing
• Non-magnetic spool and housing assembly
Applications:
• Pilot control
• Applications sensitive to over-pressurization
Additional Technical Insight:
Recommended to be used with a Current Controlled Pulse Width Modulation (PWM) valve driver.
| Action | Part No. | Availability | Partner Available | Price | Maximum Flow Rate | Operation Type | Maximum Drain Flow Rate | Body Material | Division | Operating Temperature | Current | Installation Torque | Flow Rate | Minimum Operating Temperature | Actuation Type | Seal Material | Coil Nut Tightening Torque | Wire Mesh Screen Included | Weight | Filter Efficiency Rating | Valve Material | Maximum Operating Pressure | Power Consumption | Response Time | Maximum Kinematic Viscosity | Maximum Regulating Pressure | Frequency | Flow Direction | Maximum Tank Pressure | Maximum Pressure Setting | Maximum Inlet Pressure Rating | Function | Configuration | Division | Hysteresis | For Fluid Type | Coil Type | Cavity Size | Override Functionality | Maximum Operating Temperature | Leak Rate | Mounting Type | Override Functionality | Maximum Inlet Pressure Rating | Seal Material | Configuration | Wire Mesh Screen Included | Maximum Flow Rate | Maximum Regulating Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EPR111C03 | Quote Required | $227.50/each | 10 Gal/min | Solenoid operated | N/A cm3/min | N/A | Hydraulic Systems Division | -35 to +200 °F | 0.9 at 12VDC, 0.45 at 24VDC A | 50-56 Nm | 37.5 L/min | -37 °C | Electrical | D-Ring (Standard) | 7-9.5 Nm | N/A | 1.3 lb | ISO 4406 18/16/13, SAE Class 4 | All parts steel. All operating parts hardened steel | 5000 psi | 9 @ Max Reduced Pressure W | N/A ms | 45-2000 SSU (6 to 420 cSt) | 21 bar | 200-600 Hz | Inlet port 1, Reducing port 2, Tank port 3 | N/A psi | N/A psi | 350 bar | Proportional Pressure Reducing | Pressure Reducing/Relieving | Hydraulic Cartridge Systems Division | 4% | Mineral-based or synthetic hydraulic fluids | 1/2" Super Coil Low Watt (CCS) | C10-3L | N/A | +93 °C | 492 @ 300 PSI (21 BAR), 946 @ 3000 PSI (210 BAR) cm3/min | Screw in cartridge valve | N/A | 5000 PSI, 350 BAR | D-Ring (Standard) | Pressure Reducing/Relieving | N/A | 10 GAL/MIN, 37.5 L/MIN | 300 PSI, 21 BAR | ||
| GTP02340601N | Quote Required | $265.75/each | 19 L/min | Solenoid operated | 100 De-Energized, 750 In Regulating Zone @ 300 PSI (21 BAR) cm3/min | N/A | Hydraulic Systems Division | -30 to +250 °F | 1.4 at 12VDC (High watt), 0.7 at 24VDC (High watt) A | 27 Nm | 19 L/min | -30 °F | Electrical | Nitrile | 3 lb-ft | Yes | 0.17 lb | ISO 4406 18/16/13, SAE Class 4 | All parts steel. All operating parts hardened steel | 3000 psi | 19 W | 10 ms | 45-2000 SSU (6 to 420 cSt) | 41-51 bar | 100-400 Hz | Inlet port 3, Reducing port 2, Tank port 1 | N/A psi | N/A psi | 3000 psi | Proportional Pressure Reducing | Side Cylinder Port | Hydraulic Cartridge Systems Division | 3.5% | Mineral-based or synthetic hydraulic fluids | 1/2" Super Coil High Watt (CCP) | C08-3 | N/A | +121 °C | N/A cm3/min | Screw in cartridge valve | N/A | 3000 PSI, 210 BAR | Nitrile | Side Cylinder Port | Yes | 5 GAL/MIN, 19 L/MIN | 600-740 PSI, 41-51 BAR | ||
| GTP02340901N | Quote Required | $265.75/each | 5 Gal/min | Solenoid operated | 100 De-Energized, 750 In Regulating Zone @ 300 PSI (21 BAR) cm3/min | N/A | Hydraulic Systems Division | -30 to +250 °F | 1.4 at 12VDC (High watt), 0.7 at 24VDC (High watt) A | 20 lb-ft | 5 Gal/min | -34 °C | Electrical | Nitrile | 3 lb-ft | Yes | 0.17 lb | ISO 4406 18/16/13, SAE Class 4 | All parts steel. All operating parts hardened steel | 210 bar | 19 W | 10 ms | 45-2000 SSU (6 to 420 cSt) | 940-1140 psi | 100-400 Hz | Inlet port 3, Reducing port 2, Tank port 1 | N/A psi | N/A psi | 210 bar | Proportional Pressure Reducing | Side Cylinder Port | Hydraulic Cartridge Systems Division | 3.5% | Mineral-based or synthetic hydraulic fluids | 1/2" Super Coil High Watt (CCP) | C08-3 | N/A | +121 °C | N/A cm3/min | Screw in cartridge valve | N/A | 3000 PSI, 210 BAR | Nitrile | Side Cylinder Port | Yes | 5 GAL/MIN, 19 L/MIN | 940-1140 PSI, 65-79 BAR |
