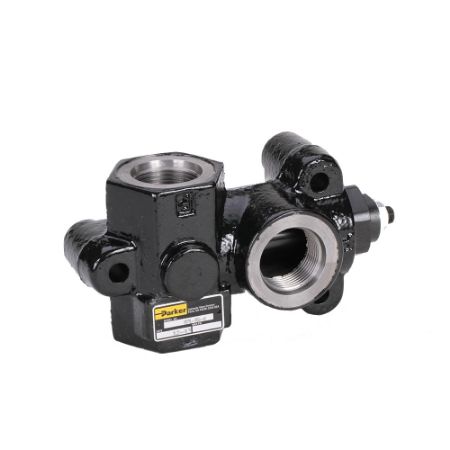

Pilot Operated Relief Valve - RPL Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s RPL In-Line Relief valves are pilot operated, ball-type relief valve. The RPL is a compact, low profile relief design that is screw adjustable from 500 to 5000 PSI. Their best application is a main system relief where smooth consistent performance is required.
Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• Compact, low profile design
• High-tensile compacted graphite body
• Pilot operated for smooth, stable operation
• Standard porting options are 3/4” NPT and 1” NPT as well as SAE-12 and SAE-16
• Rated at 5000 PSI with SAE ports with a maximum recommend pump or actuator flow of 60 GPM
Applications:
• Suitable for various mobile applications
Read More...Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• Compact, low profile design
• High-tensile compacted graphite body
• Pilot operated for smooth, stable operation
• Standard porting options are 3/4” NPT and 1” NPT as well as SAE-12 and SAE-16
• Rated at 5000 PSI with SAE ports with a maximum recommend pump or actuator flow of 60 GPM
Applications:
• Suitable for various mobile applications
| Action | Part No. | Availability | Partner Available | Price | UOM | Actuation Type | Seal Material | Weight | Maximum Operating Pressure | Connection Size | Adjustment Mechanism | For Fluid Type | Connection Type | Division | Pressure Control Range | Maximum Operating Temperature | Maximum Flow Rate | Body Material | Mounting Type | Product Style | Minimum Operating Temperature | Port Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPL-100-A | Quote Required | $514.50/each | EA | Hydraulic Pressure | Nitrile | 6 lb | 2000 psi | 1" | Adjustable | Hydraulic Oil | NPT | Hydraulic Valve Systems Division | Adjustable | +200 °F | 60 Gal/min | High Strength Cast Iron | In-Line | Pilot Operated Relief Valve | -40 °F | 1- 1-1/2" NPT | ||
| RPL-12-A | Quote Required | $514.50/each | EA | Hydraulic Pressure | Nitrile | 6 lb | 5000 psi | #12 | Adjustable | Hydraulic Oil | SAE | Hydraulic Valve Systems Division | Adjustable | +200 °F | 60 Gal/min | High Strength Cast Iron | In-Line | Pilot Operated Relief Valve | -40 °F | SAE-12 | ||
| RPL-16-A | Quote Required | $514.50/each | EA | Hydraulic Pressure | Nitrile | 6 lb | 5000 psi | #16 | Adjustable | Hydraulic Oil | SAE | Hydraulic Valve Systems Division | Adjustable | +200 °F | 60 Gal/min | High Strength Cast Iron | In-Line | Pilot Operated Relief Valve | -40 °F | SAE-16 | ||
| RPL-75-A | Quote Required | 1 Limited Stock | $530.24/each | EA | Hydraulic Pressure | Nitrile | 6 lb | 2000 psi | 3/4" | Adjustable | Hydraulic Oil | NPT | Hydraulic Valve Systems Division | Adjustable | +200 °F | 60 Gal/min | High Strength Cast Iron | In-Line | Pilot Operated Relief Valve | -40 °F | 3/4" NPT |
