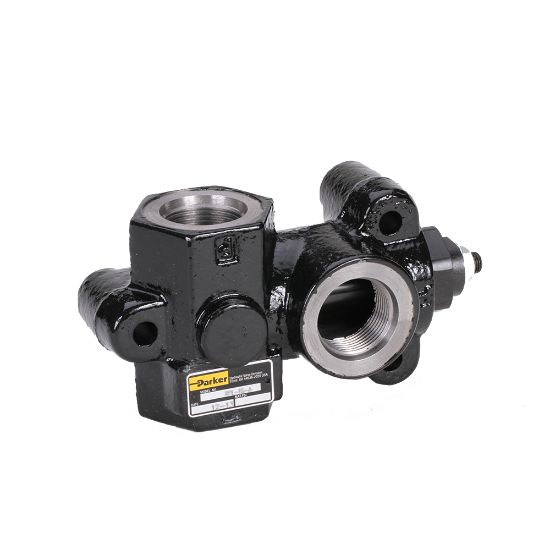

Parker RPL-100-A - Pilot Operated Relief Valve - RPL Series

Parker’s RPL In-line Relief Valve rated at 60 GPM is designed for limiting the maximum pressure which can be applied to the portion of the hydraulic circuit where it is installed.

Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. RPL-100-A

$499.50

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Adjustable
Minimum Operating Temperature	-40 °F	Maximum Flow Rate	60 Gal/min
Actuation Type	Hydraulic Pressure	Mounting Type	In-Line
Weight	6 lb	Connection Type	NPT
Connection Size	1"	Seal Material	Nitrile
For Fluid Type	Hydraulic Oil	Maximum Operating Temperature	+200 °F
Maximum Operating Pressure	2000 psi	Pressure Control Range	Adjustable
Division	Hydraulic Valve Systems Division	Product Style	Pilot Operated Relief Valve
Body Material	High Strength Cast Iron	Port Size	1- 1-1/2" NPT
