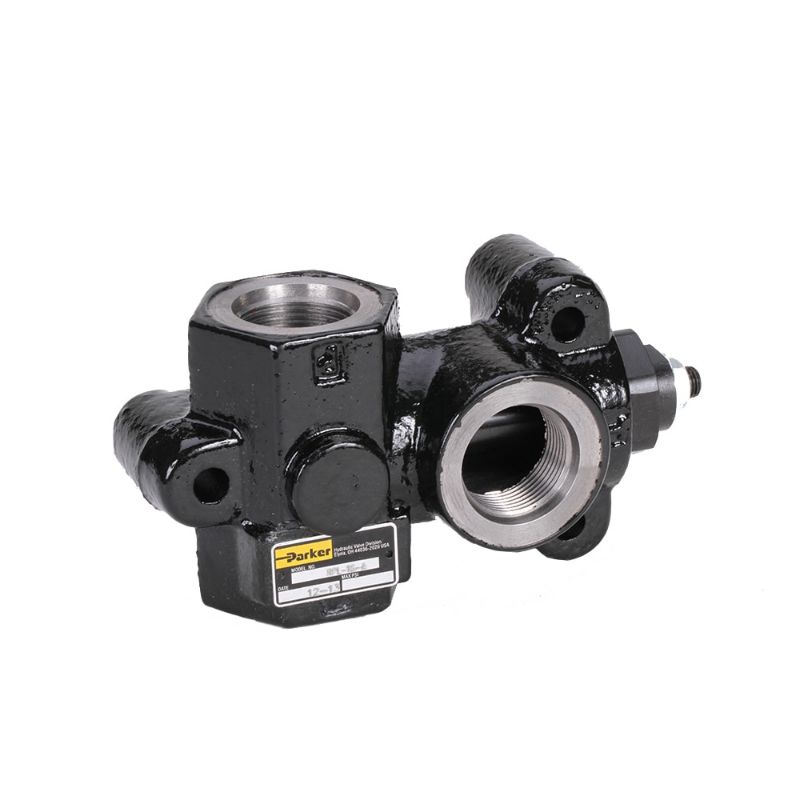

Parker RPL-75-A - Pilot Operated Relief Valve - RPL Series

Parker’s RPL In-line Relief Valve rated at 60 GPM is designed for limiting the maximum pressure which can be applied to the portion of the hydraulic circuit where it is installed.

AFP Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. RPL-75-A

$530.24/each

Products specifications

Attribute name	Attribute value
UOM	EA	For Fluid Type	Hydraulic Oil
Division	Hydraulic Valve Systems Division	Connection Type	NPT
Pressure Control Range	Adjustable	Maximum Operating Temperature	+200 °F
Maximum Flow Rate	60 Gal/min	Body Material	High Strength Cast Iron
Mounting Type	In-Line	Minimum Operating Temperature	-40 °F
Product Style	Pilot Operated Relief Valve	Actuation Type	Hydraulic Pressure
Maximum Operating Pressure	2000 psi	Seal Material	Nitrile
Connection Size	3/4"	Weight	6 lb
Adjustment Mechanism	Adjustable	Port Size	3/4" NPT
