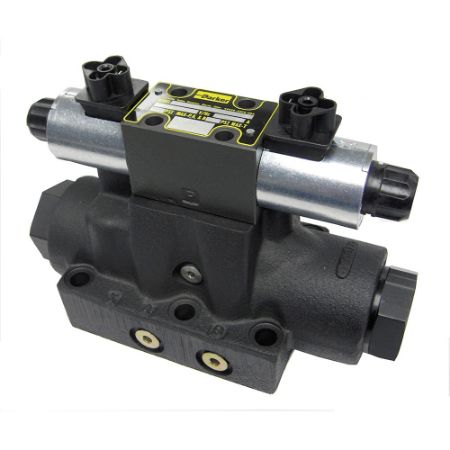

Pilot Operated Directional Control Valve - D61VW Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s D61VW directional control valves are available in 2 or 3-position. They are manifold or subplate mounted valves which conform to NFPA’s D08, CETOP 8 mounting patterns.
Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits:
• Explosion proof available
• Low pressure drop design
• Fast response option available
• Hardened spools provide long life
• No tools required for coil removal
• Wide variety of voltages and electrical connections available
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits:
• Explosion proof available
• Low pressure drop design
• Fast response option available
• Hardened spools provide long life
• No tools required for coil removal
• Wide variety of voltages and electrical connections available
Applications:
• Suitable for general hydraulic applications
| Action | Part No. | Availability | Partner Available | Price | Maximum Operating Temperature | Spool Position | Connection Type | Power Supply Voltage | Division | Options | Coil Specifications Met | Additional Options | Valve Type | Weight | Maximum Operating Pressure | Seal Material | Spool Code | Actuation Type | Body Material | Mounting Type | Maximum Flow Rate | Minimum Operating Temperature | Solenoid Option | Pilot Inlet / Drain Locations | Mounting Type | Size | Maximum Flow Rate | Maximum Operating Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D61VW001B1NJW | Quote Required | $1,143.00/each | 140 °F | P to A and B to T in Offset Position. | DIN w/o Plug | 24 VDC | Hydraulic Valve Systems Division | Omit - No Options | Omit to Standard Valve | Consult catalog for other available features | Pilot Operated Directional Control Valve | 12.1 kg | 3000 psi | Nitrile | 4-Way | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Omit - High Watt | Internal Pilot / External Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001B1NYCF | Quote Required | $1,174.50/each | 140 °F | Spring Offset | Leadwire Conduit Box | 120/60 - 110/50 VAC | Hydraulic Valve Systems Division | Omit - No Options | Omit to Standard Valve | Consult catalog for additional features. | Pilot Operated Directional Control Valve | 12.1 kg | 3000 psi | Nitrile | All Ports Blocked | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Low Watt | Internal Pilot / External Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001B4NJW | Quote Required | $1,143.00/each | 140 °F | 2-Position | DIN w/o Plug | 24 VDC | Hydraulic Valve Systems Division | Omit - No Options | Omit to Standard Valve | Consult catalog for additional features. | Pilot Operated Directional Control Valve | 26.6 lb | 207 bar | Nitrile | All Ports Blocked | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Omit - High Watt | Internal Pilot / Internal Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001B4NYGF5 | Quote Required | $1,185.00/each | 140 °F | 2-Position | Plug-in Conduit Box | 120/60 - 110/50 VAC | Hydraulic Valve Systems Division | Signal Lights | Omit to Standard Valve | Consult catalog for other available features | Pilot Operated Directional Control Valve | 12.1 kg | 207 bar | Nitrile | 3-Position | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Low Watt | Internal Pilot / Internal Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001B4NYW | Quote Required | $1,143.00/each | 140 °F | P to A and B to T in Offset Position. | DIN w/o Plug | 120/60 - 110/50 VAC | Hydraulic Valve Systems Division | Omit - No Options | Omit to Standard Valve | Consult catalog for additional features. | Pilot Operated Directional Control Valve | 12.1 kg | 207 bar | Nitrile | 4-Way | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Omit - High Watt | Internal Pilot / Internal Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C1NJG5 | Quote Required | $1,350.00/each | 140 °F | Spring Centered | Plug-in Conduit Box | 24 VDC | Hydraulic Valve Systems Division | Signal Lights | Omit to Standard Valve | Consult catalog for other available features | Pilot Operated Directional Control Valve | 12.1 kg | 3000 psi | Nitrile | 4-Way | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Omit - High Watt | Internal Pilot / External Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C1NYCF4 | Quote Required | $1,450.50/each | 140 °F | Double Solenoid | Leadwire Conduit Box | 120/60 - 110/50 VAC | Hydraulic Valve Systems Division | Omit - No Options | CSA | Consult catalog for additional features. | Pilot Operated Directional Control Valve | 26.6 lb | 207 bar | Nitrile | 4-Way | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Low Watt | Internal Pilot / External Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C1NYGF5 | Quote Required | $1,350.00/each | 140 °F | 3-Position | Plug-in Conduit Box | 120/60 - 110/50 VAC | Hydraulic Valve Systems Division | Signal Lights | Omit to Standard Valve | Consult catalog for other available features | Pilot Operated Directional Control Valve | 12.1 kg | 207 bar | Nitrile | 3-Position | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Low Watt | Internal Pilot / External Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C1NYPF | Quote Required | $1,388.25/each | 140 °F | Double Solenoid | DIN with Plug | 120/60 - 110/50 VAC | Hydraulic Valve Systems Division | Omit - No Options | Omit to Standard Valve | Consult catalog for additional features. | Pilot Operated Directional Control Valve | 26.6 lb | 207 bar | Nitrile | All Ports Blocked | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Low Watt | Internal Pilot / External Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C2NYW | Quote Required | $1,307.25/each | 140 °F | 3-Position | DIN w/o Plug | 120/60 - 110/50 VAC | Hydraulic Valve Systems Division | Omit - No Options | Omit to Standard Valve | Consult catalog for other available features | Pilot Operated Directional Control Valve | 12.1 kg | 3000 psi | Nitrile | 3-Position | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Omit - High Watt | External Pilot / External Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C4NJG56 | Quote Required | $1,484.25/each | 140 °F | Double Solenoid | Plug-in Conduit Box | 24 VDC | Hydraulic Valve Systems Division | Manaplug (Mini) with Lights | Omit to Standard Valve | Consult catalog for additional features. | Pilot Operated Directional Control Valve | 26.6 lb | 207 bar | Nitrile | All Ports Blocked | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Omit - High Watt | Internal Pilot / Internal Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C4NJW | Quote Required | 2 Limited Stock | $1,307.25/each | 140 °F | 3-Position | DIN w/o Plug | 24 VDC | Hydraulic Valve Systems Division | Omit - No Options | Omit to Standard Valve | Consult catalog for additional features. | Pilot Operated Directional Control Valve | 26.6 lb | 207 bar | Nitrile | 4-Way | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Omit - High Watt | Internal Pilot / Internal Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | |
| D61VW001C4NJW4 | Quote Required | 2 Limited Stock | $1,420.50/each | 140 °F | Spring Centered | DIN w/o Plug | 24 VDC | Hydraulic Valve Systems Division | Omit - No Options | CSA | Consult catalog for additional features. | Pilot Operated Directional Control Valve | 26.6 lb | 207 bar | Nitrile | All Ports Blocked | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Omit - High Watt | Internal Pilot / Internal Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | |
| D61VW001C4NYC | Quote Required | $1,338.75/each | 140 °F | 3-Position | Leadwire Conduit Box | 120/60 - 110/50 VAC | Hydraulic Valve Systems Division | Omit - No Options | Omit to Standard Valve | Consult catalog for additional features. | Pilot Operated Directional Control Valve | 26.6 lb | 207 bar | Nitrile | All Ports Blocked | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Omit - High Watt | Internal Pilot / Internal Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C4NYCF | Quote Required | 2 Limited Stock | $1,338.75/each | 140 °F | 3-Position | Leadwire Conduit Box | 120/60 - 110/50 VAC | Hydraulic Valve Systems Division | Omit - No Options | Omit to Standard Valve | Consult catalog for other available features | Pilot Operated Directional Control Valve | 26.6 lb | 3000 psi | Nitrile | 4-Way | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Low Watt | Internal Pilot / Internal Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | |
| D61VW001C4NYCF3F | Quote Required | $1,800.00/each | 140 °F | 3-Position | Leadwire Conduit Box | 120/60 - 110/50 VAC | Hydraulic Valve Systems Division | Stroke Adjust A and B Ends | Omit to Standard Valve | Consult catalog for additional features. | Pilot Operated Directional Control Valve | 12.1 kg | 3000 psi | Nitrile | All Ports Blocked | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Low Watt | Internal Pilot / Internal Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C4NYCF43A | Quote Required | $1,894.50/each | 140 °F | 3-Position | Leadwire Conduit Box | 120/60 - 110/50 VAC | Hydraulic Valve Systems Division | Pilot Choke Meter-out | CSA | Consult catalog for additional features. | Pilot Operated Directional Control Valve | 26.6 lb | 3000 psi | Nitrile | All Ports Blocked | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Low Watt | Internal Pilot / Internal Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C4NYG3S | Quote Required | $1,925.25/each | 140 °F | Spring Centered | Plug-in Conduit Box | 120/60 - 110/50 VAC | Hydraulic Valve Systems Division | Manaplug (mini) | Omit to Standard Valve | Consult catalog for additional features. | Pilot Operated Directional Control Valve | 12.1 kg | 3000 psi | Nitrile | All Ports Blocked | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Omit - High Watt | Internal Pilot / Internal Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C4NYG5 | Quote Required | $1,350.00/each | 140 °F | Spring Centered | Plug-in Conduit Box | 120/60 - 110/50 VAC | Hydraulic Valve Systems Division | Signal Lights | Omit to Standard Valve | Consult catalog for additional features. | Pilot Operated Directional Control Valve | 26.6 lb | 207 bar | Nitrile | All Ports Blocked | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Omit - High Watt | Internal Pilot / Internal Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C4NYG56 | Quote Required | 1 Limited Stock | $1,482.75/each | 140 °F | Spring Centered | Plug-in Conduit Box | 120/60 - 110/50 VAC | Hydraulic Valve Systems Division | Manaplug (Mini) with Lights | Omit to Standard Valve | Consult catalog for other available features | Pilot Operated Directional Control Valve | 12.1 kg | 3000 psi | Nitrile | All Ports Blocked | Hydraulic Pressure | Gray Iron | Subplate | 100 Gal/min | -4 °F | Omit - High Watt | Internal Pilot / Internal Drain | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar |
