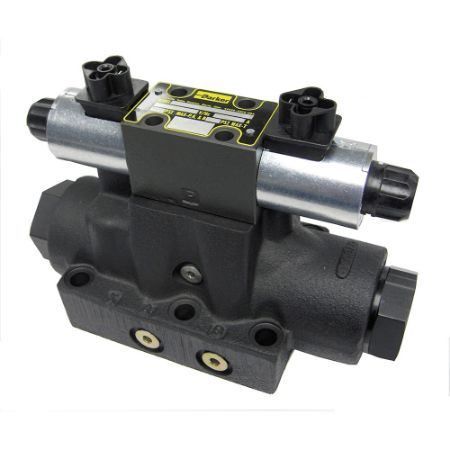

Pilot Operated Directional Control Valve - D61VW Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s D61VW directional control valves are available in 2 or 3-position. They are manifold or subplate mounted valves which conform to NFPA’s D08, CETOP 8 mounting patterns.
Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits:
• Explosion proof available
• Low pressure drop design
• Fast response option available
• Hardened spools provide long life
• No tools required for coil removal
• Wide variety of voltages and electrical connections available
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits:
• Explosion proof available
• Low pressure drop design
• Fast response option available
• Hardened spools provide long life
• No tools required for coil removal
• Wide variety of voltages and electrical connections available
Applications:
• Suitable for general hydraulic applications
| Action | Part No. | Availability | Partner Available | Price | UOM | Minimum Operating Temperature | Maximum Operating Pressure | Seal Material | Maximum Operating Temperature | Division | Power Supply Voltage | Actuation Type | Maximum Flow Rate | Mounting Type | Body Material | Spool Code | Spool Position | Pilot Inlet / Drain Locations | Valve Type | Connection Type | Solenoid Option | Options | Coil Specifications Met | Weight | Additional Options | Mounting Type | Size | Maximum Flow Rate | Maximum Operating Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D61VW001B1NJW | Quote Required | $1,143.00/each | EA | -4 °F | 3000 psi | Nitrile | 140 °F | Hydraulic Valve Systems Division | 24 VDC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | 4-Way | P to A and B to T in Offset Position. | Internal Pilot / External Drain | Pilot Operated Directional Control Valve | DIN w/o Plug | Omit - High Watt | Omit - No Options | Omit to Standard Valve | 12.1 kg | Consult catalog for other available features | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001B1NYCF | Quote Required | $1,174.50/each | EA | -4 °F | 3000 psi | Nitrile | 140 °F | Hydraulic Valve Systems Division | 120/60 - 110/50 VAC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | All Ports Blocked | Spring Offset | Internal Pilot / External Drain | Pilot Operated Directional Control Valve | Leadwire Conduit Box | Low Watt | Omit - No Options | Omit to Standard Valve | 12.1 kg | Consult catalog for additional features. | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001B4NJW | Quote Required | $1,143.00/each | EA | -4 °F | 207 bar | Nitrile | 140 °F | Hydraulic Valve Systems Division | 24 VDC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | All Ports Blocked | 2-Position | Internal Pilot / Internal Drain | Pilot Operated Directional Control Valve | DIN w/o Plug | Omit - High Watt | Omit - No Options | Omit to Standard Valve | 26.6 lb | Consult catalog for additional features. | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001B4NYGF5 | Quote Required | $1,185.00/each | EA | -4 °F | 207 bar | Nitrile | 140 °F | Hydraulic Valve Systems Division | 120/60 - 110/50 VAC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | 3-Position | 2-Position | Internal Pilot / Internal Drain | Pilot Operated Directional Control Valve | Plug-in Conduit Box | Low Watt | Signal Lights | Omit to Standard Valve | 12.1 kg | Consult catalog for other available features | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001B4NYW | Quote Required | $1,143.00/each | EA | -4 °F | 207 bar | Nitrile | 140 °F | Hydraulic Valve Systems Division | 120/60 - 110/50 VAC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | 4-Way | P to A and B to T in Offset Position. | Internal Pilot / Internal Drain | Pilot Operated Directional Control Valve | DIN w/o Plug | Omit - High Watt | Omit - No Options | Omit to Standard Valve | 12.1 kg | Consult catalog for additional features. | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C1NJG5 | Quote Required | $1,350.00/each | EA | -4 °F | 3000 psi | Nitrile | 140 °F | Hydraulic Valve Systems Division | 24 VDC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | 4-Way | Spring Centered | Internal Pilot / External Drain | Pilot Operated Directional Control Valve | Plug-in Conduit Box | Omit - High Watt | Signal Lights | Omit to Standard Valve | 12.1 kg | Consult catalog for other available features | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C1NYCF4 | Quote Required | $1,450.50/each | EA | -4 °F | 207 bar | Nitrile | 140 °F | Hydraulic Valve Systems Division | 120/60 - 110/50 VAC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | 4-Way | Double Solenoid | Internal Pilot / External Drain | Pilot Operated Directional Control Valve | Leadwire Conduit Box | Low Watt | Omit - No Options | CSA | 26.6 lb | Consult catalog for additional features. | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C1NYGF5 | Quote Required | $1,350.00/each | EA | -4 °F | 207 bar | Nitrile | 140 °F | Hydraulic Valve Systems Division | 120/60 - 110/50 VAC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | 3-Position | 3-Position | Internal Pilot / External Drain | Pilot Operated Directional Control Valve | Plug-in Conduit Box | Low Watt | Signal Lights | Omit to Standard Valve | 12.1 kg | Consult catalog for other available features | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C1NYPF | Quote Required | $1,388.25/each | EA | -4 °F | 207 bar | Nitrile | 140 °F | Hydraulic Valve Systems Division | 120/60 - 110/50 VAC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | All Ports Blocked | Double Solenoid | Internal Pilot / External Drain | Pilot Operated Directional Control Valve | DIN with Plug | Low Watt | Omit - No Options | Omit to Standard Valve | 26.6 lb | Consult catalog for additional features. | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C2NYW | Quote Required | $1,307.25/each | EA | -4 °F | 3000 psi | Nitrile | 140 °F | Hydraulic Valve Systems Division | 120/60 - 110/50 VAC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | 3-Position | 3-Position | External Pilot / External Drain | Pilot Operated Directional Control Valve | DIN w/o Plug | Omit - High Watt | Omit - No Options | Omit to Standard Valve | 12.1 kg | Consult catalog for other available features | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C4NJG56 | Quote Required | $1,484.25/each | EA | -4 °F | 207 bar | Nitrile | 140 °F | Hydraulic Valve Systems Division | 24 VDC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | All Ports Blocked | Double Solenoid | Internal Pilot / Internal Drain | Pilot Operated Directional Control Valve | Plug-in Conduit Box | Omit - High Watt | Manaplug (Mini) with Lights | Omit to Standard Valve | 26.6 lb | Consult catalog for additional features. | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C4NJW | Quote Required | 3 In Stock | $1,307.25/each | EA | -4 °F | 207 bar | Nitrile | 140 °F | Hydraulic Valve Systems Division | 24 VDC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | 4-Way | 3-Position | Internal Pilot / Internal Drain | Pilot Operated Directional Control Valve | DIN w/o Plug | Omit - High Watt | Omit - No Options | Omit to Standard Valve | 26.6 lb | Consult catalog for additional features. | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | |
| D61VW001C4NJW4 | Quote Required | 1 Limited Stock | $1,420.50/each | EA | -4 °F | 207 bar | Nitrile | 140 °F | Hydraulic Valve Systems Division | 24 VDC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | All Ports Blocked | Spring Centered | Internal Pilot / Internal Drain | Pilot Operated Directional Control Valve | DIN w/o Plug | Omit - High Watt | Omit - No Options | CSA | 26.6 lb | Consult catalog for additional features. | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | |
| D61VW001C4NYC | Quote Required | $1,338.75/each | EA | -4 °F | 207 bar | Nitrile | 140 °F | Hydraulic Valve Systems Division | 120/60 - 110/50 VAC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | All Ports Blocked | 3-Position | Internal Pilot / Internal Drain | Pilot Operated Directional Control Valve | Leadwire Conduit Box | Omit - High Watt | Omit - No Options | Omit to Standard Valve | 26.6 lb | Consult catalog for additional features. | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C4NYCF | Quote Required | 2 Limited Stock | $1,338.75/each | EA | -4 °F | 3000 psi | Nitrile | 140 °F | Hydraulic Valve Systems Division | 120/60 - 110/50 VAC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | 4-Way | 3-Position | Internal Pilot / Internal Drain | Pilot Operated Directional Control Valve | Leadwire Conduit Box | Low Watt | Omit - No Options | Omit to Standard Valve | 26.6 lb | Consult catalog for other available features | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | |
| D61VW001C4NYCF3F | Quote Required | $1,800.00/each | EA | -4 °F | 3000 psi | Nitrile | 140 °F | Hydraulic Valve Systems Division | 120/60 - 110/50 VAC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | All Ports Blocked | 3-Position | Internal Pilot / Internal Drain | Pilot Operated Directional Control Valve | Leadwire Conduit Box | Low Watt | Stroke Adjust A and B Ends | Omit to Standard Valve | 12.1 kg | Consult catalog for additional features. | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C4NYCF43A | Quote Required | $1,894.50/each | EA | -4 °F | 3000 psi | Nitrile | 140 °F | Hydraulic Valve Systems Division | 120/60 - 110/50 VAC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | All Ports Blocked | 3-Position | Internal Pilot / Internal Drain | Pilot Operated Directional Control Valve | Leadwire Conduit Box | Low Watt | Pilot Choke Meter-out | CSA | 26.6 lb | Consult catalog for additional features. | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C4NYG3S | Quote Required | $1,925.25/each | EA | -4 °F | 3000 psi | Nitrile | 140 °F | Hydraulic Valve Systems Division | 120/60 - 110/50 VAC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | All Ports Blocked | Spring Centered | Internal Pilot / Internal Drain | Pilot Operated Directional Control Valve | Plug-in Conduit Box | Omit - High Watt | Manaplug (mini) | Omit to Standard Valve | 12.1 kg | Consult catalog for additional features. | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C4NYG5 | Quote Required | $1,350.00/each | EA | -4 °F | 207 bar | Nitrile | 140 °F | Hydraulic Valve Systems Division | 120/60 - 110/50 VAC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | All Ports Blocked | Spring Centered | Internal Pilot / Internal Drain | Pilot Operated Directional Control Valve | Plug-in Conduit Box | Omit - High Watt | Signal Lights | Omit to Standard Valve | 26.6 lb | Consult catalog for additional features. | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar | ||
| D61VW001C4NYG56 | Quote Required | 1 Limited Stock | $1,482.75/each | EA | -4 °F | 3000 psi | Nitrile | 140 °F | Hydraulic Valve Systems Division | 120/60 - 110/50 VAC | Hydraulic Pressure | 100 Gal/min | Subplate | Gray Iron | All Ports Blocked | Spring Centered | Internal Pilot / Internal Drain | Pilot Operated Directional Control Valve | Plug-in Conduit Box | Omit - High Watt | Manaplug (Mini) with Lights | Omit to Standard Valve | 12.1 kg | Consult catalog for other available features | Subplate | NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot | 35-100 GPM | 3000 psi/205 bar |
