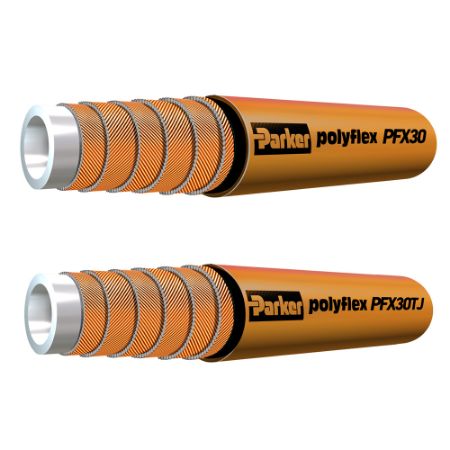

PFX30-05 UHP Hose - 43,645 psi
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker PFX30-05 Water Jetting Hose features a compact design to promote easy handling for operators and are used in high pressure water jetting applications. Features Parkers built in ColorGard™ sheath, giving operators easy visualization of core tube erosion for more efficient product inspections and reduced unscheduled downtime. These hoses often replace steel pipe where flexibility is important.
Markets:
• Industrial Cleaning
• All markets requiring pressures up to 43,000 psi for their cleaning applications
Features/Benefits:
• Low volumetric expansion
• Compact design promotes easy handling to reduce operator fatigue
• Compliant with DIN EN 1829-2
• Available with a TOUGHJACKET Cover for improved abrasion resistance
• ColorGard Technology for a more reliable and safer operation
Applications:
• Water jetting equipment
• High pressure power wash
• Industrial cleaning
• Hydroforming (compression forming process)
• Hydrodemolition
Read More...Markets:
• Industrial Cleaning
• All markets requiring pressures up to 43,000 psi for their cleaning applications
Features/Benefits:
• Low volumetric expansion
• Compact design promotes easy handling to reduce operator fatigue
• Compliant with DIN EN 1829-2
• Available with a TOUGHJACKET Cover for improved abrasion resistance
• ColorGard Technology for a more reliable and safer operation
Applications:
• Water jetting equipment
• High pressure power wash
• Industrial cleaning
• Hydroforming (compression forming process)
• Hydrodemolition
| Action | Part No. | Availability | Partner Available | Price | UOM | Cover Color | Division | Maximum Operating Temperature | Weight | Maximum Operating Pressure | Inside Diameter | Outside Diameter | Application | Cover Material | Minimum Operating Temperature | Minimum Bend Radius | Specifications Met | Hose Reinforcement Material | Hose Inner Tube Material | Size | Media | Compatible Fitting | Product Style | Design Factor | Notes | Hose Cover Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PFX30-05 | 264 In Stock | Quote Required | $40.32/foot | FT | Orange | Parflex Division | 158 °F | 0.64 lb/ft | 301 MPa | 7.8 mm | 0.736 inch | Water Jet Cutting | Polyurethane | -10 °C | 11 inch | DIN 1829-2 | 8 Spirals of Maximum Tensile Steel Wire | Polyoxymethylene (POM) | -5 | Chemicals | 2X Series | Single Line | 2.3 | Polyurethane Cover | ||
| PFX30-05-TJ | 249 In Stock | Quote Required | $44.35/foot | FT | Orange | Parflex Division | 70 °C | 1.10 kg/m | 3010 bar | 7.8 mm | 0.894 inch | Waterblasting | Polyurethane | -10 °C | 280 mm | DIN 1829-2 | 8 Spirals of Maximum Tensile Steel Wire | Polyoxymethylene (POM) | -5 | Water | 2X Series | 2.3 | TOUGHJACKET Polyurethane Cover | ToughJACKET™ |
