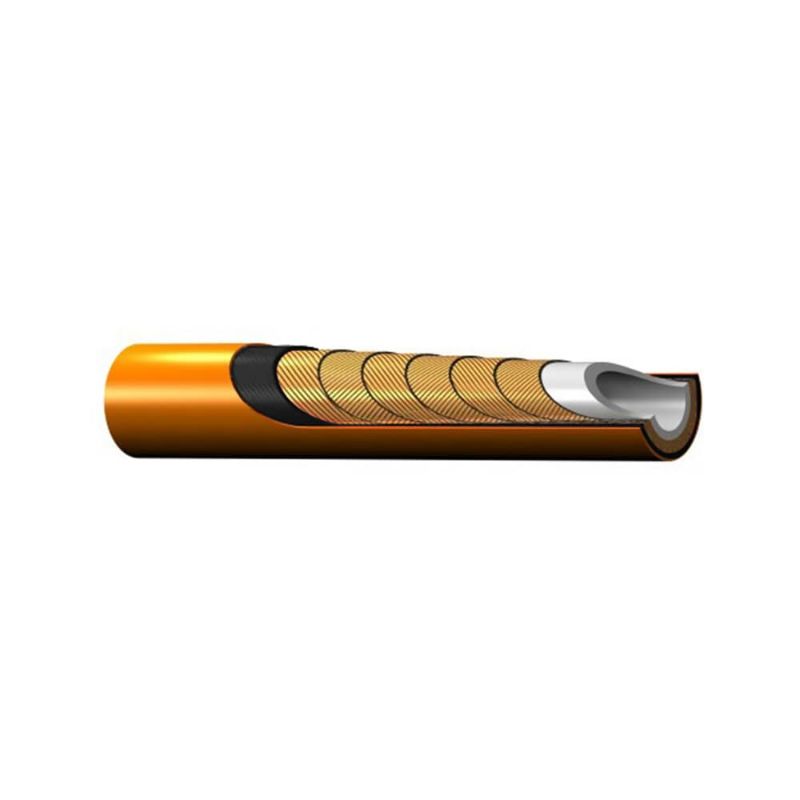

Parker PFX30-05-TJ - PFX30-05 UHP Hose - 43,645 psi

Name: Parker PFX30-05-TJ - PFX30-05 UHP Hose - 43,645 psi
SKU: PFX30-05-TJ
Price: 44.35 USD
Availability: InStock

Parker PFX30-05 is a 43,645 psi thermoplastic hose designed for waterejetting and water blast applications.

AFP Availability:

249 In Stock

North Chesterfield, VA

249

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. PFX30-05-TJ

$44.35/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Minimum Operating Temperature	-10 °C
Specifications Met	DIN 1829-2	Minimum Bend Radius	280 mm
Cover Material	Polyurethane	Application	Waterblasting
Hose Cover Type	ToughJACKET™	Size	-5
Media	Water	Hose Inner Tube Material	Polyoxymethylene (POM)
Design Factor	2.3	Compatible Fitting	2X Series
Cover Color	Orange	Inside Diameter	7.8 mm
Maximum Operating Temperature	70 °C	Division	Parflex Division
Weight	1.10 kg/m	Hose Reinforcement Material	8 Spirals of Maximum Tensile Steel Wire
Maximum Operating Pressure	3010 bar	Outside Diameter	0.894 inch
Notes	TOUGHJACKET Polyurethane Cover

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Selector Guides

UHP Waterblast Selection Poster--4900-WB-Selection (PDF)
