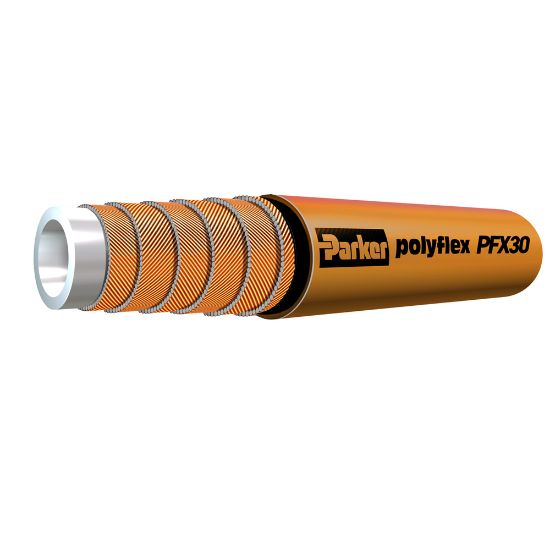

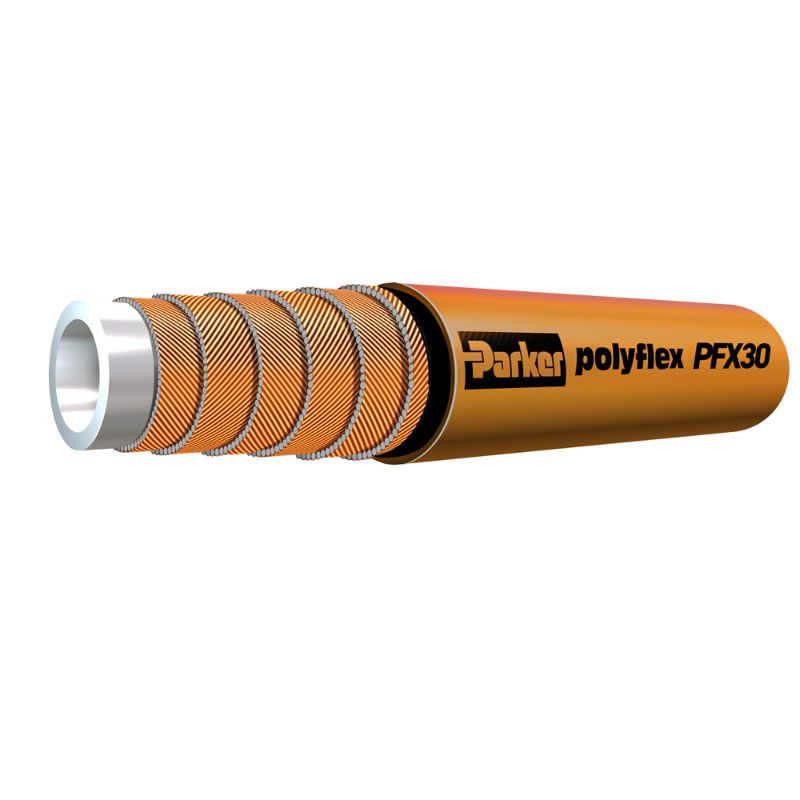

Parker PFX30-05 - PFX30-05 UHP Hose - 43,645 psi

Name: Parker PFX30-05 - PFX30-05 UHP Hose - 43,645 psi
SKU: PFX30-05
Price: 40.32 USD
Availability: InStock

Parker PFX30-05 is a 43,645 psi thermoplastic hose designed for waterejetting and water blast applications.

AFP Availability:

264 In Stock

North Chesterfield, VA

264

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. PFX30-05

$40.32/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Cover Color	Orange
Division	Parflex Division	Maximum Operating Temperature	158 °F
Weight	0.64 lb/ft	Maximum Operating Pressure	301 MPa
Inside Diameter	7.8 mm	Outside Diameter	0.736 inch
Application	Water Jet Cutting	Cover Material	Polyurethane
Minimum Operating Temperature	-10 °C	Minimum Bend Radius	11 inch
Specifications Met	DIN 1829-2	Hose Reinforcement Material	8 Spirals of Maximum Tensile Steel Wire
Hose Inner Tube Material	Polyoxymethylene (POM)	Size	-5
Media	Chemicals	Compatible Fitting	2X Series
Product Style	Single Line	Design Factor	2.3
Notes	Polyurethane Cover

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Selector Guides

UHP Waterblast Selection Poster--4900-WB-Selection (PDF)
