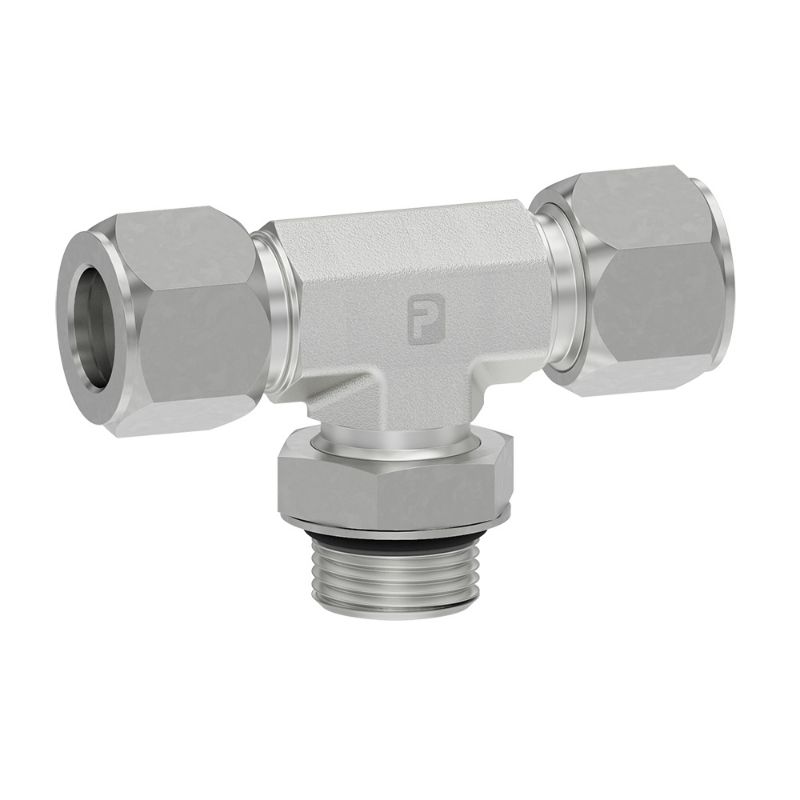

Parker 12 S5BU-S - Ferulok 24° Flareless Fittings

Name: Parker 12 S5BU-S - Ferulok 24° Flareless Fittings
SKU: 12 S5BU-S
Price: 139.99 USD
Availability: InStock

Parker's Ferulok 24° Flareless fittings create a visible heavy bite allowing easy inspection and a rear compression grip which firmly holds the nut and tubing, dampening the effects of vibration.

AFP Availability:

1 Limited Stock

West Knoxville, TN

Partner Available:

78 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 12 S5BU-S

$139.99/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Dynamic Pressure	4000 psi
Connection 4 Size	na	Specifications Met	SAE J514
Connection 4 Tube Outside Diameter	na	Body Material	Steel
Division	Tube Fittings Division	Connection Type	Flareless Bite Type
Body Material	Steel	Shape	Tee
Connection 2 Thread Size (inch)	na	Connection 1 Style	Male Flareless Bite Type
Connection 2 Style	Male Flareless Bite Type	O-ring	90 Durometer Nitrile
Connection 3 Tube O.D. (inch)	na	Connection Style	Straight Thread Branch Tee
Connection 3 Style	Male SAE-ORB	Connection 3 Thread Size (inch)	1 1/16-12
Connection 1 Tube O.D. (inch)	3/4	Connection 2 Tube O.D. (inch)	3/4
