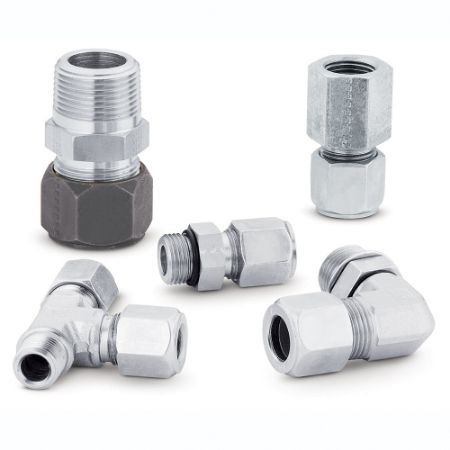

Ferulok 24° Flareless Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 24° Flareless tube fittings, Ferulok, have a visible bite which allows the fitting assembler to visually inspect the bite quality, which significantly minimizes the risk of improper assembly and related service problems in hydraulic connections. The rear compression grip of the ferrule firmly holds the nut and tubing, dampening the effects of vibration and extending the life of the joint. Exceeding the requirements of SAE J514, Ferulok Flareless fittings are especially suitable for use with applications requiring tube wall thicknesses ranging from medium to extra heavy.
Markets:
• Machine Tool
• Military Ground Systems
• Compressor
• Off-Shore Oil & Gas
• Power Plants
• Lubrication
• R & D
Features/Benefits:
• Hardened ferrule creates a visible heavy bite so no inspecting gauges are required.
• Compression grip at rear of ferrule dampens the effects of vibration which extends the life of the joint in rigorous applications.
• Especially suitable for use with tube wall thickness ranging from medium to heavy
• Metal-to-metal sealing makes it suitable for a broad range of temperature and media types.
• Parker’s Robust Port Stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly virtually mistake-proof. This feature improves customer internal efficiencies and reduces rework costs resulting from backup washer damage commonly seen with traditional SAE adjustable port ends in the market.
• Steel fittings come standard with ToughShield Plus plating which substantially exceeds the SAE corrosion hour requirements for red rust, lasting up to 3,000 hours without red rust as found by an independent test facility (tested to ASTM B117/ISO 9227). This enhanced performance provides customers with a competitive advantage through less downtime and extended equipment life, leading to increased revenues and reduced warranty costs.
• No special tooling is required for smaller sizes of Ferulok which can be assembled by wrench for sizes up to 3/4".
• Stainless Steel nuts have a coating to prevent galling.
• Offered in steel and stainless steel in sizes: 1/8" through 2" with working pressures up to 6000 psi.
Applications:
• Hydraulic fluid and gas handling connections
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Connection 4 Size | Dimensional Weight | Maximum Dynamic Pressure | Specifications Met | Connection Type | Connection 4 Tube Outside Diameter | Body Material | Body Material | Connection 3 Style | Connection 3 Thread Size (inch) | Connection 2 Style | Connection 2 Thread Size (inch) | Connection Style | Shape | Connection 1 Style | Connection 1 Tube O.D. (inch) | O-ring | Connection 2 Tube O.D. (inch) | Connection 3 Tube O.D. (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 BU-S | 69 In Stock | 859 In Stock | $4.07 | EA | Tube Fittings Division | na | 0.015485611510791366 lb | na | SAE J514 | Flareless Bite Type | na | Steel | Steel | na | na | na | na | na | Nut | Female Flareless Bite Type | 5/8 | na | na | na | |
| 10 BU-SS | 1 Limited Stock | 19 In Stock | $19.29 | EA | Tube Fittings Division | na | na | SAE J514 | Flareless Bite Type | na | Stainless Steel | Stainless Steel | na | na | na | na | na | Nut | Female Flareless Bite Type | 5/8 | na | na | na | ||
| 10 C5BU-S | 18 In Stock | 61 In Stock | $35.31 | EA | Tube Fittings Division | na | 4500 psi | SAE J514 | Flareless Bite Type | na | Steel | Steel | na | na | Male SAE-ORB | 7/8-14 | Tube to SAE Straight Thread | 90° Elbow | Male Flareless Bite Type | 5/8 | 90 Durometer Nitrile | na | na | ||
| 10 C5BU-S FKM | Quote Required | TBD | Tube Fittings Division | na | 4500 psi | SAE J514 | Flareless Bite Type | na | Steel | Steel | na | na | Male SAE-ORB | 7/8-14 | Tube to SAE Straight Thread | 90° Elbow | Male Flareless Bite Type | 5/8 | 90 Durometer Fluorocarbon | na | na | ||||
| 10 C5BU-SS | Quote Required | TBD | Tube Fittings Division | na | 4500 psi | SAE J514 | Flareless Bite Type | na | Stainless Steel | Stainless Steel | na | na | Male SAE-ORB | 7/8-14 | Tube to SAE Straight Thread | 90° Elbow | Male Flareless Bite Type | 5/8 | 90 Durometer Nitrile | na | na | ||||
| 10 C6BU-S | Quote Required | 16 In Stock | $32.69 | EA | Tube Fittings Division | na | 4500 psi | SAE J514 | Flareless Bite Type | na | Steel | Steel | na | na | Female Flareless Bite Type Swivel | na | Tube to Tube | 90° Elbow | Male Flareless Bite Type | 5/8 | 90 Durometer Nitrile | 5/8 | na | ||
| 10 CBU-S | 26 In Stock | 270 In Stock | $24.17 | EA | Tube Fittings Division | na | 0.07710347347122302 lb | 4500 psi | SAE J514 | Flareless Bite Type | na | Steel | Steel | na | na | Male NPTF | 1/2-14 | Tube to NPT | 90° Elbow | Male Flareless Bite Type | 5/8 | na | na | na | |
| 10 CBU-SS | 1 Limited Stock | Quote Required | $121.28 | EA | Tube Fittings Division | na | 0.12464028776978417 lb | 4500 psi | SAE J514 | Flareless Bite Type | na | Stainless Steel | Stainless Steel | na | na | Male NPTF | 1/2-14 | Tube to NPT | 90° Elbow | Male Flareless Bite Type | 5/8 | na | na | na | |
| 10 CC5BU-S | Quote Required | $119.64 | EA | Tube Fittings Division | na | 4500 psi | SAE J514 | Flareless Bite Type | na | Steel | Steel | na | na | Male SAE-ORB | 7/8-14 | Tube to SAE Straight Thread Long | 90° Elbow | Male Flareless Bite Type | 5/8 | 90 Durometer Nitrile | na | na | |||
| 10 DBU-S | Quote Required | 40 In Stock | $35.78 | EA | Tube Fittings Division | na | 3000 psi | SAE J514 | Flareless Bite Type | na | Steel | Steel | na | na | Female NPTF | 1/2-14 | Tube to NPT | 90° Elbow | Male Flareless Bite Type | 5/8 | na | na | na | ||
| 10 DBU-SS | Quote Required | $156.68 | EA | Tube Fittings Division | na | 3000 psi | SAE J514 | Flareless Bite Type | na | Stainless Steel | Stainless Steel | na | na | Female NPTF | 1/2-14 | Tube to NPT | 90° Elbow | Male Flareless Bite Type | 5/8 | na | na | na | |||
| 10 EBU-S | 3 In Stock | 299 In Stock | $37.12 | EA | Tube Fittings Division | na | 0.07491007194244605 lb | 4500 psi | SAE J514 | Flareless Bite Type | na | Steel | Steel | na | na | Male Flareless Bite Type | na | Tube to Tube | 90° Elbow | Male Flareless Bite Type | 5/8 | na | 5/8 | na | |
| 10 EBU-SS | Quote Required | $120.72 | EA | Tube Fittings Division | na | 0.12464028776978417 lb | 4500 psi | SAE J514 | Flareless Bite Type | na | Stainless Steel | Stainless Steel | na | na | Male Flareless Bite Type | na | Tube to Tube | 90° Elbow | Male Flareless Bite Type | 5/8 | na | 5/8 | na | ||
| 10 F5BU-S | 28 In Stock | 53 In Stock | $19.45 | EA | Tube Fittings Division | na | 0.062320143884892085 lb | 5000 psi | SAE J514 | Flareless Bite Type | na | Steel | Steel | na | na | Male SAE-ORB | 7/8-14 | Tube to SAE Straight Thread | Straight | Male Flareless Bite Type | 5/8 | 90 Durometer Nitrile | na | na | |
| 10 F5BU-S FKM | Quote Required | TBD | Tube Fittings Division | na | 5000 psi | SAE J514 | Flareless Bite Type | na | Steel | Steel | na | na | Male SAE-ORB | 7/8-14 | Tube to SAE Straight Thread | Straight | Male Flareless Bite Type | 5/8 | 90 Durometer Fluorocarbon | na | na | ||||
| 10 F5BU-SS | Quote Required | 2 Limited Stock | $109.48 | EA | Tube Fittings Division | na | 0.062320143884892085 lb | 5000 psi | SAE J514 | Flareless Bite Type | na | Stainless Steel | Stainless Steel | na | na | Male SAE-ORB | 7/8-14 | Tube to SAE Straight Thread | Straight | Male Flareless Bite Type | 5/8 | 90 Durometer Nitrile | na | na | |
| 10 FBU-S | 60 In Stock | 527 In Stock | $14.14 | EA | Tube Fittings Division | na | 4500 psi | SAE J514 | Flareless Bite Type | na | Steel | Steel | na | na | Male NPTF | 1/2-14 | Tube to NPT | Straight | Male Flareless Bite Type | 5/8 | na | na | na | ||
| 10 FBU-SS | Quote Required | 33 In Stock | $64.20 | EA | Tube Fittings Division | na | 0.07491007194244605 lb | 4500 psi | SAE J514 | Flareless Bite Type | na | Stainless Steel | Stainless Steel | na | na | Male NPTF | 1/2-14 | Tube to NPT | Straight | Male Flareless Bite Type | 5/8 | na | na | na | |
| 10 FNU-S | 27 In Stock | 76 In Stock | $17.28 | EA | Tube Fittings Division | na | 0.039568345323741004 lb | 5000 psi | SAE J514 | Flareless Bite Type | na | Steel | Steel | na | na | na | na | na | Cap | Female Flareless Bite Type Swivel | 5/8 | na | na | na | |
| 10 FNU-SS | Quote Required | TBD | Tube Fittings Division | na | 0.039568345323741004 lb | 5000 psi | SAE J514 | Flareless Bite Type | na | Stainless Steel | Stainless Steel | na | na | na | na | na | Cap | Female Flareless Bite Type Swivel | 5/8 | na | na | na |
