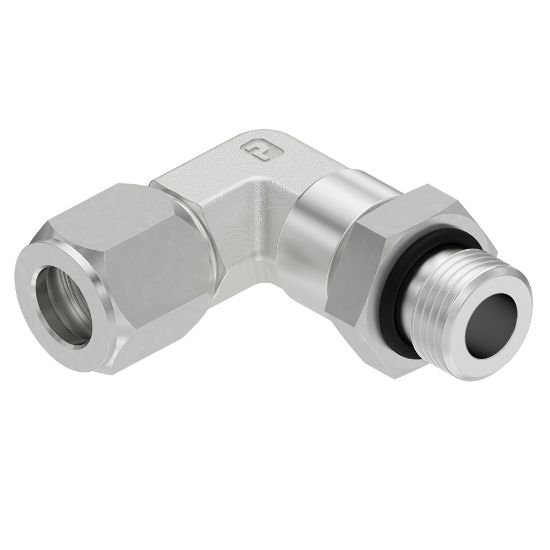

Parker 10 CC5BU-S - Ferulok 24° Flareless Fittings

Parker's Ferulok 24° Flareless fittings create a visible heavy bite allowing easy inspection and a rear compression grip which firmly holds the nut and tubing, dampening the effects of vibration.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10 CC5BU-S

$119.64

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Connection 4 Size	na	Maximum Dynamic Pressure	4500 psi
Specifications Met	SAE J514	Connection Type	Flareless Bite Type
Connection 4 Tube Outside Diameter	na	Body Material	Steel
Body Material	Steel	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Shape	90° Elbow
Connection 2 Thread Size (inch)	7/8-14	Connection 1 Style	Male Flareless Bite Type
Connection 2 Style	Male SAE-ORB	Connection 1 Tube O.D. (inch)	5/8
O-ring	90 Durometer Nitrile	Connection 2 Tube O.D. (inch)	na
Connection 3 Tube O.D. (inch)	na	Connection Style	Tube to SAE Straight Thread Long
