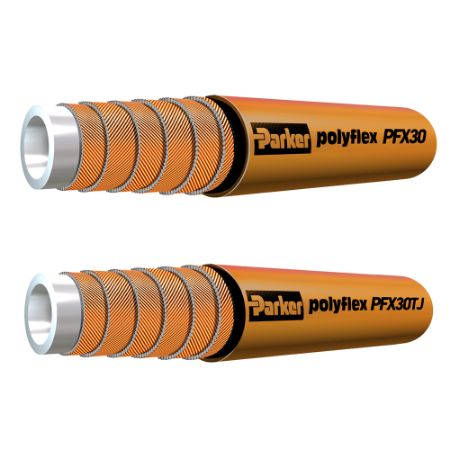

PFX30-05 UHP Hose - 43,645 psi
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker PFX30-05 Water Jetting Hose features a compact design to promote easy handling for operators and are used in high pressure water jetting applications. Features Parkers built in ColorGard™ sheath, giving operators easy visualization of core tube erosion for more efficient product inspections and reduced unscheduled downtime. These hoses often replace steel pipe where flexibility is important.
Markets:
• Industrial Cleaning
• All markets requiring pressures up to 43,000 psi for their cleaning applications
Features/Benefits:
• Low volumetric expansion
• Compact design promotes easy handling to reduce operator fatigue
• Compliant with DIN EN 1829-2
• Available with a TOUGHJACKET Cover for improved abrasion resistance
• ColorGard Technology for a more reliable and safer operation
Applications:
• Water jetting equipment
• High pressure power wash
• Industrial cleaning
• Hydroforming (compression forming process)
• Hydrodemolition
Read More...Markets:
• Industrial Cleaning
• All markets requiring pressures up to 43,000 psi for their cleaning applications
Features/Benefits:
• Low volumetric expansion
• Compact design promotes easy handling to reduce operator fatigue
• Compliant with DIN EN 1829-2
• Available with a TOUGHJACKET Cover for improved abrasion resistance
• ColorGard Technology for a more reliable and safer operation
Applications:
• Water jetting equipment
• High pressure power wash
• Industrial cleaning
• Hydroforming (compression forming process)
• Hydrodemolition
| Action | Part No. | Availability | Partner Available | Price | UOM | Hose Reinforcement Material | Outside Diameter | Minimum Operating Temperature | Hose Inner Tube Material | Application | Maximum Operating Pressure | Compatible Fitting | Specifications Met | Division | Design Factor | Minimum Bend Radius | Inside Diameter | Cover Color | Cover Material | Product Style | Weight | Maximum Operating Temperature | Size | Media | Notes | Hose Cover Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PFX30-05 | 366 In Stock | Quote Required | $40.32 | FT | 8 Spirals of Maximum Tensile Steel Wire | 0.736 inch | -10 °C | Polyoxymethylene (POM) | Water Jet Cutting | 301 MPa | 2X Series | DIN 1829-2 | Parflex Division | 2.3 | 11 inch | 7.8 mm | Orange | Polyurethane | Single Line | 0.64 lb/ft | 158 °F | -5 | Chemicals | Polyurethane Cover | ||
| PFX30-05-TJ | 299 In Stock | Quote Required | $44.35 | FT | 8 Spirals of Maximum Tensile Steel Wire | 0.894 inch | -10 °C | Polyoxymethylene (POM) | Waterblasting | 3010 bar | 2X Series | DIN 1829-2 | Parflex Division | 2.3 | 280 mm | 7.8 mm | Orange | Polyurethane | 1.10 kg/m | 70 °C | -5 | Water | TOUGHJACKET Polyurethane Cover | ToughJACKET™ |
