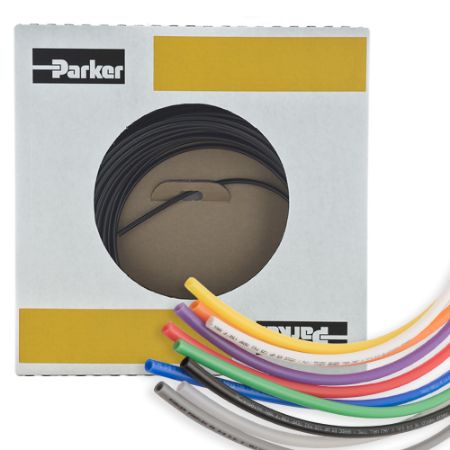

PE Tubing

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PE tubing is produced from a high molecular weight resin to provide increased dimensional stability, uniformity and long-term strength. Parker PE tubing meets the FDA and NSF-51 requirements for food contact applications and NSF-61 for potable water.

The tubing may be used in general-purpose instrument applications as well as all food handling applications except holding food during cooking. The black tubing, EB series, contains an ultraviolet inhibitor which is recommended for use in sunlit areas and in close proximity to high, ultraviolet light sources.
Standard black is not approved for food handling applications, but NSF-listed and FDA-compliant black can be ordered on special request. A tube support should be used with this tubing for maximum holding power where end loading, vibration or pressure spikes may occur.

Markets
• Water Market
• Food & Beverage
• Fluid Handling
• Industrial Pneumatics
• Chemical transfer

Features
• Made from 100% virgin resin material for long term strength
• ASTM D-1693 (10% IGEPAL) For excellent stress crack resistance maximizes the service life
• UV stabilized to reduce fading, cracking and loss of strength from sunlight
• Meets FDA, NSF-51 requirements for food contact applications and NSF-61 for potable water

Applications:
• Potable water
• Beverage dispensers
• Chemical transfer
• Low pressure pneumatics

Certifications/Compliance:
• FDA compliant for food contact
• ASTM D-1693 (10% IGEPAL) for stress crack resistance
• ASTM D-1248, Type I, Class A, Category 4, Grade E5
• NSF – 51
• NSF – 61

Notes:
• Qualified with fittings from Parker Fluid System Connectors Division (See PFD Catalog CAT. 4660 or FSC Catalog CAT3501E USA for specific fittings)
• Black (EB) tubing contains an ultraviolet inhibitor which is recommended for use in sunlit areas and in close proximity to high ultraviolet light source
• A tube support should be used with this tubing for maximum holding power where end loading, vibration or pressure
• Wall thickness is for reference only

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Length per Package	Specifications Met	Size	Maximum Operating Temperature	Color	Application	Tube Material	Maximum Operating Pressure	Division	Minimum Operating Temperature	Weight	Product Type	Minimum Burst Pressure	Minimum Bend Radius	Tube Inside Diameter	Media	Tube Outside Diameter	Cover Material	Cover Color	Compatible Fitting	Nominal Outside Diameter	Color	Standard Pack Qty (ft)	Product Type
E-108-0100	50 In Stock	1815 In Stock	$1.43/foot	FT	30 m	ASTM D1248	5/8 inch	66 °C	Natural	Pneumatics	Polyethylene (PE)	0.48 MPa	Parflex Division	-80 °F	0.065 kg/m	Fractional	19.3 bar	101.6 mm	0.5 inch	Air	5/8 inch	n/a	n/a	Flow Controls	5/8 inch	Natural	100	Fractional, Instr. Grade
E-10X1.5-0100	Quote Required	150 In Stock	$0.78/foot	FT	30 m	ASTM D1693	10 mm	66 °C	Natural	Chemicals	Polyethylene (PE)	8.6 bar	Parflex Division	-80 °F	0.026 lb/ft	Instr. Grade	34.5 bar	38 mm	7 mm	Water	0.394 inch	n/a	n/a	Prestomatic	10 mm	Natural	100	Metric, Instr. Grade
E-12X1.5-0100	Quote Required	617 In Stock	$1.01/foot	FT	30 m	ASTM D1693	12 mm	150 °F	Natural	Chemicals	Polyethylene (PE)	6.2 bar	Parflex Division	-62 °C	0.048 kg/m	Metric	400 psi	2-1/2 inch	0.354 inch	Water	0.472 inch	n/a		Prestolok®	12 mm	Natural	100	Metric, Instr. Grade
E-43-0100	3023 In Stock	24866 In Stock	$0.37/foot	FT	30 m Box	ASTM D1248	1/4 inch	150 °F	Natural	Chemicals	Polyethylene (PE)	120 psi	Parflex Division	-62 °C	0.011 lb/ft	Fractional	480 psi	25 mm	0.17 inch	Water	1/4 inch	n/a	n/a	Liquifit	1/4 inch	Natural	100 ft box	Fractional, Instr. Grade
E-43-0500	2508 In Stock	21339 In Stock	$0.31/foot	FT	152 m	NSF 61	1/4 inch	66 °C	Natural	Fluid Transfer	Polyethylene (PE)	0.83 MPa	Parflex Division	-62 °C	0.011 lb/ft	Fractional	480 psi	1 inch	4.3 mm	Water	6.4 mm	n/a	n/a	Flow Controls	1/4 inch	Natural	500	Fractional, Instr. Grade
E-43-1000	2635 In Stock	10581 In Stock	$0.28/foot	FT	305.0 m	FDA 21 CFR 177	1/4 inch	150 °F	Natural	Chemicals	Polyethylene (PE)	0.83 MPa	Parflex Division	-80 °F	0.16 kg/m	Fractional	33.1 bar	1 inch	0.17 inch	Air	6.4 mm	n/a	n/a	Poly-Tite	1/4 inch	Natural	1000	Fractional, Instr. Grade
E-43-B-0100	170 In Stock	4290 In Stock	$0.37/foot	FT	100 ft	ASTM D1693	1/4 inch	150 °F	Blue	Chemicals	Polyethylene (PE)	8.3 bar	Parflex Division	-80 °F	0.011 lb/ft	Instr. Grade	480 psi	1 inch	0.17 inch	Water	1/4 inch	n/a	n/a	Dubl-Barb®	1/4 inch	Blue	100 ft box	Fractional, Instr. Grade
E-43-B-0500	Quote Required	8064 In Stock	$0.31/foot	FT	500 ft	NSF 61	1/4 inch	150 °F	Blue	Chemicals	Polyethylene (PE)	8.3 bar	Parflex Division	-62 °C	0.16 kg/m	Fractional	480 psi	25 mm	4.3 mm	Water	6.4 mm	n/a	n/a	Liquifit	1/4 inch	Blue	500	Fractional, Instr. Grade
E-43-G-0100	Quote Required	138 In Stock	TBD	FT	100	FDA	1/4	150	Green	Fluid Transfer	Polyethylene (PE)	120	Parflex Division	-62	0.011	Instr. Grade	480	1	0.17	Air	1/4	n/a	n/a	Dubl-Barb®	1/4 inch	Green	100	Fractional, Instr. Grade
E-43-G-0500	Quote Required	1362 In Stock	$0.31/foot	FT	152 m	ASTM D1248	1/4 inch	150 °F	Green	Pneumatics	Polyethylene (PE)	120 psi	Parflex Division	-80 °F	0.011 lb/ft	Fractional	33.1 bar	1 inch	4.3 mm	Water (Potable Water)	6.4 mm	n/a	n/a	Flow Controls	1/4 inch	Green	500	Fractional, Instr. Grade
E-43-O-0500	Quote Required	3013 In Stock	$0.44/foot	FT	152 m	NSF 61	1/4 inch	150 °F	Orange	Pneumatics	Polyethylene (PE)	120 psi	Parflex Division	-62 °C	0.16 kg/m	Fractional	480 psi	25 mm	0.17 inch	Water	6.4 mm	n/a	n/a	Compress-Align®	1/4 inch	Orange	500	Fractional, Instr. Grade
E-43-P-0500	Quote Required	1601 In Stock	$0.37/foot	FT	500 ft	ASTM D1693	1/4 inch	150 °F	Purple	Chemicals	Polyethylene (PE)	8.3 bar	Parflex Division	-62 °C	0.16 kg/m	Fractional	480 psi	25 mm	0.17 inch	Water	6.4 mm	n/a	n/a	TrueSeal™	1/4 inch	Purple	500	Fractional, Instr. Grade
E-43-R-0100	37 In Stock	Quote Required	$0.26/foot	FT	100	FDA	1/4	150	Red	Fluid Transfer	Polyethylene (PE)	8.3	Parflex Division	-62	0.011	Instr. Grade	480	1	0.17	Air	1/4	n/a	n/a	Dubl-Barb®	1/4 inch	Red	100	Fractional, Instr. Grade
E-43-R-0500	894 In Stock	3712 In Stock	$0.31/foot	FT	500 ft	NSF 51	1/4 inch	66 °C	Red	Fluid Transfer	Polyethylene (PE)	120 psi	Parflex Division	-62 °C	0.011 lb/ft	Fractional	33.1 bar	1 inch	4.3 mm	Water (Potable Water)	6.4 mm	n/a	n/a	Liquifit	1/4 inch	Red	500	Fractional, Instr. Grade
E-43-WHT-0100	Quote Required	Quote Required	TBD	FT	100	FDA	1/4	150	White	Fluid Transfer	Polyethylene (PE)	120	Parflex Division	-62	0.011	Instr. Grade	480	1	0.17	Air	1/4	n/a	n/a	Dubl-Barb®	1/4 inch	White	100	Fractional, Instr. Grade
E-43-WHT-0500	Quote Required	873 In Stock	$0.37/foot	FT	152 m	NSF 61	1/4 inch	150 °F	White	Pneumatics	Polyethylene (PE)	8.3 bar	Parflex Division	-80 °F	0.011 lb/ft	Instr. Grade	480 psi	25 mm	4.3 mm	Water (Potable Water)	6.4 mm	n/a	n/a	Poly-Tite	1/4 inch	White	500	Fractional, Instr. Grade
E-43-Y-0100	Quote Required	Quote Required	TBD	FT	100	FDA	1/4	150	Yellow	Fluid Transfer	Polyethylene (PE)	120	Parflex Division	-62	0.011	Instr. Grade	480	1	0.17	Air	1/4	n/a	n/a	Dubl-Barb®	1/4 inch	Yellow	100	Fractional, Instr. Grade
E-43-Y-0500	150 In Stock	15920 In Stock	$0.31/foot	FT	500 ft	NSF 61	1/4 inch	150 °F	Yellow	Pneumatics	Polyethylene (PE)	120 psi	Parflex Division	-62 °C	0.011 lb/ft	Fractional	480 psi	25 mm	4.3 mm	Air	6.4 mm	n/a	n/a	Prestolok®	1/4 inch	Yellow	500	Fractional, Instr. Grade
E-53-0100	Quote Required	Quote Required	TBD	FT	100 ft	NSF 51	5/16 inch	150 °F	Natural	Fluid Transfer	Polyethylene (PE)	0.100 MPa	Parflex Division	-80 °F	0.030 kg/m	Fractional	40 bar	1.13 inch	0.187 inch	Water (Potable Water)	5/16 inch	n/a	n/a	SAE Cartridges	5/16 inch	Natural	100	Fractional, Instr. Grade
E-53-0500	331 In Stock	4763 In Stock	$0.48/foot	FT	500 ft	NSF 51	5/16 inch	66 °C	Natural	Fluid Transfer	Polyethylene (PE)	0.100 MPa	Parflex Division	-80 °F	0.030 kg/m	Fractional	580 psi	1.13 inch	0.187 inch	Water (Potable Water)	7.9 mm	n/a	n/a	Prestolok®	5/16 inch	Natural	500	Fractional, Instr. Grade
