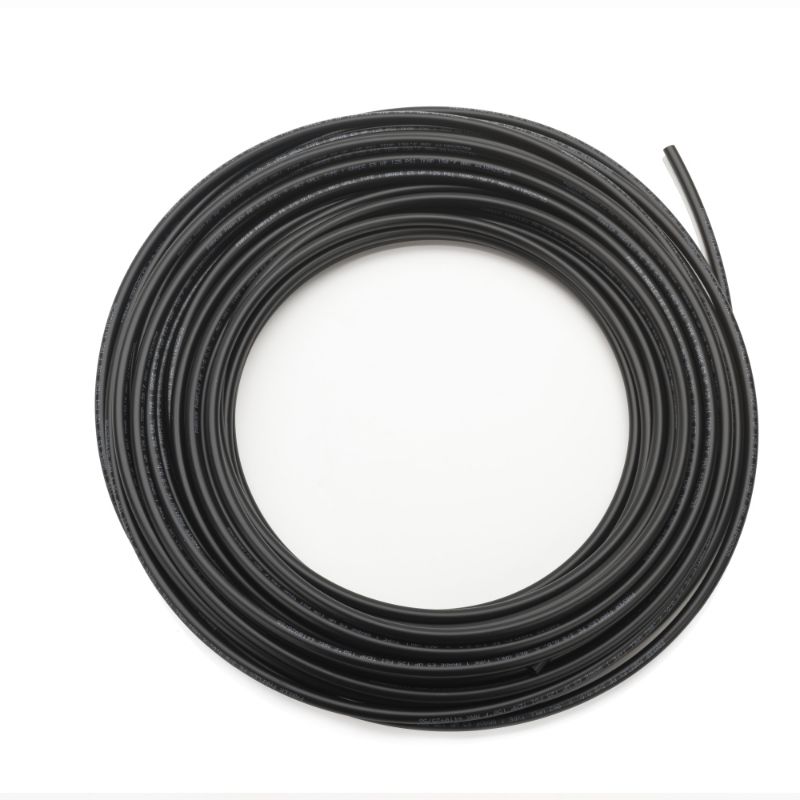

Parker E-12X1.5-0100 - PE Tubing

Polyethylene Tubing - E/EB Series Tubing is instrument grade tubing, made from 100% virgin Linear Low Density Polyethylene (LLDPE). Ideal for water, food, beverages and food grade applications.

AFP Availability:	Quote Required
Partner Available:	617 In Stock

Brand Parker

Part No. E-12X1.5-0100

$1.01/each

Products specifications

Attribute name	Attribute value
Size	12 mm	Minimum Burst Pressure	400 psi
Maximum Operating Temperature	150 °F	Compatible Fitting	Prestolok®
Media	Water	Minimum Operating Temperature	-62 °C
Application	Chemicals	Product Type	Metric
Cover Material	n/a	Tube Outside Diameter	0.472 inch
Length per Package	30 m	Tube Material	Polyethylene (PE)
Specifications Met	ASTM D1693	Minimum Bend Radius	2-1/2 inch
Maximum Operating Pressure	6.2 bar	Color	Natural
Weight	0.048 kg/m	Tube Inside Diameter	0.354 inch
Division	Parflex Division	Color	Natural
Product Type	Metric, Instr. Grade	Standard Pack Qty (ft)	100
Nominal Outside Diameter	12 mm
