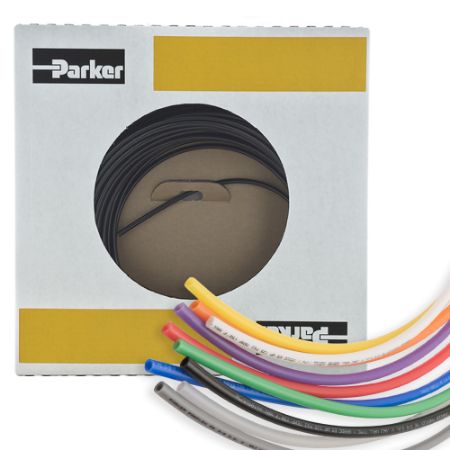

PE Tubing

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PE tubing is produced from a high molecular weight resin to provide increased dimensional stability, uniformity and long-term strength. Parker PE tubing meets the FDA and NSF-51 requirements for food contact applications and NSF-61 for potable water.

The tubing may be used in general-purpose instrument applications as well as all food handling applications except holding food during cooking. The black tubing, EB series, contains an ultraviolet inhibitor which is recommended for use in sunlit areas and in close proximity to high, ultraviolet light sources.
Standard black is not approved for food handling applications, but NSF-listed and FDA-compliant black can be ordered on special request. A tube support should be used with this tubing for maximum holding power where end loading, vibration or pressure spikes may occur.

Markets
• Water Market
• Food & Beverage
• Fluid Handling
• Industrial Pneumatics
• Chemical transfer

Features
• Made from 100% virgin resin material for long term strength
• ASTM D-1693 (10% IGEPAL) For excellent stress crack resistance maximizes the service life
• UV stabilized to reduce fading, cracking and loss of strength from sunlight
• Meets FDA, NSF-51 requirements for food contact applications and NSF-61 for potable water

Applications:
• Potable water
• Beverage dispensers
• Chemical transfer
• Low pressure pneumatics

Certifications/Compliance:
• FDA compliant for food contact
• ASTM D-1693 (10% IGEPAL) for stress crack resistance
• ASTM D-1248, Type I, Class A, Category 4, Grade E5
• NSF – 51
• NSF – 61

Notes:
• Qualified with fittings from Parker Fluid System Connectors Division (See PFD Catalog CAT. 4660 or FSC Catalog CAT3501E USA for specific fittings)
• Black (EB) tubing contains an ultraviolet inhibitor which is recommended for use in sunlit areas and in close proximity to high ultraviolet light source
• A tube support should be used with this tubing for maximum holding power where end loading, vibration or pressure
• Wall thickness is for reference only

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	Application	Minimum Operating Temperature	Minimum Bend Radius	Product Type	Cover Material	Specifications Met	Tube Material	Weight	Length per Package	Tube Outside Diameter	Color	Maximum Operating Pressure	Cover Color	Tube Inside Diameter	Maximum Operating Temperature	Division	Media	Compatible Fitting	Size	Minimum Burst Pressure	Nominal Outside Diameter	Color	Standard Pack Qty (ft)	Product Type
E-108-0100	50 In Stock	1755 In Stock	$1.43/each	Pneumatics	-80 °F	101.6 mm	Fractional	n/a	ASTM D1248	Polyethylene (PE)	0.065 kg/m	30 m	5/8 inch	Natural	0.48 MPa	n/a	0.5 inch	66 °C	Parflex Division	Air	Flow Controls	5/8 inch	19.3 bar	5/8 inch	Natural	100	Fractional, Instr. Grade
E-10X1.5-0100	Quote Required	50 In Stock	$0.78/each	Chemicals	-80 °F	38 mm	Instr. Grade	n/a	ASTM D1693	Polyethylene (PE)	0.026 lb/ft	30 m	0.394 inch	Natural	8.6 bar	n/a	7 mm	66 °C	Parflex Division	Water	Prestomatic	10 mm	34.5 bar	10 mm	Natural	100	Metric, Instr. Grade
E-12X1.5-0100	Quote Required	617 In Stock	$1.01/each	Chemicals	-62 °C	2-1/2 inch	Metric	n/a	ASTM D1693	Polyethylene (PE)	0.048 kg/m	30 m	0.472 inch	Natural	6.2 bar		0.354 inch	150 °F	Parflex Division	Water	Prestolok®	12 mm	400 psi	12 mm	Natural	100	Metric, Instr. Grade
E-43-0100	3209 In Stock	22831 In Stock	$0.37/each	Chemicals	-62 °C	25 mm	Fractional	n/a	ASTM D1248	Polyethylene (PE)	0.011 lb/ft	30 m Box	1/4 inch	Natural	120 psi	n/a	0.17 inch	150 °F	Parflex Division	Water	Liquifit	1/4 inch	480 psi	1/4 inch	Natural	100 ft box	Fractional, Instr. Grade
E-43-0500	2008 In Stock	23416 In Stock	$0.31/each	Fluid Transfer	-62 °C	1 inch	Fractional	n/a	NSF 61	Polyethylene (PE)	0.011 lb/ft	152 m	6.4 mm	Natural	0.83 MPa	n/a	4.3 mm	66 °C	Parflex Division	Water	Flow Controls	1/4 inch	480 psi	1/4 inch	Natural	500	Fractional, Instr. Grade
E-43-1000	2627 In Stock	10579 In Stock	$0.28/each	Chemicals	-80 °F	1 inch	Fractional	n/a	FDA 21 CFR 177	Polyethylene (PE)	0.16 kg/m	305.0 m	6.4 mm	Natural	0.83 MPa	n/a	0.17 inch	150 °F	Parflex Division	Air	Poly-Tite	1/4 inch	33.1 bar	1/4 inch	Natural	1000	Fractional, Instr. Grade
E-43-B-0100	470 In Stock	3961 In Stock	$0.37/each	Chemicals	-80 °F	1 inch	Instr. Grade	n/a	ASTM D1693	Polyethylene (PE)	0.011 lb/ft	100 ft	1/4 inch	Blue	8.3 bar	n/a	0.17 inch	150 °F	Parflex Division	Water	Dubl-Barb®	1/4 inch	480 psi	1/4 inch	Blue	100 ft box	Fractional, Instr. Grade
E-43-B-0500	Quote Required	9575 In Stock	$0.31/each	Chemicals	-62 °C	25 mm	Fractional	n/a	NSF 61	Polyethylene (PE)	0.16 kg/m	500 ft	6.4 mm	Blue	8.3 bar	n/a	4.3 mm	150 °F	Parflex Division	Water	Liquifit	1/4 inch	480 psi	1/4 inch	Blue	500	Fractional, Instr. Grade
E-43-G-0100	Quote Required	138 In Stock	$0.20/each	Fluid Transfer	-62	1	Instr. Grade	n/a	FDA	Polyethylene (PE)	0.011	100	1/4	Green	120	n/a	0.17	150	Parflex Division	Air	Dubl-Barb®	1/4	480	1/4 inch	Green	100	Fractional, Instr. Grade
E-43-G-0500	Quote Required	1162 In Stock	$0.31/each	Pneumatics	-80 °F	1 inch	Fractional	n/a	ASTM D1248	Polyethylene (PE)	0.011 lb/ft	152 m	6.4 mm	Green	120 psi	n/a	4.3 mm	150 °F	Parflex Division	Water (Potable Water)	Flow Controls	1/4 inch	33.1 bar	1/4 inch	Green	500	Fractional, Instr. Grade
E-43-O-0500	Quote Required	2918 In Stock	$0.44/each	Pneumatics	-62 °C	25 mm	Fractional	n/a	NSF 61	Polyethylene (PE)	0.16 kg/m	152 m	6.4 mm	Orange	120 psi	n/a	0.17 inch	150 °F	Parflex Division	Water	Compress-Align®	1/4 inch	480 psi	1/4 inch	Orange	500	Fractional, Instr. Grade
E-43-P-0500	Quote Required	1601 In Stock	$0.37/each	Chemicals	-62 °C	25 mm	Fractional	n/a	ASTM D1693	Polyethylene (PE)	0.16 kg/m	500 ft	6.4 mm	Purple	8.3 bar	n/a	0.17 inch	150 °F	Parflex Division	Water	TrueSeal™	1/4 inch	480 psi	1/4 inch	Purple	500	Fractional, Instr. Grade
E-43-R-0100	37 In Stock	Quote Required	$0.26/each	Fluid Transfer	-62	1	Instr. Grade	n/a	FDA	Polyethylene (PE)	0.011	100	1/4	Red	8.3	n/a	0.17	150	Parflex Division	Air	Dubl-Barb®	1/4	480	1/4 inch	Red	100	Fractional, Instr. Grade
E-43-R-0500	394 In Stock	4318 In Stock	$0.31/each	Fluid Transfer	-62 °C	1 inch	Fractional	n/a	NSF 51	Polyethylene (PE)	0.011 lb/ft	500 ft	6.4 mm	Red	120 psi	n/a	4.3 mm	66 °C	Parflex Division	Water (Potable Water)	Liquifit	1/4 inch	33.1 bar	1/4 inch	Red	500	Fractional, Instr. Grade
E-43-WHT-0100	Quote Required	Quote Required	TBD	Fluid Transfer	-62	1	Instr. Grade	n/a	FDA	Polyethylene (PE)	0.011	100	1/4	White	120	n/a	0.17	150	Parflex Division	Air	Dubl-Barb®	1/4	480	1/4 inch	White	100	Fractional, Instr. Grade
E-43-WHT-0500	Quote Required	873 In Stock	$0.37/each	Pneumatics	-80 °F	25 mm	Instr. Grade	n/a	NSF 61	Polyethylene (PE)	0.011 lb/ft	152 m	6.4 mm	White	8.3 bar	n/a	4.3 mm	150 °F	Parflex Division	Water (Potable Water)	Poly-Tite	1/4 inch	480 psi	1/4 inch	White	500	Fractional, Instr. Grade
E-43-Y-0100	Quote Required	Quote Required	TBD	Fluid Transfer	-62	1	Instr. Grade	n/a	FDA	Polyethylene (PE)	0.011	100	1/4	Yellow	120	n/a	0.17	150	Parflex Division	Air	Dubl-Barb®	1/4	480	1/4 inch	Yellow	100	Fractional, Instr. Grade
E-43-Y-0500	150 In Stock	16707 In Stock	$0.31/each	Pneumatics	-62 °C	25 mm	Fractional	n/a	NSF 61	Polyethylene (PE)	0.011 lb/ft	500 ft	6.4 mm	Yellow	120 psi	n/a	4.3 mm	150 °F	Parflex Division	Air	Prestolok®	1/4 inch	480 psi	1/4 inch	Yellow	500	Fractional, Instr. Grade
E-53-0100	Quote Required	Quote Required	TBD	Fluid Transfer	-80 °F	1.13 inch	Fractional	n/a	NSF 51	Polyethylene (PE)	0.030 kg/m	100 ft	5/16 inch	Natural	0.100 MPa	n/a	0.187 inch	150 °F	Parflex Division	Water (Potable Water)	SAE Cartridges	5/16 inch	40 bar	5/16 inch	Natural	100	Fractional, Instr. Grade
E-53-0500	331 In Stock	4790 In Stock	$0.48/each	Fluid Transfer	-80 °F	1.13 inch	Fractional	n/a	NSF 51	Polyethylene (PE)	0.030 kg/m	500 ft	7.9 mm	Natural	0.100 MPa	n/a	0.187 inch	66 °C	Parflex Division	Water (Potable Water)	Prestolok®	5/16 inch	580 psi	5/16 inch	Natural	500	Fractional, Instr. Grade
