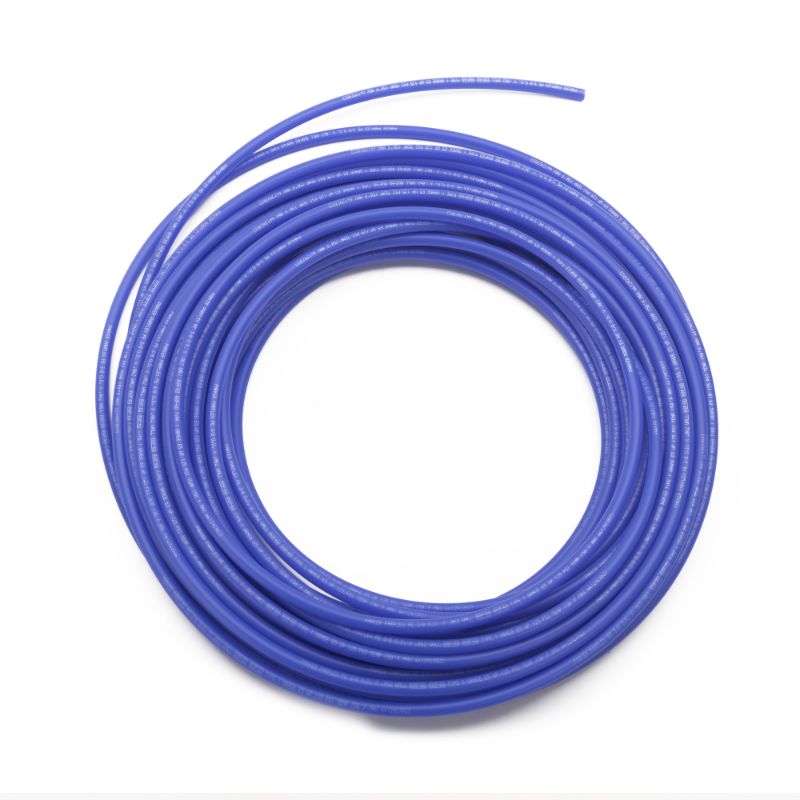

Parker E-43-B-0500 - PE Tubing

Polyethylene Tubing - E/EB Series Tubing is instrument grade tubing, made from 100% virgin Linear Low Density Polyethylene (LLDPE). Ideal for water, food, beverages and food grade applications.

AFP Availability:	Quote Required
Partner Available:	9575 In Stock

Brand Parker

Part No. E-43-B-0500

$0.31/each

Products specifications

Attribute name	Attribute value
Compatible Fitting	Liquifit	Size	1/4 inch
Media	Water	Minimum Operating Temperature	-62 °C
Application	Chemicals	Product Type	Fractional
Cover Material	n/a	Tube Outside Diameter	6.4 mm
Length per Package	500 ft	Minimum Bend Radius	25 mm
Tube Material	Polyethylene (PE)	Specifications Met	NSF 61
Color	Blue	Weight	0.16 kg/m
Maximum Operating Pressure	8.3 bar	Tube Inside Diameter	4.3 mm
Division	Parflex Division	Cover Color	n/a
Minimum Burst Pressure	480 psi	Maximum Operating Temperature	150 °F
Nominal Outside Diameter	1/4 inch	Standard Pack Qty (ft)	500
Color	Blue	Product Type	Fractional, Instr. Grade
