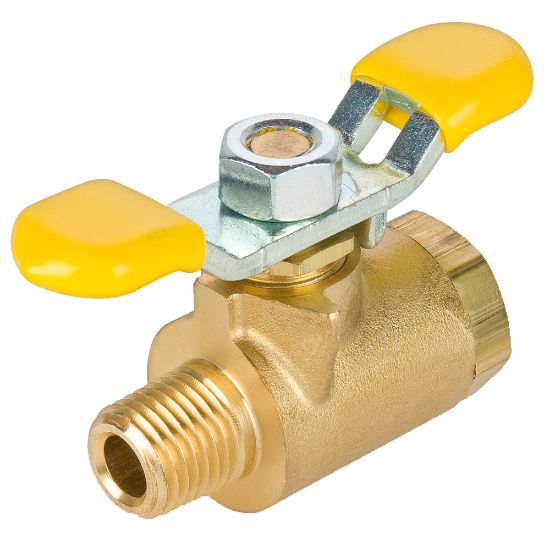

Parker XV501PCHP-4 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. XV501PCHP-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Type	NPT	Minimum Operating Temperature	0 °F
Division	Fluid System Connectors Division	Body Material	Brass
Ball Material	Chrome Plated Brass	Maximum Operating Temperature	176 °C
Seat Material	PTFE	Maximum Operating Pressure	138 bar
Locking Mechanism	Non-Locking	Connection 1 Solder O.D. (inch)	na
Connection 2 Thread Size (inch)	1/4	Shape	In Line
Vented	No	Connection 2 Solder O.D. (inch)	na
Connection 2 Thread Style	Female Pipe	Style	Female/Male
Handle	Steel Tee	Connection 1 Thread Size (inch)	1/4
Maximum Working Pressure (psi)	2000	Connection 1 Thread Style	Male Pipe

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
