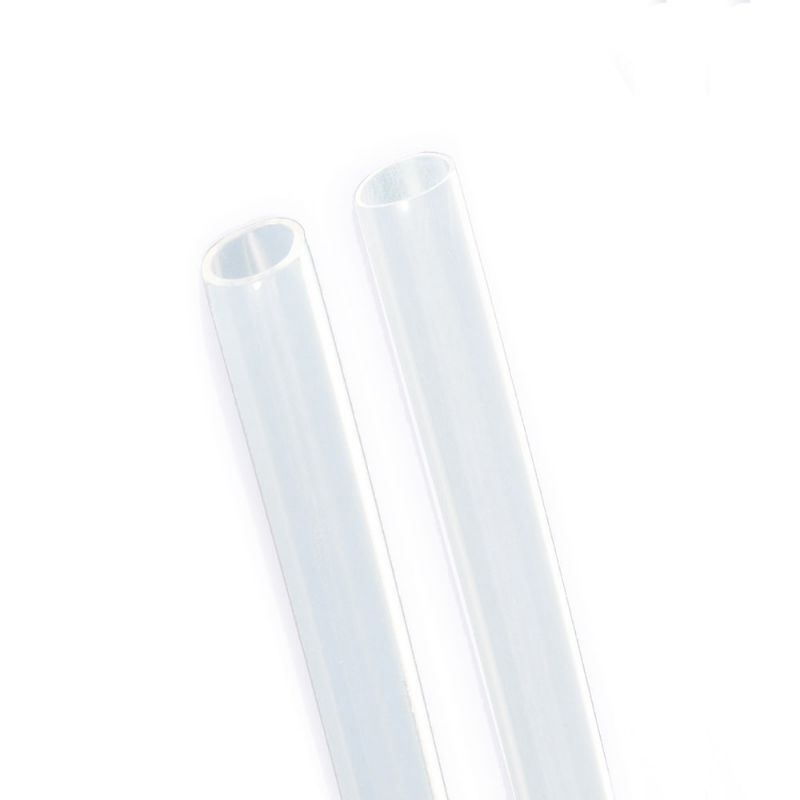

Picture of Parker 204-0400100-NT-50 - PFA Tubing

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 204-0400100-NT-50 - PFA Tubing

PFA Tubing - Series 104 and 204 are used when temperature and clarity are both factors. PFA tubing withstands the same high-temperatures as PTFE tubing but, like FEP tubing, is very clear and available in long continuous lengths.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 204-0400100-NT-50
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAMaximum Operating Temperature260 °C
MediaChemicalsSpecifications MetUSP Class VI
ColorClearLength per Package15.2 m
Minimum Bend Radius13 mmMinimum Burst Pressure80 bar
Maximum Operating Pressure20 barMinimum Operating Temperature-75 °C
ApplicationAirTube MaterialPerfluoroalkoxy Alkanes (PFA)
Product TypeMetricTube Outside Diameter4 mm
Compatible FittingMetric CompressionTube Inside Diameter2 mm
Weight0.020 kg/mStandard Pack Qty (ft)50.0
Order Size4MMProduct TypeMetric
Tube Wall Thickness1Tube Inside Diameter2
Tube Outside Diameter4
