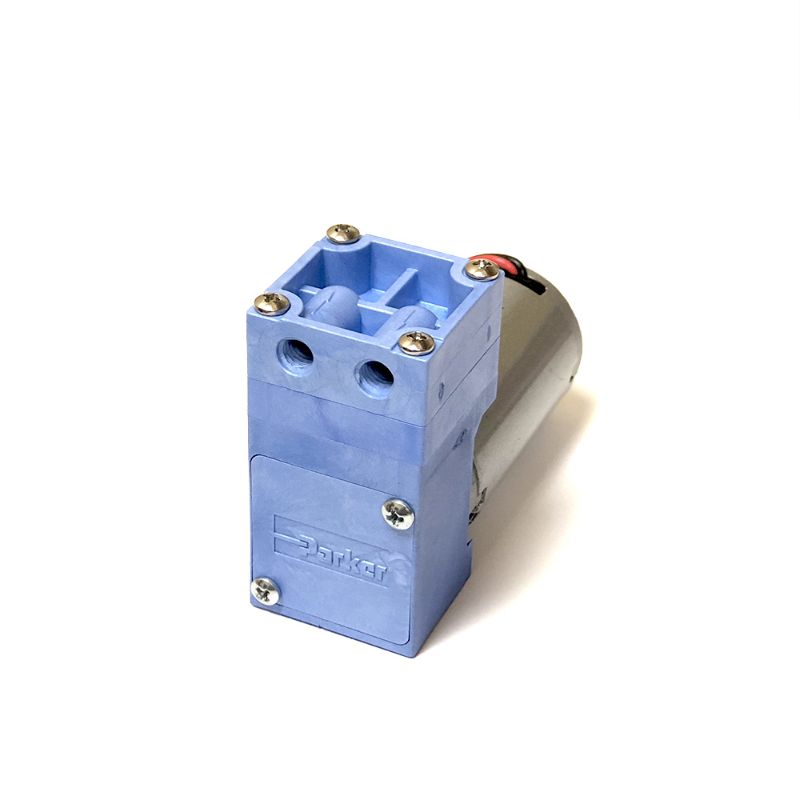

Parker W309-11 - LTC Miniature Diaphragm Pump (Liquid)

Parker’s LTC Miniature Diaphragm pump is a compact versatile pump with the option of a brush or brushless DC motor drives that can be configured for specific requirements and handle a wide variety of liquid media and range of pressures.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. W309-11

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Precision Fluidics Division	Weight	198 g
For Fluid Type	Gas	Flow Rate	up to 0.7 L/min
Vacuum Pressure Rating	-8.4 psi	Width	1.18 inch
Operating Temperature	5 to 50 °C	Maximum Continuous Vacuum Pressure	-8.4 psi
Industry Application	Urinalysis	Length	77.5 mm
Operating Pressure	30 psi	Motor Type	Iron Core Brush DC
Operational Life	3000 Hours	Diaphragm Material	EPDM
Maximum Continuous Pressure	30 psi	Body Material	Vectra A130 LCP
Product Type	Diaphragm Pump	Noise Level	45 dBA
Height	57.2 mm	Connection Style	Threaded 1/4-28 UNF
Pump Size	Single Head	Operational Life	3,000 Hours
Pump Type	Pressure and/or Vacuum	Free Flow Rate	Up to 0.7 L/min
Motor Option	Iron Core Brush DC
