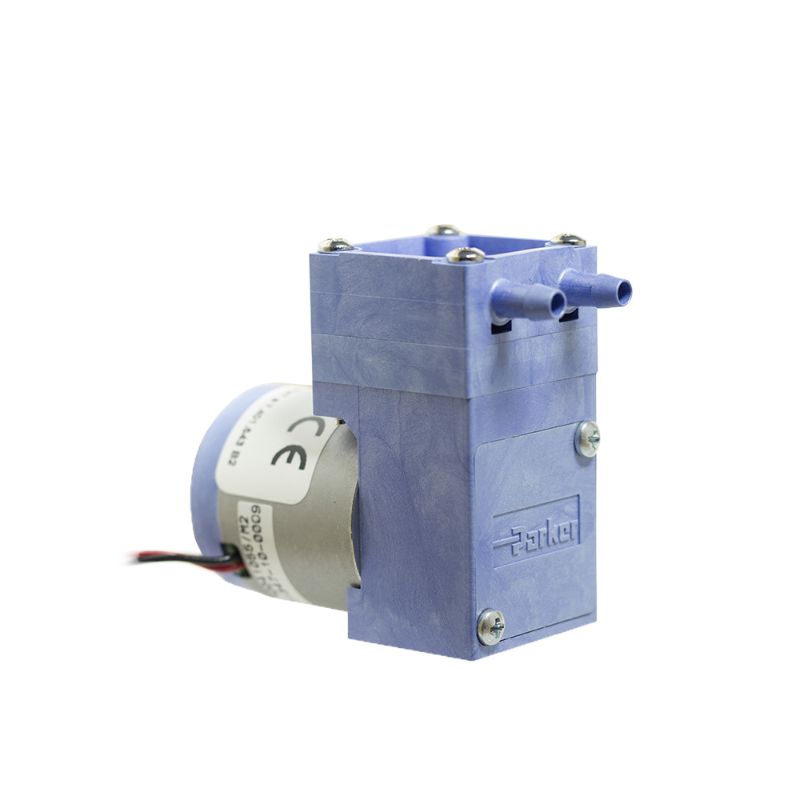

Parker W312-61 - LTC Miniature Diaphragm Pump (Liquid)

Parker’s LTC Miniature Diaphragm pump is a compact versatile pump with the option of a brush or brushless DC motor drives that can be configured for specific requirements and handle a wide variety of liquid media and range of pressures.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. W312-61

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operating Pressure	30 psi	Length	2.16 inch
Product Type	Diaphragm Pump	Maximum Continuous Pressure	2068 mbar
Industry Application	Wash and Waste Circuits	Diaphragm Material	EPDM
Body Material	Vectra A130 LCP	Noise Level	45 dBA
For Fluid Type	Gas	Flow Rate	up to 0.7 L/min
Division	Precision Fluidics Division	Motor Type	Compact Brushless DC
Operating Temperature	5 to 50 °C	Width	1.18 inch
Operational Life	10000 Hours	Height	2.25 inch
Vacuum Pressure Rating	-8.4 psi	Weight	142 g
Maximum Continuous Vacuum Pressure	-8.4 psi	Free Flow Rate	Up to 0.7 L/min
Pump Type	Pressure and/or Vacuum	Pump Size	Single Head
Operational Life	10,000 Hours	Motor Option	Compact Brushless DC
Connection Style	Barb 1/8" ID or 4 mm ID Tubing
