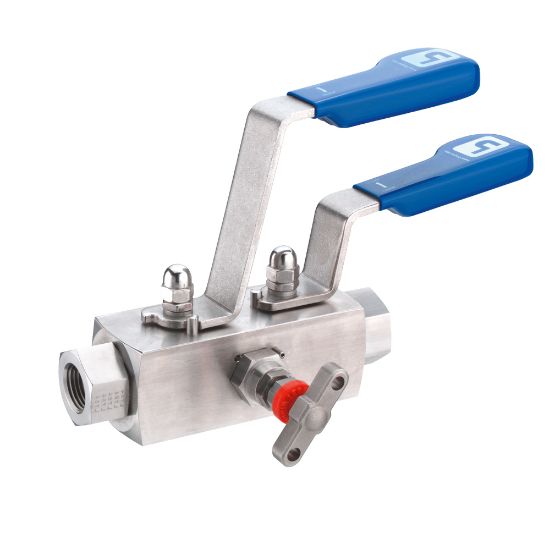

Parker HPM6L6253DBBB - Manifold - Hi-Pro Series

This series of manifolds combines isolate in the form of a ball valve and bleed/vent in a choice of ball or needle into one block for interface with pressure measurement transmitters, gauges and switches for applications up to 10,000 psi (689 bar)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HPM6L6253DBBB

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	414	Additional Options	BSPTr, BSPP, BW, SW, PTFree Connection styles
Outlet Connection Size	1/2" NPT Female	Materials of Construction	Inconel 625
Division	Instrumentation Products Division	Configuration	Double Block and Bleed
Valve Type	Ball-Ball-Ball	Vent Size	1/4" NPT Female
Number of Valves	3 Valve	Valve Configuration	Double Block and Bleed
Packing Material	PTFE as standard, graphite optional	Inlet Connection Size	1/2" NPT Female
Maximum Working Pressure (psi)	6000	Material	Inconel 625
Valve Type	Ball-Ball-Ball	Valve Configuration Type	Double Block and Bleed
