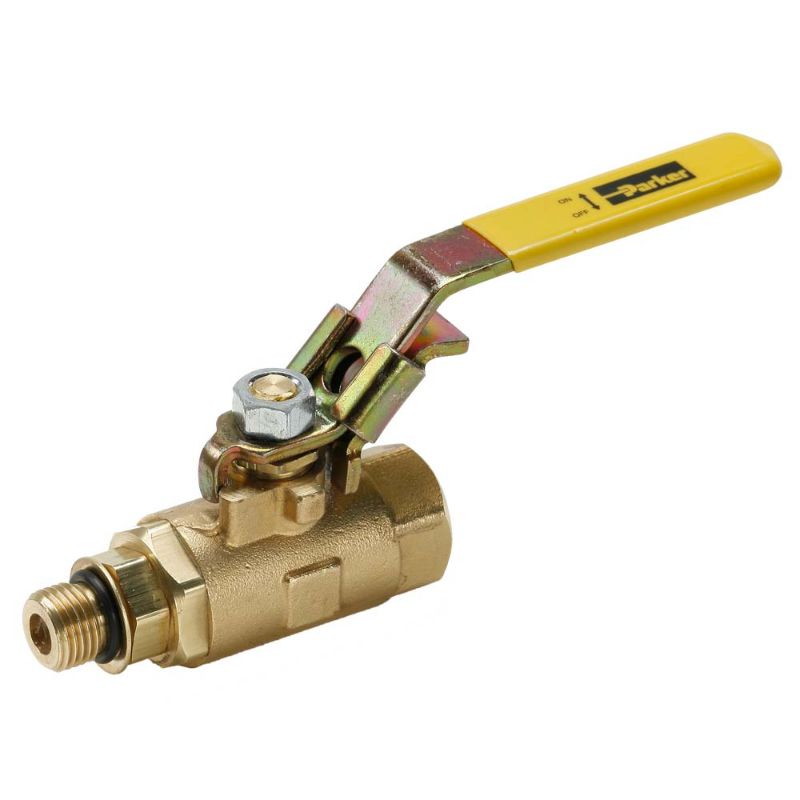

Parker VP510P-12 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VP510P-12

$170.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Product Type	Brass Series 510 Ball Valve
Shape	In-line	Body Material	Brass
Maximum Flow Rate	13	Minimum Operating Temperature	0
Operation Type	n/a	Connection Size	3/4
Maximum Operating Pressure	41	Orifice Size	.66
Seal Material	PTFE	Actuation Type	Manual
Configuration	Male-Female STO SAE J1926	Seat Material	PTFE
Division	Fluid System Connectors Division	Connection Type	NPT, Straight Thread Solder
Handle Type	Lever	Function	2-Way, Normally Closed, Normally Open
Mounting Type	Panel, In-Line	Maximum Operating Temperature	350
Ball Material	Chrome Plated Brass	Connection 2 Thread Style	Male Straight Thread
Locking Mechanism	Padlock	Style	Female Straight Thread to Male Straight Thread
Maximum Working Pressure (psi)	600	Connection 2 Thread Size (inch)	1 1/16-12
Connection 1 Thread Style	Female Straight Thread	Vented	No
Handle	Steel Lever	Shape	In Line
Connection 1 Thread Size (inch)	1 1/16-12	Connection 1 Solder O.D. (inch)	na
Connection 2 Solder O.D. (inch)	na
