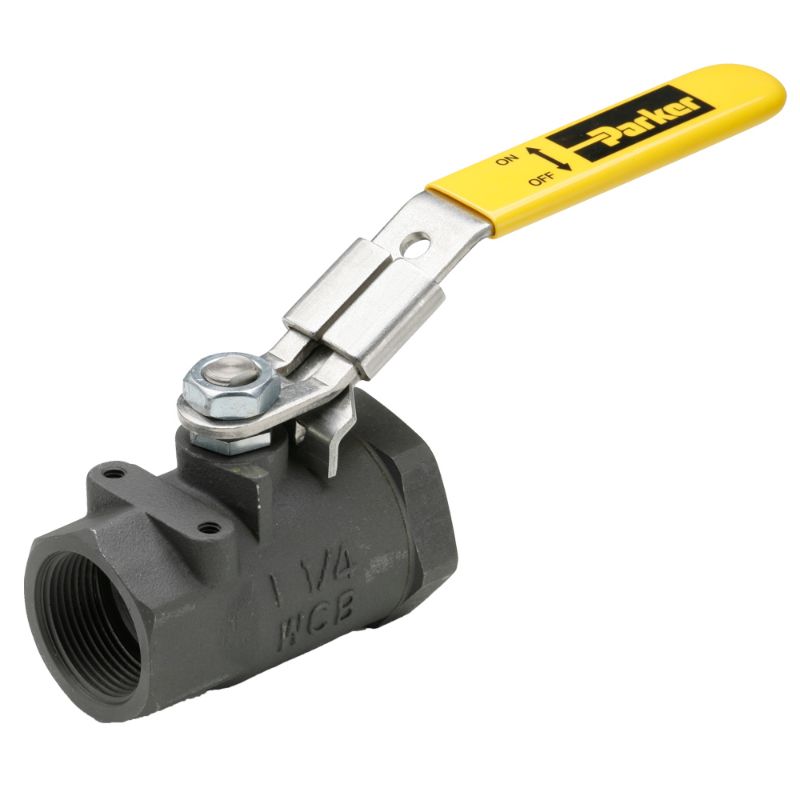

Parker VP502CS-24 - Industrial Ball Valves - Carbon Steel

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VP502CS-24

$259.38

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	425
Minimum Operating Temperature	-20	Actuation Type	Manual
Specifications Met	N/A	Division	Fluid System Connectors Division
Body Material	Carbon Steel	Maximum Flow Rate	n/a
Operation Type	n/a	Connection Type	NPT, Straight Thread, SAE J1926-1
Connection Size	1 1/2	Function	Ball Valve
Maximum Operating Pressure	103	Configuration	In-line
Handle Type	Lever	Orifice Size	n/a
Shape	In-Line	Mounting Type	Panel
Ball Material	Steel	Product Type	Ball Valve
Seal Material	PTFE	Seat Material	PTFE
Handle	Steel Lever	Shape	Panel mount
Connection 2 Thread Size (inch)	1 1/2	Style	Female Pipe Ends
Connection 1 Thread Size (inch)	1 1/2	Connection 1 Thread Style	Female Pipe
Maximum Working Pressure (psi)	1500	Connection 2 Thread Style	Female Pipe
Locking Mechanism	Padlock
