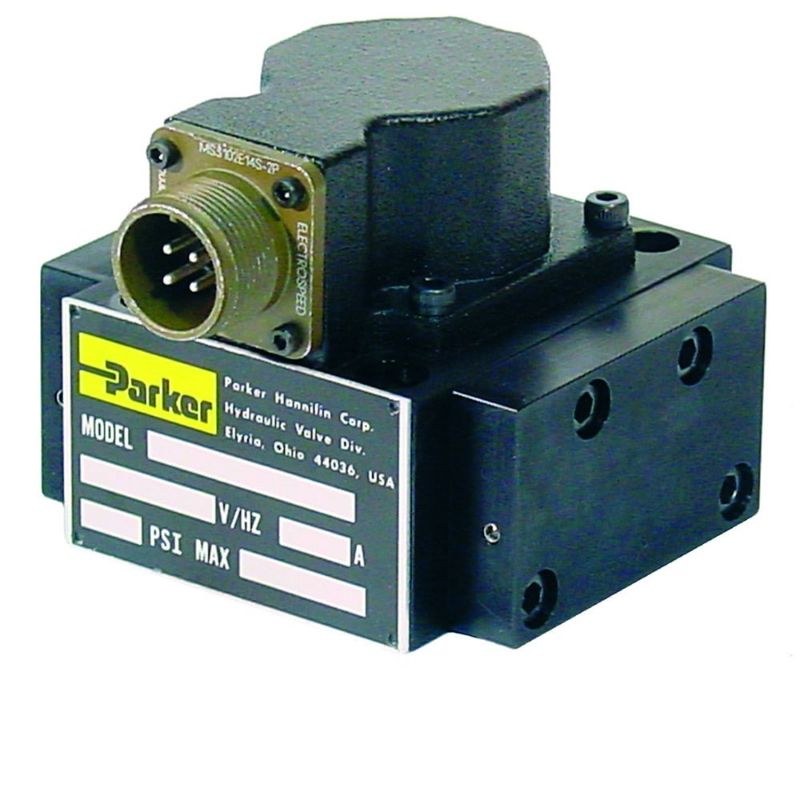

Parker SE20HAAHPVA10 - Two-stage, 4 way, Flapper and Nozzle Servovalve - SE20 Series

Parker’s SE20 series valve is a two stage, 4-way, flapper and nozzle style servovalve.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SE20HAAHPVA10

$21,300.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Actuation Type	Hydraulic Pressure	Weight	2.2 lb
Maximum Operating Pressure	315 bar	Signal Input	High
Resistance	200 Ohms; 15 mA (Parallel); 7.5 mA (Series) ohm-cm	Valve Type	Servovalve
Pilot Port Type	Internal	Additional Options	Consult catalog for Additional features
Connection Type	Port P; (+) signal to A, C	Division	Hydraulic Valve Systems Division
Maximum Operating Temperature	+140 °F	Body Material	Aluminum
Maximum Flow Rate	40 L/min	Minimum Operating Temperature	-4 °F
Flow Rate (gpm)	10	Size	ISO 10372 standard 22.23 mm
Maximum Operating Pressure	4500 PSI

Product resources

Literature and Reference Materials

Two-stage, 4 way, Flapper and Nozzle Servovalve Catalog - SE20 Series (PDF)
