*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

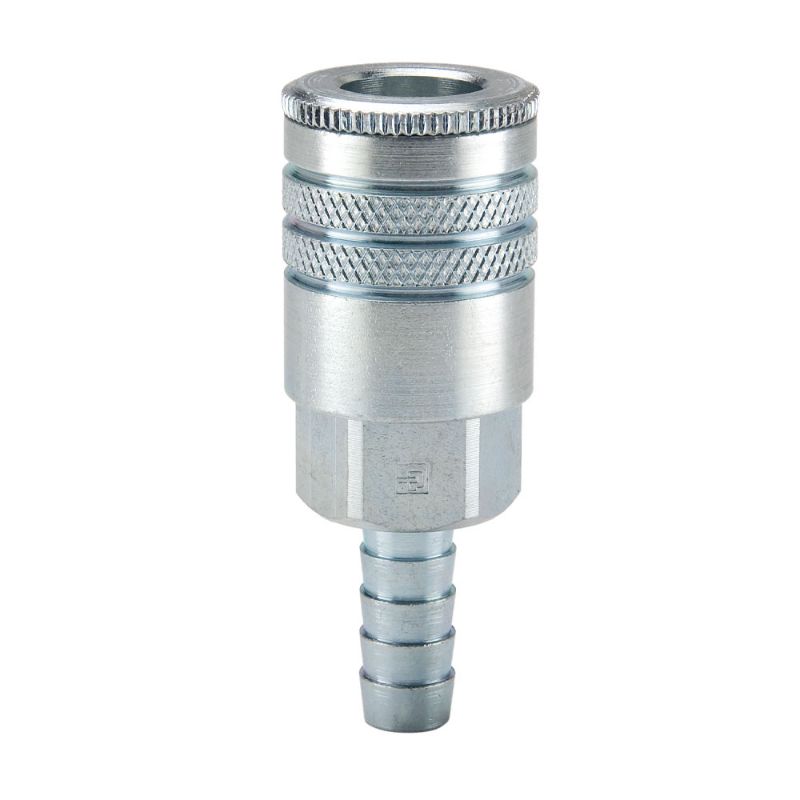

Parker 24-6B - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Name: Parker 24-6B - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series
SKU: 24-6B
Price: 39.72 USD
Availability: InStock

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:

12 In Stock

North Chesterfield, VA

Partner Available:

21 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 24-6B

$39.72/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Type	Tubular
Dimensional Weight	0.062320143884892085 lb	Coupling Half	Coupler
Media	Low pressure fluids and compressed air	Lock Type	Locking balls
Division	Quick Coupling Division	Sleeve Type	Manual
Maximum Operating Temperature	250 °F	Application	Air
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with clear trivalent chromate
Body Material	Steel	Maximum Operating Pressure	300 psi
Seal Material	Nitrile	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Body Material	Steel	Body Size (inch)	3/8
Connection Thread Size (inch)	na	Connection Type	Hose barb
Thread Style	na	Connection Hose I.D. (inch)	1/2

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
