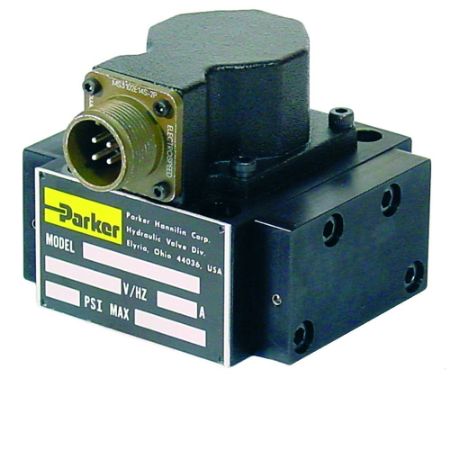

Two-stage, 4 way, Flapper and Nozzle Servovalve - SE20 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s SE20 series valve have a wide range of flow ratings and a high-performance spool and sleeve design. A special jewel feedback design enhances durability and prevents ball glitch problems, which can occur in other types of servovalves. This valve is rated for 315 Bar (4500 PSI) service with an option for 500 Bar (7250 PSI).
Markets:
• Defense
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Power Generation
Features/Benefits:
• Aluminum body
• Lapped spool and sleeve
• Medium and High performance
• Jewel feedback ball for durability
• ISO 10372 standard 22.23 mm (0.875 in.) port circle
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Defense
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Power Generation
Features/Benefits:
• Aluminum body
• Lapped spool and sleeve
• Medium and High performance
• Jewel feedback ball for durability
• ISO 10372 standard 22.23 mm (0.875 in.) port circle
Applications:
• Suitable for general hydraulic applications
| Action | Part No. | Availability | Partner Available | Price | Connection Type | Division | Maximum Operating Temperature | Resistance | Actuation Type | Pilot Port Type | Maximum Flow Rate | Additional Options | Maximum Operating Pressure | Body Material | Signal Input | Minimum Operating Temperature | Seal Material | Weight | Valve Type | Flow Rate (gpm) | Maximum Operating Pressure | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SE20HAAAANA1 | Quote Required | TBD | Port C1, (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 4 | Consult catalog for additional features | 4500 | Aluminum | High | -4 | Nitrile | 2.2 | Servovalve | 1 | 4500 PSI | ISO 10372 standard 22.23 mm | ||
| SE20HAAAANA10 | Quote Required | TBD | Port C1, (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 40 | Consult catalog for additional features | 4500 | Aluminum | High | -4 | Nitrile | 2.2 | Servovalve | 10 | 4500 PSI | ISO 10372 standard 22.23 mm | ||
| SE20HAAAANA16.5 | Quote Required | TBD | Port C1, (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 63 | Consult catalog for additional features | 315 | Aluminum | High | -4 | Nitrile | 2.2 | Servovalve | 16.5 | 4500 PSI | ISO 10372 standard 22.23 mm | ||
| SE20HAAAANA2.5 | Quote Required | TBD | Port C1, (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 10 | Consult catalog for additional features | 4500 | Aluminum | High | -4 | Nitrile | 2.2 | Servovalve | 2.5 | 4500 PSI | ISO 10372 standard 22.23 mm | ||
| SE20HAAAANA20 | Quote Required | TBD | Port C1, (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 75 | Consult catalog for additional features | 4500 | Aluminum | High | -4 | Nitrile | 2.2 | Servovalve | 20 | 4500 PSI | ISO 10372 standard 22.23 mm | ||
| SE20HAAAANA5 | Quote Required | TBD | Port C1, (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 60 | Consult catalog for additional features | 4500 | Aluminum | High | -4 | Nitrile | 2.2 | Servovalve | 5 | 4500 PSI | ISO 10372 standard 22.23 mm | ||
| SE20HAAAAVA1 | Quote Required | TBD | Port C1, (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 4 | Consult catalog for additional features | 4500 | Aluminum | High | -4 | Fluorocarbon | 2.2 | Servovalve | 1 | 4500 PSI | ISO 10372 standard 22.23 mm | ||
| SE20HAAAAVA10 | Quote Required | TBD | Port C1, (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 40 | Consult catalog for additional features | 4500 | Aluminum | High | -4 | Fluorocarbon | 2.2 | Servovalve | 10 | 4500 PSI | ISO 10372 standard 22.23 mm | ||
| SE20HAAAAVA16.5 | Quote Required | TBD | Port C1, (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 63 | Consult catalog for additional features | 4500 | Aluminum | High | -4 | Fluorocarbon | 2.2 | Servovalve | 16.5 | 4500 PSI | ISO 10372 standard 22.23 mm | ||
| SE20HAAAAVA2.5 | Quote Required | TBD | Port C1, (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 10 | Consult catalog for additional features | 315 | Aluminum | High | -4 | Fluorocarbon | 2.2 | Servovalve | 2.5 | 4500 PSI | ISO 10372 standard 22.23 mm | ||
| SE20HAAAAVA20 | Quote Required | TBD | Port C1, (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 20 | Consult catalog for additional features | 4500 | Aluminum | High | -4 | Fluorocarbon | 2.2 | Servovalve | 20 | 4500 PSI | ISO 10372 standard 22.23 mm | ||
| SE20HAAAAVA5 | Quote Required | TBD | Port C1, (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 60 | Consult catalog for additional features | 4500 | Aluminum | High | -4 | Fluorocarbon | 2.2 | Servovalve | 5 | 4500 PSI | ISO 10372 standard 22.23 mm | ||
| SE20HAAABNA1 | Quote Required | TBD | Port C2; (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 4 | Consult catalog for additional features | 315 | Aluminum | High | -4 | Nitrile | 2.2 | Servovalve | 1 | 4500 PSI | ISO 10372 standard 22.23 mm | ||
| SE20HAAABNA10 | Quote Required | TBD | Port C2; (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 40 | Consult catalog for additional features | 4500 | Aluminum | High | -4 | Nitrile | 2.2 | Servovalve | 10 | 4500 PSI | ISO 10372 standard 22.23 mm | ||
| SE20HAAABNA16.5 | Quote Required | TBD | Port C2; (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 63 | Consult catalog for additional features | 4500 | Aluminum | High | -4 | Nitrile | 2.2 | Servovalve | 16.5 | 4500 PSI | ISO 10372 standard 22.23 mm | ||
| SE20HAAABNA2.5 | Quote Required | TBD | Port C2; (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 10 | Consult catalog for additional features | 315 | Aluminum | High | -4 | Nitrile | 2.2 | Servovalve | 2.5 | 4500 PSI | ISO 10372 standard 22.23 mm | ||
| SE20HAAABNA20 | Quote Required | TBD | Port C2; (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 75 | Consult catalog for additional features | 4500 | Aluminum | High | -4 | Nitrile | 2.2 | Servovalve | 20 | 4500 PSI | ISO 10372 standard 22.23 mm | ||
| SE20HAAABNA5 | Quote Required | TBD | Port C2; (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 60 | Consult catalog for additional features | 4500 | Aluminum | High | -4 | Nitrile | 2.2 | Servovalve | 5 | 4500 PSI | ISO 10372 standard 22.23 mm | ||
| SE20HAAABVA1 | Quote Required | TBD | Port C2; (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 4 | Consult catalog for additional features | 4500 | Aluminum | High | -4 | Fluorocarbon | 2.2 | Servovalve | 1 | 4500 PSI | ISO 10372 standard 22.23 mm | ||
| SE20HAAABVA10 | Quote Required | TBD | Port C2; (+) signal to A, C | Hydraulic Valve Systems Division | +140 | 40 Ohms; 60 mA (Parallel); 30mA (Series) | Hydraulic Pressure | Internal | 40 | Consult catalog for additional features | 4500 | Aluminum | High | -4 | Fluorocarbon | 2.2 | Servovalve | 10 | 4500 PSI | ISO 10372 standard 22.23 mm |
