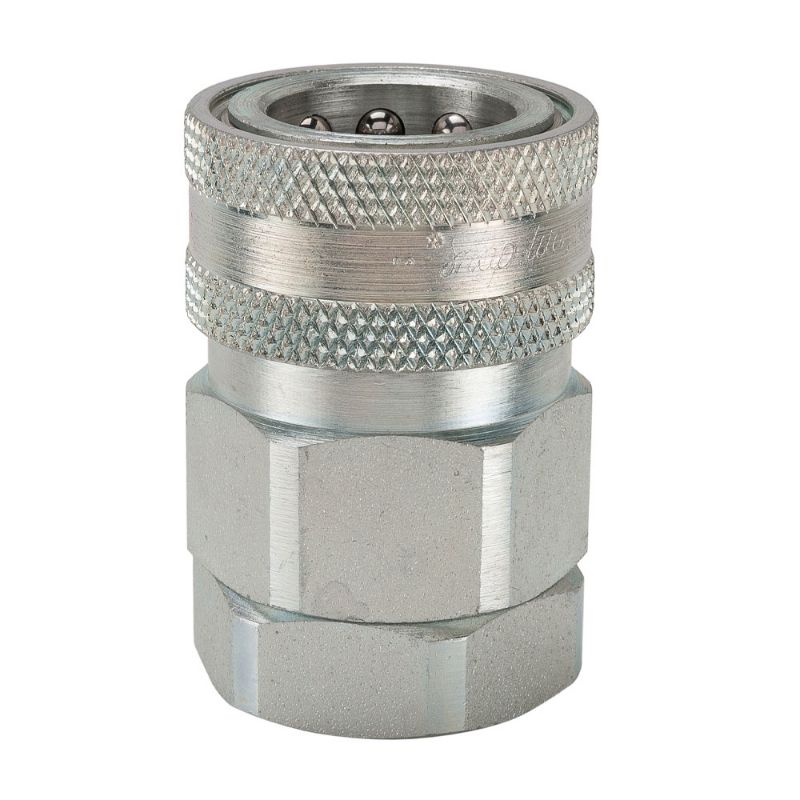

Parker VIHC8-8F - High Pressure, High Flow, Quick Connect Air Couplers - IH Series

Parker's Snap-tite, high pressure, high flow quick connect air couplers and nipples are suitable for applications where high volume air lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VIHC8-8F

$52.82/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °F
Body Material	Steel	Lock Type	Locking balls
Seal Material	Nitrile	Plating Type	Zinc with clear trivalent chromate
Application	Air	Valve Type	Tubular
Maximum Operating Pressure	4000 psi	Coupling Half	Coupler
Connection Thread Size (inch)	1/2 - 14	Thread Style	Female
Connection Type	NPTF	Body Size (inch)	1/2
Sleeve Type	Manual
