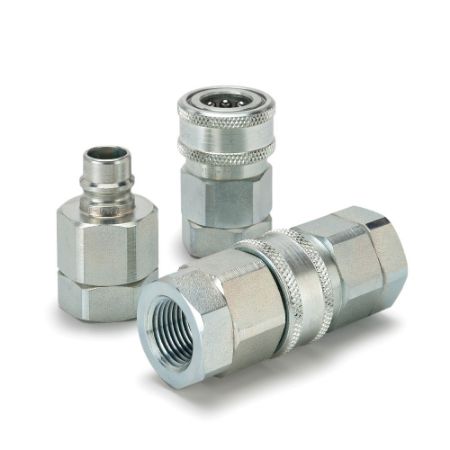

High Pressure, High Flow, Quick Connect Air Couplers - IH Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker's Snap-tite IH Series Couplers, up to 6,500 psi, connect with unvalved Snap-tite H Series Nipples to provide a single shut off connection.
Parker's Snap-tite IH Couplers have a cylindrical valve designed specifically for pneumatic, air applications. The valve provides 360 degree contact when connected with an unvalved / plain Snap-tite H Series Nipple. Couplers are available in a range of sizes and pressures up to 6,500 psi.
Technical Characteristics:
• Sizes: 1/4” – 3/4”
• Materials: Steel
• Port Ends: Female SAE, Female NPTF, Male SAE 37 degree Flare, Male NPT
• Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
Markets:
• Industrial
• Construction
Features/Benefits:
• High flow valves with minimal pressure drop for efficient performance
• Connects with Snap-tite H Series plain / unvalved nipples
• Optional sleeve-lock adds protection against accidental disconnection
Applications:
• Pneumatic tools with reciprocating, pulsating or rotary motion
• Compressed air lines
• High pressure, large volume air hand tools
Read More...Parker's Snap-tite IH Couplers have a cylindrical valve designed specifically for pneumatic, air applications. The valve provides 360 degree contact when connected with an unvalved / plain Snap-tite H Series Nipple. Couplers are available in a range of sizes and pressures up to 6,500 psi.
Technical Characteristics:
• Sizes: 1/4” – 3/4”
• Materials: Steel
• Port Ends: Female SAE, Female NPTF, Male SAE 37 degree Flare, Male NPT
• Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
Markets:
• Industrial
• Construction
Features/Benefits:
• High flow valves with minimal pressure drop for efficient performance
• Connects with Snap-tite H Series plain / unvalved nipples
• Optional sleeve-lock adds protection against accidental disconnection
Applications:
• Pneumatic tools with reciprocating, pulsating or rotary motion
• Compressed air lines
• High pressure, large volume air hand tools
| Action | Part No. | Availability | Partner Available | Price | UOM | Lock Type | Maximum Operating Temperature | Division | Application | Plating Type | Minimum Operating Temperature | Body Material | Seal Material | Maximum Operating Pressure | Valve Type | Coupling Half | Thread Style | Sleeve Type | Connection Thread Size (inch) | Connection Type | Body Size (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VIHC4-4FSL | Quote Required | $51.15/each | EA | Locking balls | 250 °F | Quick Coupling Division | Air | Zinc with clear trivalent chromate | -40 °F | Steel | Nitrile | 6500 psi | Tubular | Coupler | Female | Manual with sleeve lock | 1/4 - 18 | NPTF | 1/4 | ||
| VIHC8-8F | Quote Required | $52.82/each | EA | Locking balls | 250 °F | Quick Coupling Division | Air | Zinc with clear trivalent chromate | -40 °F | Steel | Nitrile | 4000 psi | Tubular | Coupler | Female | Manual | 1/2 - 14 | NPTF | 1/2 |
