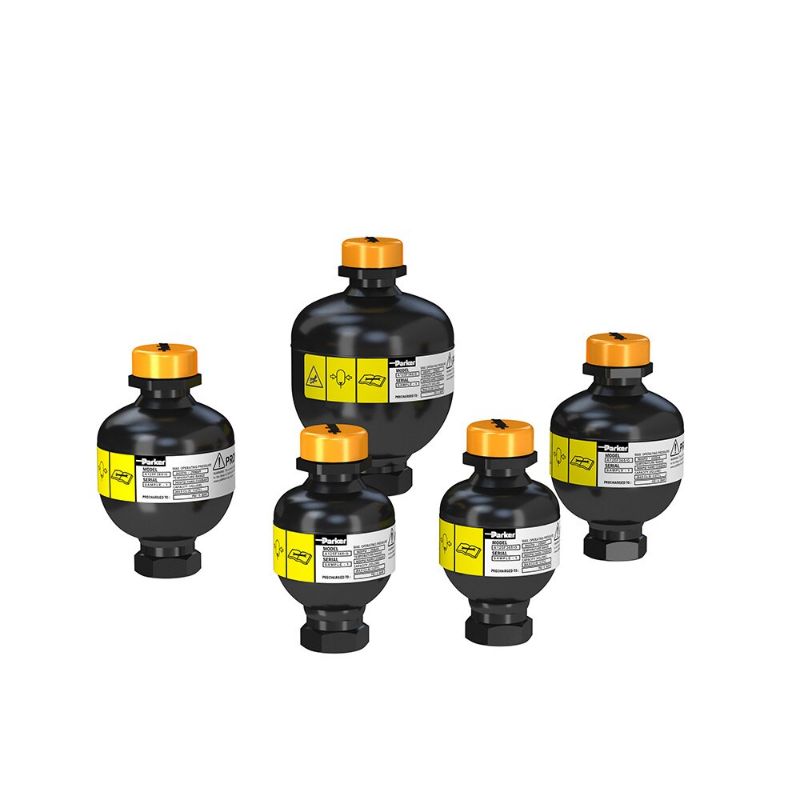

Parker AD016A25T9A1 - Diaphragm Accumulators - AD Series - (Americas)

Diaphragm accumulators provide an affordable means of storing energy under pressure, absorbing hydraulic shocks, dampening pump pulsation/flow fluctuations. They provide dependable performance in a lightweight, compact design.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AD016A25T9A1

$321.23

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3625 psi
Division	Accumulator and Cooler Division	Height	4.72 inch
Weight	2.2 lbs	Specifications Met	Consult Factory
Operating Temperature	-40 to 80 °C	Diameter	75 mm
Port Type	SAE #6 (9/16-18 UNF) Female	Gas Volume	10 inch3
Repairable	Non-Repairable	Body Material	High Strength Alloy Steel
Compression Ratio	8:1	Maximum Flow Rate	11 Gal/min
Diaphragm Material	Hydrin	Valve Type	M28x1.5 Metric Gas Valve
Nominal Volume (l)	0.16 l
