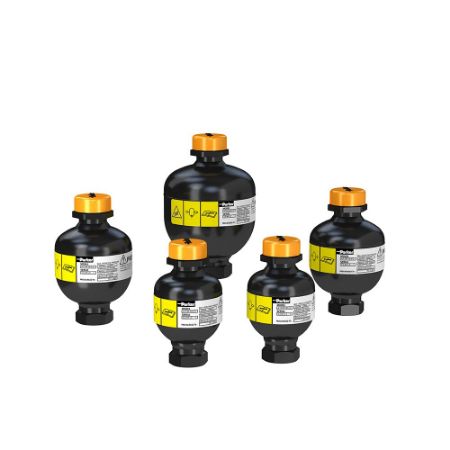

Diaphragm Accumulators - AD Series - (Americas)
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker is the leading manufacturer of accumulators in the world. Parker’s broad standard offering includes the full range of piston, bladder and diaphragm accumulators. For your convenience, Parker offers the premier accumulator sizing technology with its inPHorm Accumulator Sizing and Selection Software.
Markets:
• Aerial Lift Equipment
• Agriculture Machinery
• Construction Equipment
• Forestry Equipment
• Mining Equipment
• Hybrid Vehicle Systems
• Material Handling Equipment
• Transportation
• Turf Equipment
• Vocational Equipment and Special Use Work Vehicles
• Hydraulic Power Units (HPU)
• Lubrication Systems
• Plastics Machinery
• Injection Molding Equipment
• Rubber Molding Equipment
Features/Benefits:
• Operating Pressures up to 250 bar (3625 psi)
• Capacities from .075 to 2.80 Liters (5 to 170 cu in)
• Compact and Lightweight
• Welded, Non-Repairable Design offers great tolerance to environmental contamination
• Hydrin Diaphragms
• US and Metric Gas Valve options
• Affordable design
• Good response characteristics
• Works well with water and low lubricity fluids
Applications:
• Shock Absorption
• Auxiliary Power
• Supplemental Flow
• Noise Attenuation
• Energy Conservation
• Thermal Expansion
• Emergency Power
• Leakage Compensation
Read More...Markets:
• Aerial Lift Equipment
• Agriculture Machinery
• Construction Equipment
• Forestry Equipment
• Mining Equipment
• Hybrid Vehicle Systems
• Material Handling Equipment
• Transportation
• Turf Equipment
• Vocational Equipment and Special Use Work Vehicles
• Hydraulic Power Units (HPU)
• Lubrication Systems
• Plastics Machinery
• Injection Molding Equipment
• Rubber Molding Equipment
Features/Benefits:
• Operating Pressures up to 250 bar (3625 psi)
• Capacities from .075 to 2.80 Liters (5 to 170 cu in)
• Compact and Lightweight
• Welded, Non-Repairable Design offers great tolerance to environmental contamination
• Hydrin Diaphragms
• US and Metric Gas Valve options
• Affordable design
• Good response characteristics
• Works well with water and low lubricity fluids
Applications:
• Shock Absorption
• Auxiliary Power
• Supplemental Flow
• Noise Attenuation
• Energy Conservation
• Thermal Expansion
• Emergency Power
• Leakage Compensation
| Action | Part No. | Availability | Partner Available | Price | UOM | Maximum Operating Pressure | Division | Height | Weight | Specifications Met | Operating Temperature | Diameter | Port Type | Gas Volume | Repairable | Body Material | Compression Ratio | Maximum Flow Rate | Diaphragm Material | Valve Type | Nominal Volume (l) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AD007A25T9A1 | Quote Required | TBD | 3625 psi | Accumulator and Cooler Division | 4.37 inch | 1.8 lbs | Consult Factory | -40 to 80 °C | 2.52 inch | SAE #6 (9/16-18 UNF) Female | 5 inch3 | Non-Repairable | High Strength Alloy Steel | 8:1 | 40 L/min | Hydrin | M28x1.5 Metric Gas Valve | 0.07 l | |||
| AD007B25T9A1 | Quote Required | TBD | 250 bar | Accumulator and Cooler Division | 111 mm | 1.8 lbs | Consult Factory | -40 to 80 °C | 2.52 inch | SAE #6 (9/16-18 UNF) Female | 5 inch3 | Non-Repairable | High Strength Alloy Steel | 8:1 | 40 L/min | Hydrin | US Style Gas Valve (ISO 4570-8VI) | 0.07 l | |||
| AD016A25T9A1 | Quote Required | $321.23 | EA | 3625 psi | Accumulator and Cooler Division | 4.72 inch | 2.2 lbs | Consult Factory | -40 to 80 °C | 75 mm | SAE #6 (9/16-18 UNF) Female | 10 inch3 | Non-Repairable | High Strength Alloy Steel | 8:1 | 11 Gal/min | Hydrin | M28x1.5 Metric Gas Valve | 0.16 l | ||
| AD016B25T9A1 | Quote Required | 4 In Stock | $443.55 | EA | 3625 psi | Accumulator and Cooler Division | 4.72 inch | 1 kg | Consult Factory | -40 to 80 °C | 75 mm | SAE #6 (9/16-18 UNF) Female | 0.16 L | Non-Repairable | High Strength Alloy Steel | 8:1 | 11 Gal/min | Hydrin | US Style Gas Valve (ISO 4570-8VI) | 0.16 l | |
| AD032A21T9A1 | Quote Required | $355.20 | EA | 3000 psi | Accumulator and Cooler Division | 5.55 inch | 4 lbs | Consult Factory | -40 to 176 °F | 3.74 inch | SAE #8 (3/4-16 UNF) Female | 20 inch3 | Non-Repairable | High Strength Alloy Steel | 8:1 | 100 L/min | Hydrin | M28x1.5 Metric Gas Valve | 0.32 l | ||
| AD032B21T9A1 | Quote Required | TBD | 3000 psi | Accumulator and Cooler Division | 5.55 inch | 1.8 kg | Consult Factory | -40 to 176 °F | 95 mm | SAE #8 (3/4-16 UNF) Female | 20 inch3 | Non-Repairable | High Strength Alloy Steel | 8:1 | 26 Gal/min | Hydrin | US Style Gas Valve (ISO 4570-8VI) | 0.32 l | |||
| AD050A21T9A1 | Quote Required | TBD | 210 bar | Accumulator and Cooler Division | 5.94 inch | 2.1 kg | Consult Factory | -40 to 80 °C | 4.20 inch | SAE #8 (3/4-16 UNF) Female | 30 inch3 | Non-Repairable | High Strength Alloy Steel | 8:1 | 100 L/min | Hydrin | M28x1.5 Metric Gas Valve | 0.50 l | |||
| AD050B21T9A1 | Quote Required | $531.11 | EA | 210 | Accumulator and Cooler Division | 151 | 2.1 | Consult Factory | -40 to 80 | 107 | SAE #8 (3/4-16 UNF) Female | 0.5 | Non-Repairable | High Strength Alloy Steel | 8:1 | 100 | Hydrin | US Style Gas Valve (ISO 4570-8VI) | 0.50 l | ||
| AD075A25T9A1 | Quote Required | $524.29 | EA | 250 bar | Accumulator and Cooler Division | 169 mm | 6.6 lbs | Consult Factory | -40 to 80 °C | 4.87 inch | SAE #8 (3/4-16 UNF) Female | 45 inch3 | Non-Repairable | High Strength Alloy Steel | 8:1 | 100 L/min | Hydrin | M28x1.5 Metric Gas Valve | 0.75 l | ||
| AD075B25T9A1 | Quote Required | $646.69 | EA | 250 | Accumulator and Cooler Division | 169 | 3.0 | Consult Factory | -40 to 80 | 124 | SAE #8 (3/4-16 UNF) Female | 0.75 | Non-Repairable | High Strength Alloy Steel | 8:1 | 100 | Hydrin | US Style Gas Valve (ISO 4570-8VI) | 0.75 l | ||
| AD100A21T9A1 | Quote Required | $670.43 | EA | 210 bar | Accumulator and Cooler Division | 7.09 inch | 8.8 lbs | Consult Factory | -40 to 80 °C | 5.36 inch | SAE #8 (3/4-16 UNF) Female | 1 L | Non-Repairable | High Strength Alloy Steel | 8:1 | 26 Gal/min | Hydrin | M28x1.5 Metric Gas Valve | 1.00 l | ||
| AD100B21T9A1 | Quote Required | $792.83 | EA | 210 bar | Accumulator and Cooler Division | 180 mm | 8.8 lbs | Consult Factory | -40 to 80 °C | 5.36 inch | SAE #8 (3/4-16 UNF) Female | 1 L | Non-Repairable | High Strength Alloy Steel | 8:1 | 26 Gal/min | Hydrin | US Style Gas Valve (ISO 4570-8VI) | 1.00 l | ||
| AD140A25T9A1 | Quote Required | $788.59 | EA | 250 bar | Accumulator and Cooler Division | 7.80 inch | 6 kg | CE (for others consult factory) | -40 to 80 °C | 6.10 inch | SAE #8 (3/4-16 UNF) Female | 85 inch3 | Non-Repairable | High Strength Alloy Steel | 8:1 | 26 Gal/min | Hydrin | M28x1.5 Metric Gas Valve | 1.40 l | ||
| AD140B25T9A1 | Quote Required | TBD | 250 | Accumulator and Cooler Division | 198 | 6 | CE (for others consult factory) | -40 to 80 | 155 | SAE #8 (3/4-16 UNF) Female | 1.4 | Non-Repairable | High Strength Alloy Steel | 8:1 | 100 | Hydrin | US Style Gas Valve (ISO 4570-8VI) | 1.40 l | |||
| AD200A25T9A1 | Quote Required | $1,002.71 | EA | 250 bar | Accumulator and Cooler Division | 9.88 inch | 7.5 kg | CE (for others consult factory) | -40 to 176 °F | 6.10 inch | SAE #8 (3/4-16 UNF) Female | 2 L | Non-Repairable | High Strength Alloy Steel | 4:1 | 160 L/min | Hydrin | M28x1.5 Metric Gas Valve | 2.00 l | ||
| AD200B25T9A1 | Quote Required | $1,125.04 | EA | 3625 psi | Accumulator and Cooler Division | 9.88 inch | 17 lbs | CE (for others consult factory) | -40 to 80 °C | 155 mm | SAE #8 (3/4-16 UNF) Female | 120 inch3 | Non-Repairable | High Strength Alloy Steel | 4:1 | 42 Gal/min | Hydrin | US Style Gas Valve (ISO 4570-8VI) | 2.00 l | ||
| AD280A25T9A1 | Quote Required | TBD | 250 | Accumulator and Cooler Division | 268 | 10.0 | CE (for others consult factory) | -40 to 80 | 174 | SAE #8 (3/4-16 UNF) Female | 2.8 | Non-Repairable | High Strength Alloy Steel | 4:1 | 160 | Hydrin | M28x1.5 Metric Gas Valve | 2.80 l | |||
| AD280B25T9A1 | Quote Required | TBD | 250 bar | Accumulator and Cooler Division | 268 mm | 10.0 kg | CE (for others consult factory) | -40 to 176 °F | 6.85 inch | SAE #8 (3/4-16 UNF) Female | 2.8 L | Non-Repairable | High Strength Alloy Steel | 4:1 | 160 L/min | Hydrin | US Style Gas Valve (ISO 4570-8VI) | 2.80 l |
