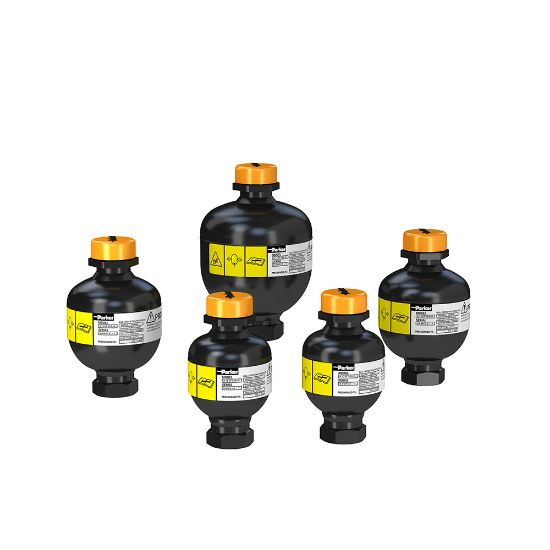

Parker AD032A21T9A1 - Diaphragm Accumulators - AD Series - (Americas)

Diaphragm accumulators provide an affordable means of storing energy under pressure, absorbing hydraulic shocks, dampening pump pulsation/flow fluctuations. They provide dependable performance in a lightweight, compact design.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AD032A21T9A1

$355.20

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	High Strength Alloy Steel
Port Type	SAE #8 (3/4-16 UNF) Female	Division	Accumulator and Cooler Division
Weight	4 lbs	Maximum Flow Rate	100 L/min
Gas Volume	20 inch3	Specifications Met	Consult Factory
Compression Ratio	8:1	Operating Temperature	-40 to 176 °F
Repairable	Non-Repairable	Height	5.55 inch
Diameter	3.74 inch	Maximum Operating Pressure	3000 psi
Diaphragm Material	Hydrin	Nominal Volume (l)	0.32 l
Valve Type	M28x1.5 Metric Gas Valve
