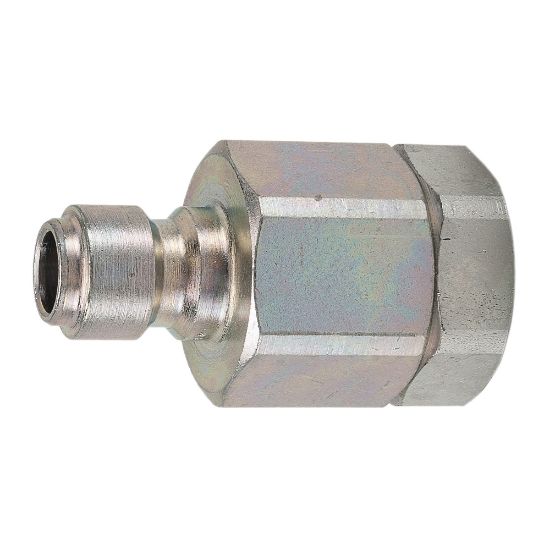

Parker VEAN4-4F - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VEAN4-4F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Valve Type	Poppet	Vacuum Pressure Rating	1/4 Inch-Hg
Product Type	Manual Connect	Division	Quick Coupling Division
Plating Type	Zinc with clear trivalent chromate	Hex Size	0.88 inch
Application	Vacuum and medium pressure hydraulics	Minimum Operating Temperature	-40 °F
Body Material	Steel	Body Material	Steel
Maximum Operating Pressure	3000	Coupling Half	Male Nipple
Body Size (inch)	1/4	Connection Thread Size (inch)	1/4 - 18
Connection Type	Female NPTF

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
