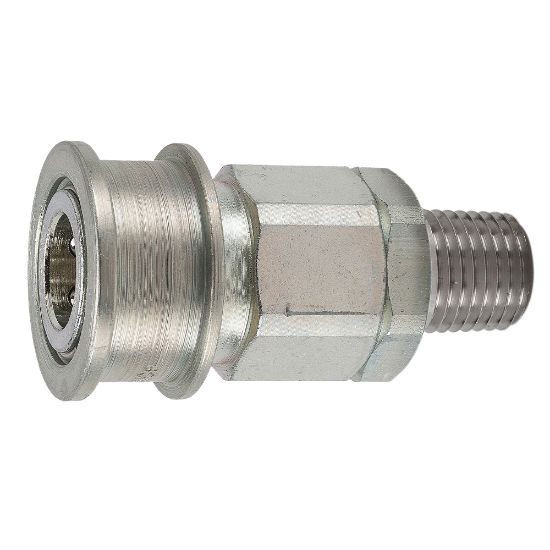

Parker VEAC4-4M - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VEAC4-4M

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Temperature	250 °F	Valve Type	Poppet
Product Type	Manual Connect	Vacuum Pressure Rating	29.7 Inch-Hg
Hex Size	0.88 inch	Application	Vacuum and medium pressure hydraulics
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °F
Body Material	Steel	Connection Type	Male NPTF
Coupling Half	Female Coupler	Body Material	Steel
Connection Thread Size (inch)	1/4 - 18	Maximum Operating Pressure	3000
Body Size (inch)	1/4

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
