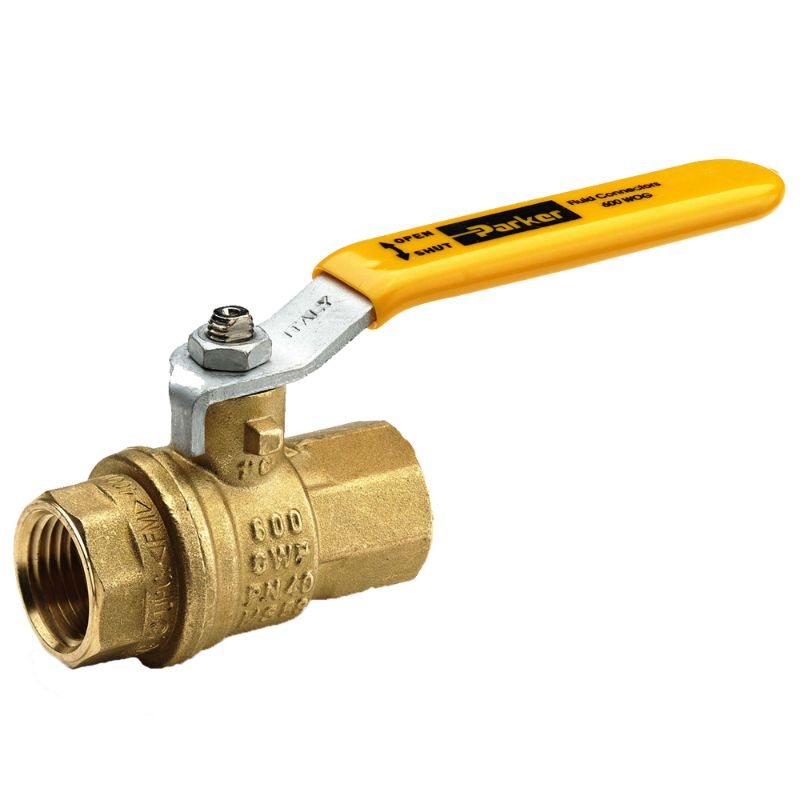

Parker V520P-4 - Industrial Brass Ball Valves

Name: Parker V520P-4 - Industrial Brass Ball Valves
SKU: V520P-4
Price: 20.65 USD
Availability: InStock

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

AFP Availability:

35 In Stock

Summerville, SC	10
North Chesterfield, VA	6
East Knoxville, TN	6
West Knoxville, TN	5
Richmond, VA	4 (Pickup only)
Ashland, VA	2 (Pickup only)
Johnson City, TN	2 (Pickup only)

Partner Available:

292 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. V520P-4

$20.65/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Brass
Mounting Type	Panel, In-Line	Maximum Flow Rate	n/a
Operation Type	n/a	Ball Material	Chrome Plated Brass
Orifice Size	.31	Actuation Type	Manual
Product Type	Brass Series 520 Ball Valve	Shape	In-Line
Minimum Operating Temperature	-40	Connection Size	1/4
Seal Material	PTFE	Maximum Operating Pressure	41
Maximum Operating Temperature	350	Connection Type	NPT, Straight Thread Solder
Division	Fluid System Connectors Division	Handle Type	Lever
Function	2-Way, Normally Closed, Normally Open	Seat Material	PTFE
Configuration	Female-Female NPT Ports	Connection 2 Thread Size (inch)	1/4
Maximum Working Pressure (psi)	600	Vented	No
Connection 2 Solder O.D. (inch)	na	Locking Mechanism	Non-Locking
Connection 1 Thread Size (inch)	1/4	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Shape	In Line
Connection 1 Solder O.D. (inch)	na	Handle	Steel Lever
Style	Female to Female (Standard Port)
