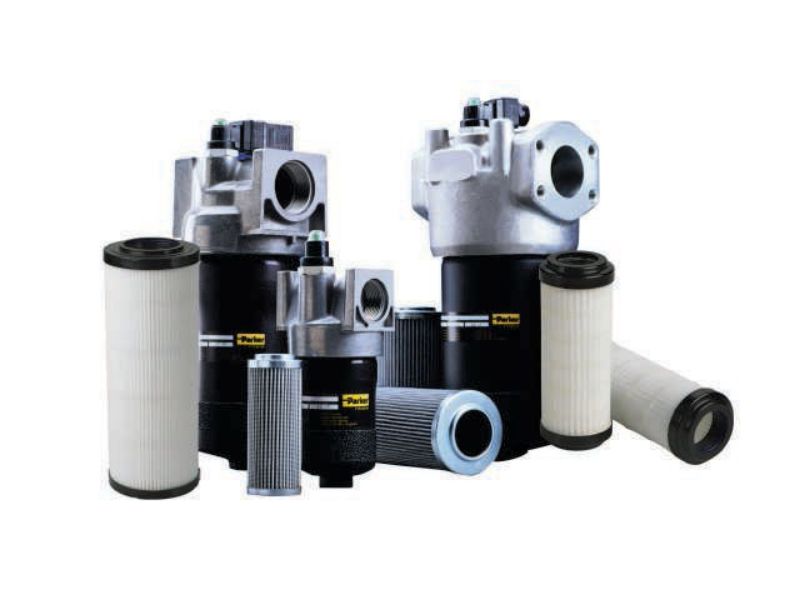

Parker 80CN210QEVM2GN244 - 80CN Series Medium Pressure Filter

80CN Series Hydraulic and Lube Oil Medium Pressure Filter

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 80CN210QEVM2GN244

$961.67

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pkg Qty	1	Nominal Filter Rating	10 micron
Bypass	25 PSI (1.7 bar)	Indicator Type	Visual - Automatic Reset
Max Pressure - Non-Fatigue MAOP	1000 psi (69 bar)	Options	SAE-4 drain port on bowl
Max Pressure - Fatigue MAOP	800 psi (55.2 bar)	Operating Temperature	-15F to 250F (-26C to 121C)
Seals	Fluorocarbon	Element Length	Double
Port	1 1/2 NPT	Nominal Flow Rating	70 GPM (265 LPM)
Replacement Element	936718Q	Parker Group	Filtration
Parker Division	Hydraulic Filter	Nominal Filter Micron Rating	10 micron
Port Type	NPT	Bypass	25 PSI (1.7 bar)
Filter Type	Medium Pressure Filter	Filter Media Type	Ecoglass III
Indicator Type	Visual - Automatic Reset	Max Pressure - Non-Fatigue MAOP	1000 PSI (69 bar)
Options	SAE-4 drain port on bowl	Max Pressure - Fatigue MAOP	800 PSI (55.2 bar)
Operating Temperature	-15F to 250F (-26C to 121C)	Filter Media Code	10QE
Seals	Fluorocarbon	Element Length	Double
Port	1 1/2 NPT	Series	80CN
Nominal Flow Rating	70 GPM (265 LPM)

Product resources

CN Series (PDF)
