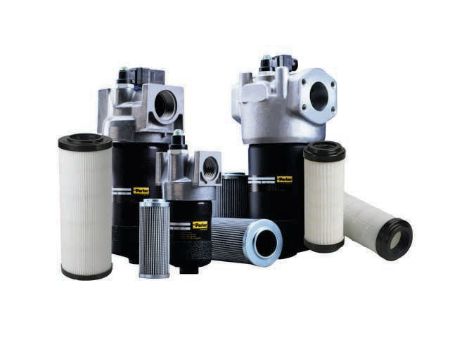

80CN Series Medium Pressure Filter
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
80CN Series Hydraulic and Lube Oil Medium Pressure Filter
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | Seals | Nominal Filter Rating | Max Pressure - Non-Fatigue MAOP | Element Length | Port | Options | Bypass | Pkg Qty | Max Pressure - Fatigue MAOP | Nominal Flow Rating | Operating Temperature | Indicator Type | Replacement Element | Max Pressure - Fatigue MAOP | Operating Temperature | Port Type | Filter Type | Indicator Type | Parker Group | Port | Filter Media Code | Seals | Nominal Filter Micron Rating | Max Pressure - Non-Fatigue MAOP | Element Length | Nominal Flow Rating | Series | Parker Division | Filter Media Type | Options | Bypass |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80CN102QEBE2GN2421 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 1 1/2 NPT | No bypass and drain port | 25 PSI (1.7 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | Medium Pressure Filter | Electrical/Visual (DIN-43650 Connection) | Filtration | 1 1/2 NPT | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | No bypass and drain port | 25 PSI (1.7 bar) | ||
| 80CN102QEBE2GN244 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 1 1/2 NPT | SAE-4 drain port on bowl | 25 PSI (1.7 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | Medium Pressure Filter | Electrical/Visual (DIN-43650 Connection) | Filtration | 1 1/2 NPT | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | SAE-4 drain port on bowl | 25 PSI (1.7 bar) | ||
| 80CN102QEBE2GN3221 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 2 NPT | No bypass and drain port | 25 PSI (1.7 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | Medium Pressure Filter | Electrical/Visual (DIN-43650 Connection) | Filtration | 2 NPT | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | No bypass and drain port | 25 PSI (1.7 bar) | ||
| 80CN102QEBE2GN324 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 2 NPT | SAE-4 drain port on bowl | 25 PSI (1.7 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | Medium Pressure Filter | Electrical/Visual (DIN-43650 Connection) | Filtration | 2 NPT | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | SAE-4 drain port on bowl | 25 PSI (1.7 bar) | ||
| 80CN102QEBE2GS2421 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 24 SAE | No bypass and drain port | 25 PSI (1.7 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | SAE | Medium Pressure Filter | Electrical/Visual (DIN-43650 Connection) | Filtration | 24 SAE | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | No bypass and drain port | 25 PSI (1.7 bar) | ||
| 80CN102QEBE2GS244 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 24 SAE | SAE-4 drain port on bowl | 25 PSI (1.7 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | SAE | Medium Pressure Filter | Electrical/Visual (DIN-43650 Connection) | Filtration | 24 SAE | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | SAE-4 drain port on bowl | 25 PSI (1.7 bar) | ||
| 80CN102QEBE2GS3221 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 32 SAE | No bypass and drain port | 25 PSI (1.7 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | SAE | Medium Pressure Filter | Electrical/Visual (DIN-43650 Connection) | Filtration | 32 SAE | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | No bypass and drain port | 25 PSI (1.7 bar) | ||
| 80CN102QEBE2GS324 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 32 SAE | SAE-4 drain port on bowl | 25 PSI (1.7 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | SAE | Medium Pressure Filter | Electrical/Visual (DIN-43650 Connection) | Filtration | 32 SAE | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | SAE-4 drain port on bowl | 25 PSI (1.7 bar) | ||
| 80CN102QEBE2GY3221 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 2 Flange face - SAE Code 61 | No bypass and drain port | 25 PSI (1.7 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | Flange face - SAE Code 61 | Medium Pressure Filter | Electrical/Visual (DIN-43650 Connection) | Filtration | 2 Flange face - SAE Code 61 | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | No bypass and drain port | 25 PSI (1.7 bar) | ||
| 80CN102QEBE2GY324 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 2 Flange face - SAE Code 61 | SAE-4 drain port on bowl | 25 PSI (1.7 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | Flange face - SAE Code 61 | Medium Pressure Filter | Electrical/Visual (DIN-43650 Connection) | Filtration | 2 Flange face - SAE Code 61 | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | SAE-4 drain port on bowl | 25 PSI (1.7 bar) | ||
| 80CN102QEBE2KN2421 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 1 1/2 NPT | No bypass and drain port | 50 PSI (3.5 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | Medium Pressure Filter | Electrical/Visual (DIN-43650 Connection) | Filtration | 1 1/2 NPT | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | No bypass and drain port | 50 PSI (3.5 bar) | ||
| 80CN102QEBE2KN244 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 1 1/2 NPT | SAE-4 drain port on bowl | 50 PSI (3.5 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | Medium Pressure Filter | Electrical/Visual (DIN-43650 Connection) | Filtration | 1 1/2 NPT | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | SAE-4 drain port on bowl | 50 PSI (3.5 bar) | ||
| 80CN102QEBE2KN3221 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 2 NPT | No bypass and drain port | 50 PSI (3.5 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | Medium Pressure Filter | Electrical/Visual (DIN-43650 Connection) | Filtration | 2 NPT | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | No bypass and drain port | 50 PSI (3.5 bar) | ||
| 80CN102QEBE2KN324 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 2 NPT | SAE-4 drain port on bowl | 50 PSI (3.5 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | Medium Pressure Filter | Electrical/Visual (DIN-43650 Connection) | Filtration | 2 NPT | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | SAE-4 drain port on bowl | 50 PSI (3.5 bar) | ||
| 80CN102QEBE2KS2421 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 24 SAE | No bypass and drain port | 50 PSI (3.5 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | SAE | Medium Pressure Filter | Electrical/Visual (DIN-43650 Connection) | Filtration | 24 SAE | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | No bypass and drain port | 50 PSI (3.5 bar) | ||
| 80CN102QEBE2KS3221 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 32 SAE | No bypass and drain port | 50 PSI (3.5 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | SAE | Medium Pressure Filter | Electrical/Visual (DIN-43650 Connection) | Filtration | 32 SAE | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | No bypass and drain port | 50 PSI (3.5 bar) | ||
| 80CN102QEBE2KS324 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 32 SAE | SAE-4 drain port on bowl | 50 PSI (3.5 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | SAE | Medium Pressure Filter | Electrical/Visual (DIN-43650 Connection) | Filtration | 32 SAE | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | SAE-4 drain port on bowl | 50 PSI (3.5 bar) | ||
| 80CN102QEBE2KY3221 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 2 Flange face - SAE Code 61 | No bypass and drain port | 50 PSI (3.5 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | Flange face - SAE Code 61 | Medium Pressure Filter | Electrical/Visual (DIN-43650 Connection) | Filtration | 2 Flange face - SAE Code 61 | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | No bypass and drain port | 50 PSI (3.5 bar) | ||
| 80CN102QEBE2KY324 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 2 Flange face - SAE Code 61 | SAE-4 drain port on bowl | 50 PSI (3.5 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | Flange face - SAE Code 61 | Medium Pressure Filter | Electrical/Visual (DIN-43650 Connection) | Filtration | 2 Flange face - SAE Code 61 | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | SAE-4 drain port on bowl | 50 PSI (3.5 bar) | ||
| 80CN102QEBM2GN2421 | Quote Required | TBD | EA | Nitrile | 2 micron | 1000 psi (69 bar) | Single | 1 1/2 NPT | No bypass and drain port | 25 PSI (1.7 bar) | 1 | 800 psi (55.2 bar) | 45 GPM (171 LPM) | -40F to 225F (-40C to 107C) | Visual - Automatic Reset | 936713Q | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | Medium Pressure Filter | Visual - Automatic Reset | Filtration | 1 1/2 NPT | 02QE | Nitrile | 2 micron | 1000 PSI (69 bar) | Single | 45 GPM (171 LPM) | 80CN | Hydraulic Filter | Ecoglass III | No bypass and drain port | 25 PSI (1.7 bar) |
