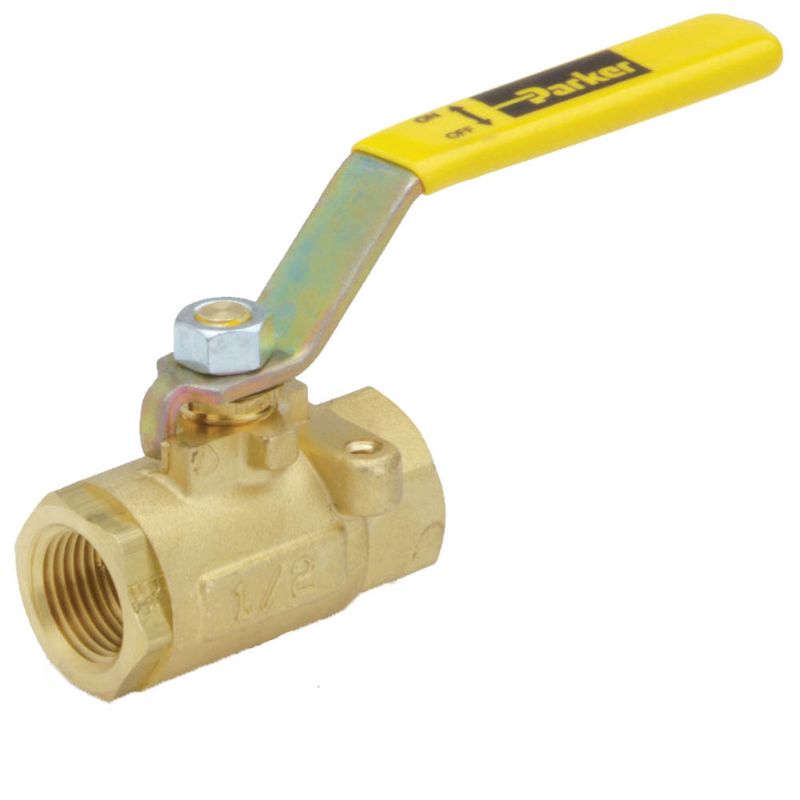

Parker V502P-6 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Quote Required
Partner Available:	17 In Stock

Brand Parker

Part No. V502P-6

$41.69

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Body Material	Brass	Minimum Operating Temperature	0
Seal Material	PTFE	Connection Size	3/8
Shape	In-Line	Actuation Type	Manual
Seat Material	PTFE	Maximum Operating Temperature	350
Handle Type	Lever	Operation Type	n/a
Orifice Size	.38	Ball Material	Chrome Plated Brass
Function	2-Way, Normally Closed, Normally Open	Maximum Flow Rate	5.8
Mounting Type	Panel, In-Line	Maximum Operating Pressure	41
Configuration	Female-Female PTF Ports	Connection Type	NPT, Straight Thread Solder
Product Type	Brass Series 502 Ball Valve	Connection 2 Thread Size (inch)	3/8
Maximum Working Pressure (psi)	600	Vented	No
Connection 1 Thread Size (inch)	3/8	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Style	Female to Female
Connection 1 Solder O.D. (inch)	na	Shape	Panel mount
Handle	Steel Lever
