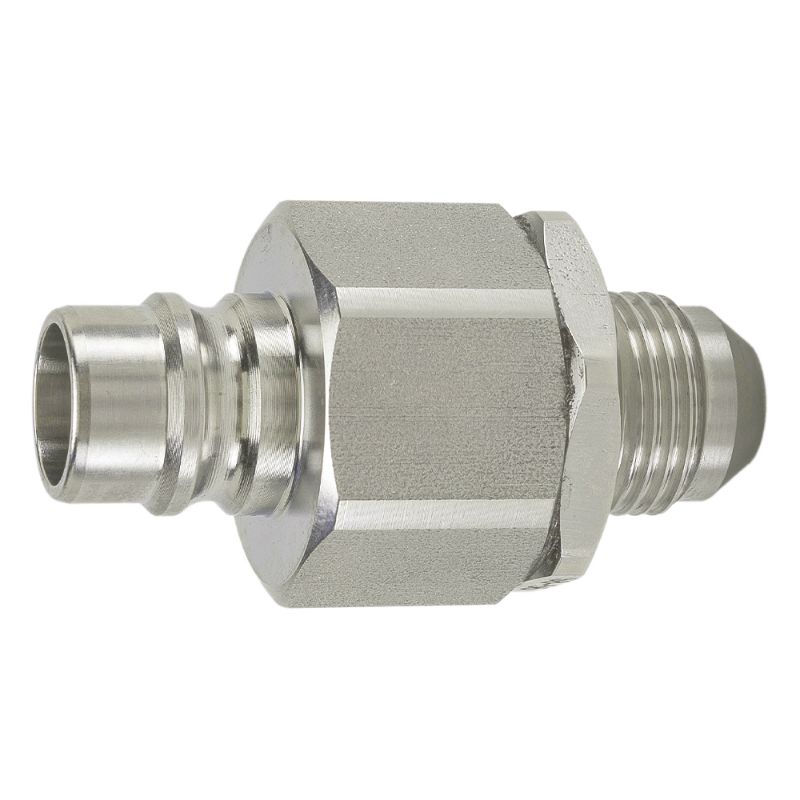

Parker VHN6-6EM - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

AFP Availability:	Quote Required
Partner Available:	10 In Stock

Brand Parker

Part No. VHN6-6EM

$36.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Application	Hydraulic, General Purpose	Plating Type	Zinc with clear trivalent chromate
Product Type	Manual Connect	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division	Valve Type	Poppet
Minimum Operating Temperature	-40 °F	Body Material	Steel
Hex Size	1.00 inch	Connection Type	Male SAE 37 degree flare
Valve Type	Poppet	Coupling Half	Male Nipple
Connection Thread Size (inch)	9/16 - 18	Maximum Operating Pressure	4500
Body Material	Steel	Body Size (inch)	3/8
