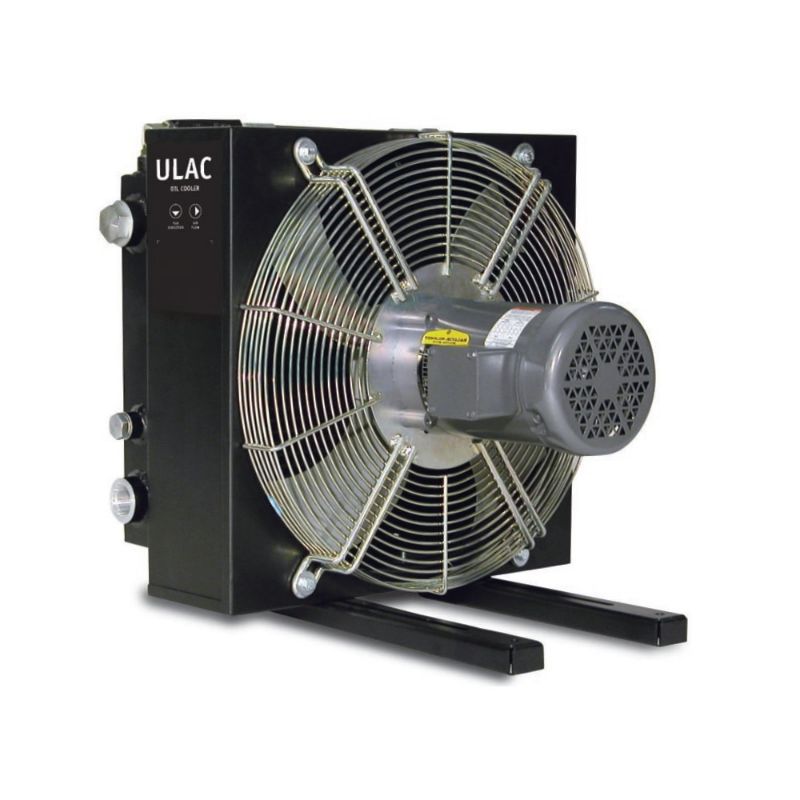

Parker ULAC-007BM-140SW - Air Oil Cooler with AC Motor - ULAC Series - (Americas)

ULAC Series industrial air oil coolers offer a compact and durable design that will provide efficient performance and long life. They provide up to 400hp of cooling and are suitable for most applications and environments.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ULAC-007BM-140SW

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	UL, CSA and CE Available on Motor	Height	15.6
Connection Thread Size	1-5/16"-12	Materials of Construction	Aluminum (Cooler Core)
Maximum Cooling Capacity	12	Motor Type	3
Motor Power Output Rating	0.5	Maximum Operating Pressure	300
For Fluid Type	Mineral Oil	Input Voltage	190/380 VAC @ 50 Hz
Noise Level	69	Length	14.4
Division	Accumulator and Cooler Division	Weight	33
Frequency	50/60	Width	19.8
Flow Rate	33	Maximum Fluid Temperature	250
Port Size	1 inch (#16)	Size	ULAC-007B
Bypass Options	None	Motor Type	Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz
Switch Option	140
