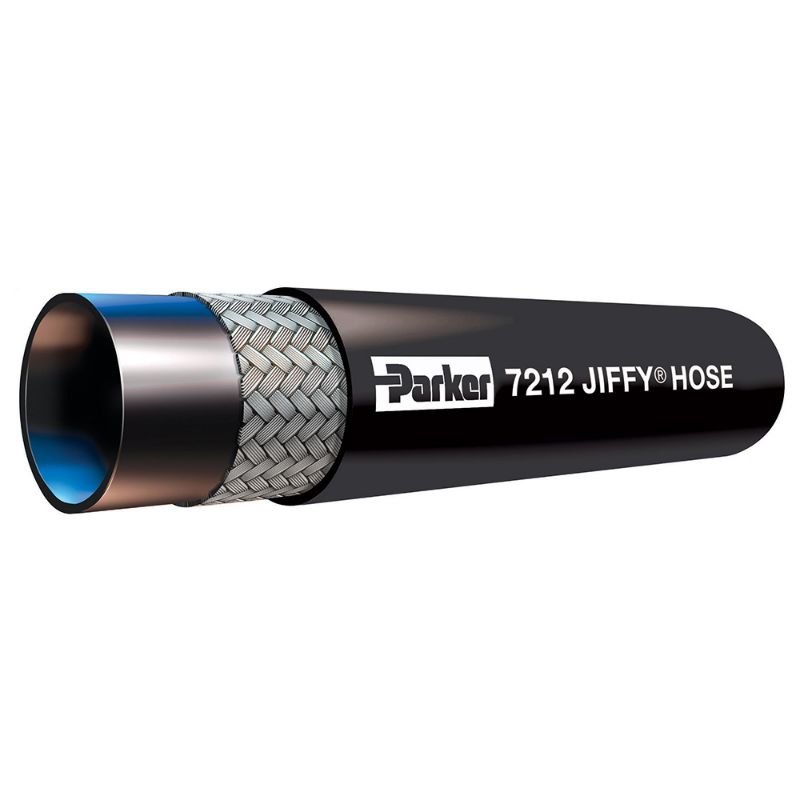

Parker 7212BL25-J100 - JIFFY™ Multipurpose Oil Resistant Push-On Hose Factory Cut Lengths, Series 7212

Jiffy Multipurpose Oil Resistant Push-On Hose Factory Cut Lengths are designed for transfer of air, fuel, mild chemicals, oil and water in applications to 212°F and 300 psi, Series 7212

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7212BL25-J100

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Air	Division	Hose Products Division
Minimum Operating Temperature	-40	Design Factor	4:1
Vacuum Pressure Rating	28	Minimum Bend Radius	3
Maximum Operating Pressure	300	Quantity per Box	5
Application	Air	Cover Color	Blue
Inside Diameter	1/4	Outside Diameter	0.500
Compatible Fitting	n/a	Hose Inner Tube Material	Black
Cover Material	Chloroprene Rubber (CR)	Hose Reinforcement Material	1 Braid of Textile
Specifications Met	MSHA	Package Type	Carton
Maximum Operating Temperature	100 °C (Other Media)	Weight	3.94
Length	30.48	Hose I.D. (inch)	1/4
Cover Color	Blue	Length (ft)	100

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
