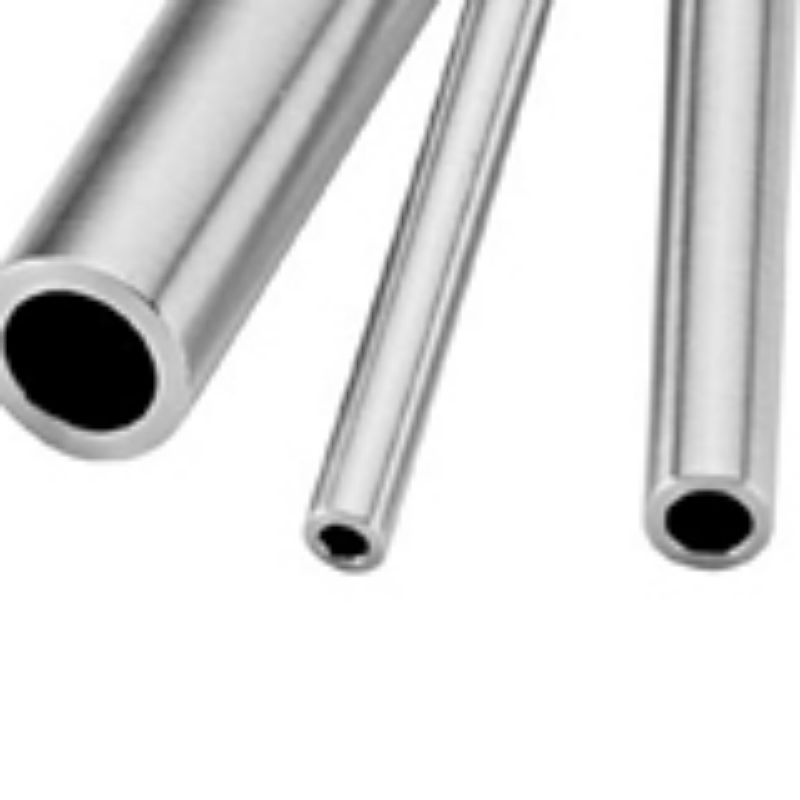

Picture of Parker 13041 - Autoclave Series Medium Pressure Tubing for QS Series Connection - 20,000 psi (1379 bar)

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 13041 - Autoclave Series Medium Pressure Tubing for QS Series Connection - 20,000 psi (1379 bar)

Parker Autoclave's medium pressure tubing is capable of operating to 20,000 psi (1379 bar) and range in size from 1/16" to 1 1/2" tube size. Standard tubing is available in cold worked stainless steel.
AFP Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 13041
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionInstrumentation Products DivisionMaterial316 Stainless Steel
Flow Area (mm2)444.88Connection TypeSF1500CX
Flow Area (inch2)0.589Maximum Tube I.D (mm)23.80 mm
Maximum Tube O.D (mm)38 mmSpecial Tool RequiredYes
Maximum Tube I.D (inch)0.937"Maximum Tube O.D (inch)1-1/2"
Tube Wall Thickness (mm)7.15 mmTube Wall Thickness (inch)0.281"
Product resources

Literature and Reference Materials

02-0142SE

02-1253BE
