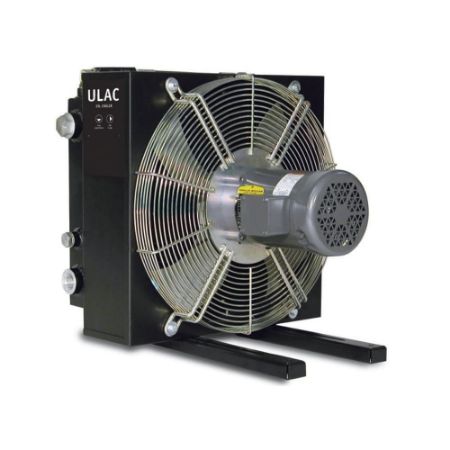

Air Oil Cooler with AC Motor - ULAC Series - (Americas)
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's ULAC Air Oil Cooler with AC Motor offers quiet fan operation, low pressure drop and high cooling system capability, ideal for industrial and marine applications. These coolers utilize a robust bar and plate construction, providing a more efficient and compact design when compared to traditional tube and fin construction. The ULAC Series features single-phase and three-phase NEMA motors, providing a wide range of available voltages and frequencies.
Markets:
• Industrial
• Marine & Offshore
• Oil & Gas
• Renewable & Wind Energy
• Power Generation
Features and Benefits:
• Up to 400hp of cooling capacity at 250gpm (70°F ETD)
• Compact design results in lighter weight, higher cooling capacity, and lower pressure drop
• Optimized design results in reliable and long-lasting cooling with low service and maintenance costs
• Quiet fan design due to optimization of blade and materials
• Wide range of UL, CSA, & CE certified AC motors available
• Extra corrosion protection available for use in marine/offshore and extreme applications
• ATEX approval for use in potentially explosive atmospheres above ground
• Several options available: Thermal switch, Pressure bypass, Air filter, Fan guard/screen, etc.
Applications:
• Hydraulic power units
• Lubrication systems
• Hydraulic presses
• Wind power
• Plastics machinery
| Action | Part No. | Availability | Partner Available | Price | Maximum Cooling Capacity | Input Voltage | Port Size | Noise Level | Weight | Maximum Fluid Temperature | Flow Rate | Specifications Met | Motor Power Output Rating | Length | Frequency | Width | Motor Type | Materials of Construction | Maximum Operating Pressure | Connection Thread Size | Height | For Fluid Type | Division | Motor Type | Bypass Options | Switch Option | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ULAC-007B-M-000-SA | Quote Required | TBD | 12 | 190/380 VAC @ 50 Hz | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 50/60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz | 20 psi Integrated Pressure Bypass | 0 | ULAC-007B | ||
| ULAC-007B-M-000-SB | Quote Required | TBD | 12 | 190/380 VAC @ 50 Hz | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 50/60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz | 65 psi Integrated Pressure Bypass | 0 | ULAC-007B | ||
| ULAC-007B-M-000-SW | Quote Required | TBD | 12 | 190/380 VAC @ 50 Hz | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 50/60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz | None | 0 | ULAC-007B | ||
| ULAC-007B-M-100-SA | Quote Required | TBD | 12 | 190/380 VAC @ 50 Hz | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 50/60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz | 20 psi Integrated Pressure Bypass | 100 | ULAC-007B | ||
| ULAC-007B-M-100-SB | Quote Required | TBD | 12 | 190/380 VAC @ 50 Hz | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 50/60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz | 65 psi Integrated Pressure Bypass | 100 | ULAC-007B | ||
| ULAC-007B-M-100-SW | Quote Required | TBD | 12 | 190/380 VAC @ 50 Hz | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 50/60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz | None | 100 | ULAC-007B | ||
| ULAC-007B-M-120-SA | Quote Required | TBD | 12 | 190/380 VAC @ 50 Hz | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 50/60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz | 20 psi Integrated Pressure Bypass | 120 | ULAC-007B | ||
| ULAC-007B-M-120-SB | Quote Required | TBD | 12 | 190/380 VAC @ 50 Hz | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 50/60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz | 65 psi Integrated Pressure Bypass | 120 | ULAC-007B | ||
| ULAC-007B-M-120-SW | Quote Required | TBD | 12 | 190/380 VAC @ 50 Hz | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 50/60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz | None | 120 | ULAC-007B | ||
| ULAC-007B-M-140-SA | Quote Required | TBD | 12 | 190/380 VAC @ 50 Hz | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 50/60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz | 20 psi Integrated Pressure Bypass | 140 | ULAC-007B | ||
| ULAC-007B-M-140-SB | Quote Required | TBD | 12 | 190/380 VAC @ 50 Hz | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 50/60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz | 65 psi Integrated Pressure Bypass | 140 | ULAC-007B | ||
| ULAC-007B-M-140-SW | Quote Required | TBD | 12 | 190/380 VAC @ 50 Hz | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 50/60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz | None | 140 | ULAC-007B | ||
| ULAC-007B-M-160-SA | Quote Required | TBD | 12 | 190/380 VAC @ 50 Hz | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 50/60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz | 20 psi Integrated Pressure Bypass | 160 | ULAC-007B | ||
| ULAC-007B-M-160-SB | Quote Required | TBD | 12 | 190/380 VAC @ 50 Hz | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 50/60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz | 65 psi Integrated Pressure Bypass | 160 | ULAC-007B | ||
| ULAC-007B-M-160-SW | Quote Required | TBD | 12 | 190/380 VAC @ 50 Hz | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 50/60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz | None | 160 | ULAC-007B | ||
| ULAC-007B-M-175-SA | Quote Required | TBD | 12 | 190/380 VAC @ 50 Hz | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 50/60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz | 20 psi Integrated Pressure Bypass | 175 | ULAC-007B | ||
| ULAC-007B-M-175-SB | Quote Required | TBD | 12 | 190/380 VAC @ 50 Hz | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 50/60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz | 65 psi Integrated Pressure Bypass | 175 | ULAC-007B | ||
| ULAC-007B-M-175-SW | Quote Required | TBD | 12 | 190/380 VAC @ 50 Hz | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 50/60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz | None | 175 | ULAC-007B | ||
| ULAC-007B-Q-000-SA | Quote Required | TBD | 12 | 575 | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 575V, 60 Hz | 20 psi Integrated Pressure Bypass | 0 | ULAC-007B | ||
| ULAC-007B-Q-000-SB | Quote Required | TBD | 12 | 575 | 1 inch (#16) | 69 | 33 | 250 | 33 | UL, CSA and CE Available on Motor | 0.5 | 14.4 | 60 | 19.8 | 3 | Aluminum (Cooler Core) | 300 | 1-5/16"-12 | 15.6 | Mineral Oil | Accumulator and Cooler Division | Three Phase, 575V, 60 Hz | 65 psi Integrated Pressure Bypass | 0 | ULAC-007B |
