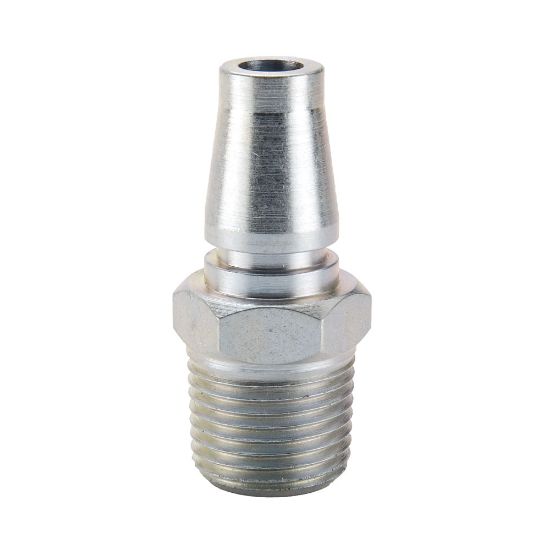

Parker TL-504-12MP - Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series

Parker's twist lock interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TL-504-12MP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Application	Pneumatic	Product Type	Push to Connect
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °F
Hex Size	1.06 inch	Interchange Type	Schrader Twist Lock
Plating Type	Zinc with clear trivalent chromate	Maximum Operating Temperature	250 °F
Body Material	Steel	Maximum Operating Pressure	300 psi
Connection Thread Size (inch)	3/4 - 14	Connection Type	Male NPTF
Valve Type	Unvalved	Coupling Half	Male Nipple
Hose I.D. (inch)	na	Body Size (inch)	1/2
