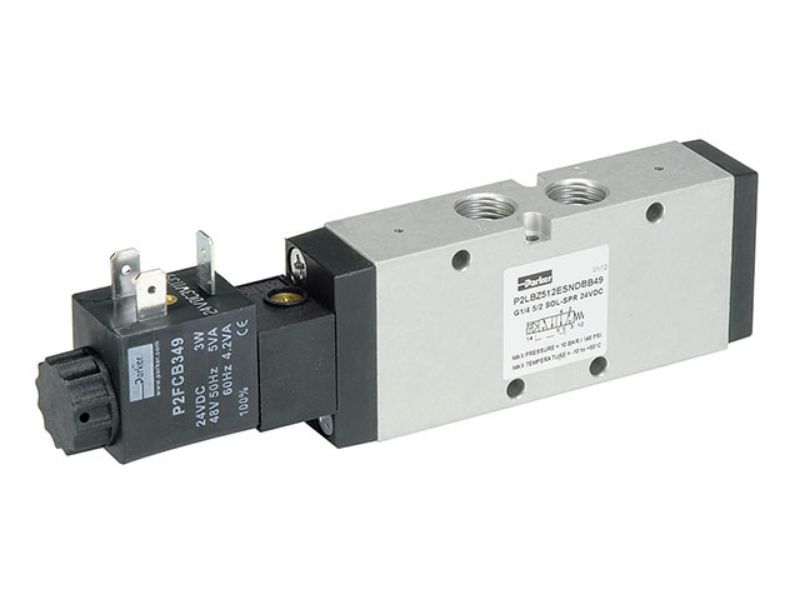

Parker P2LCZ593ESNDBB53 - Viking Lite Series Single Solenoid 4-way 2-position Valve

Name: Parker P2LCZ593ESNDBB53 - Viking Lite Series Single Solenoid 4-way 2-position Valve
SKU: P2LCZ593ESNDBB53
Price: 94.17 USD
Availability: InStock

Single Solenoid, 4-way, 2-position, Spring Return

AFP Availability:

8 In Stock

Mooresville, NC

Partner Available:

7 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. P2LCZ593ESNDBB53

$94.17/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Offset Return Type	Spring Return
Pkg Qty	1	Override Type	Non-locking
Port	3/8 NPT	Pilot Supply	Internal
Operator Type Detail	Single	UOM	EA
Solenoid Voltage	120VAC	CV Factor	2.5
Valve Positions	2-position	CV Factor	2.5
Pilot Supply	Internal	Solenoid Voltage	120VAC
Supply Pressure Range	43.5 to 145 PSIG (3 to 10 bar)	Port	3/8 NPT
Trade Name	Viking Lite	Pneumatic Valve Type	Inline Valve
Operator Type	Solenoid	Offset Return Type	Spring Return
Parker Division	Pneumatic	Port Inch/BSP	NPT
Valve Passages	4-way	Solenoid Connection	22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”)
Parker Group	Automation	Operator Type Detail	Single
Override Type	Non-locking	Series	Viking Lite
Operating Temperature	14°F to 122°F (-10°C to 50°C)
